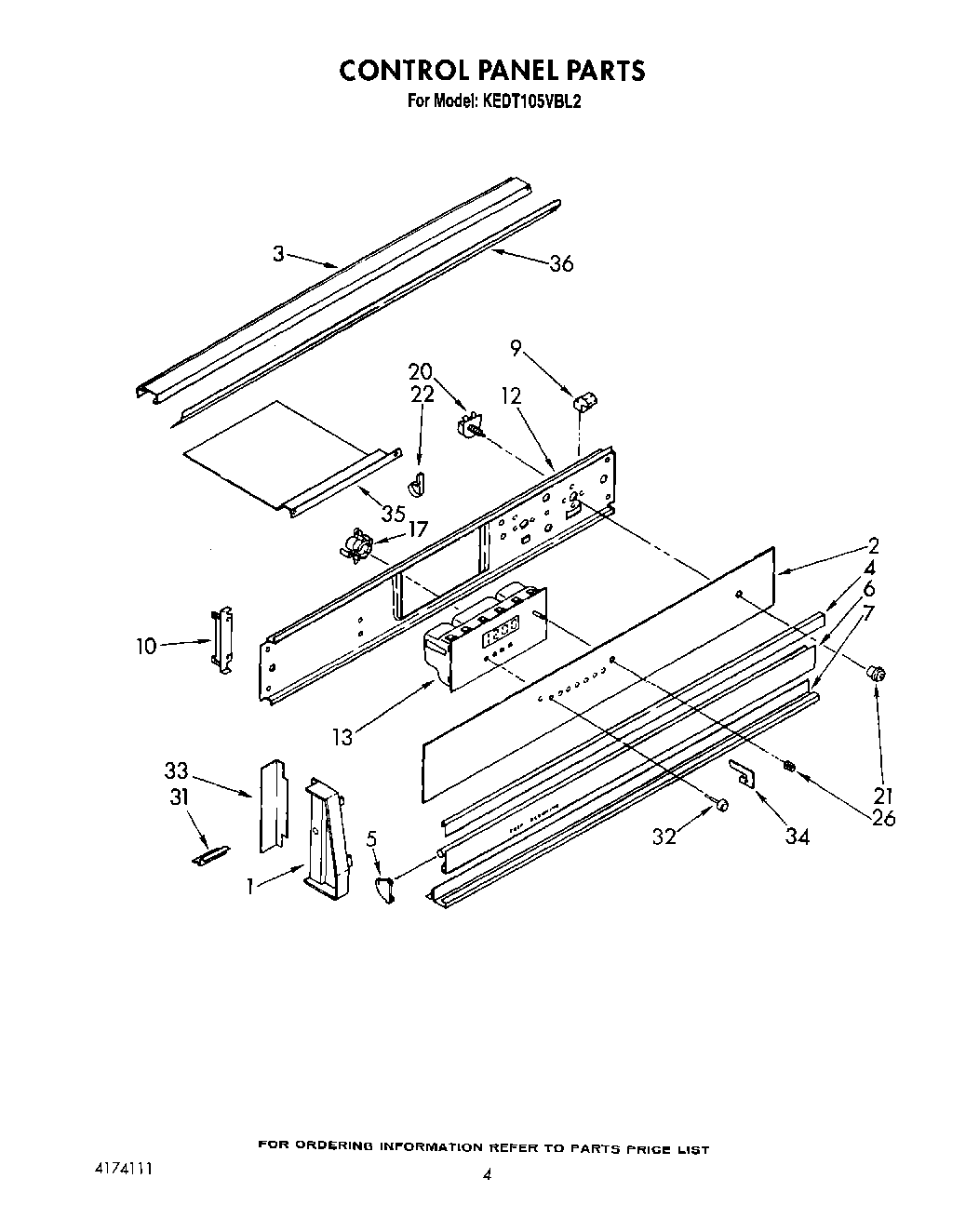

KEDT105VBL2 04 – CONTROL PANEL, OPTIONAL

Products

Position	Product
1	End Cap (Washer)
1	End Cap, L.H. (Almond)
1	End Cap, L.H. (Almond)
1	End Cap. L.H. (White)
1	End Cap, L.H. (White)
1	End Cap. L.H. (Black)
1	End Cap. L.H. (Black)
2	Glass, Control Panel (White)
2	Glass, Control Panel (Almond)
2	Glass, Control Panel (Black)
3	Rail, Top (Black)
3	Rail, Top (Bright Aluminum)
4	Trim, Center (Black)
4	Trim, Center (Bright Aluminum)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
5	Trim, Vent Door (Brite Aluminum, L.H.)
6	Door, Vent (Semi-Bright Aluminum)
6	Door, Vent
7	Screw, 10-32 x 1/2
7	Trim, Bottom
9	Retainer, Glass (4)
10	Bracket, Control Panel (2)
12	Bracket, Control
13	Oven Control
13	Screw
17	Thermostat, Oven
17	WP965173 Whirlpool Dishwasher Screw
17	WP313808 Whirlpool Screw
20	Switch, Oven Light
20	Lockwasher
20	White Model
21	Bezel, Switch (White – Almond)
21	Bezel Switch (1)
22	WP308605 Whirlpool Refrigerator Clamp
26	Kno
26	Knob, Bit Generator (White)
26	Knob, Bit Generator (Black)
31	Bracket, Control
32	WPL 3149782
32	WPL 3149781
32	WPL 3149780
33	Trim, End Cap (White)
33	Trim, End Cap (Almond)
33	Trim, End Cap (Black)
34	Shield, Air
35	Screw (2)
35	WPL 309080
35	Shield, Heat
36	WPL 3171507
36	242831 Whirlpool Oven Wire
36	Wire (14 Ga. 150 c Blue)
36	Touch-Up Oven (1 Oz.)
36	Rail, Top (Seal, Backguard)
36	Wire, 25“ Roll (White 14 GA.)
36	Wire, 25` Roll (Red 14 Ga.)
36	Wire, 25` Roll (Black 14 Ga.)
36	FOIL, ALUMINUM OVEN (18“ X 25 )
36	Wire (14 Ga. 150 c Brown)
36	Wire (14 Ga. 150 c Green)
36	Wire (14 Ga. 150 c Orange)
36	Grease
36	WPL 814128
36	Rotisserie Kit
36	1
36	Wire (14 Ga. 200 c Brown)
36	18 Ga. 80~c Rating (Red)
36	Wire (12 Ga. 150 c Black)
36	Wire (14 Ga. 150 c Yellow)
36	console
