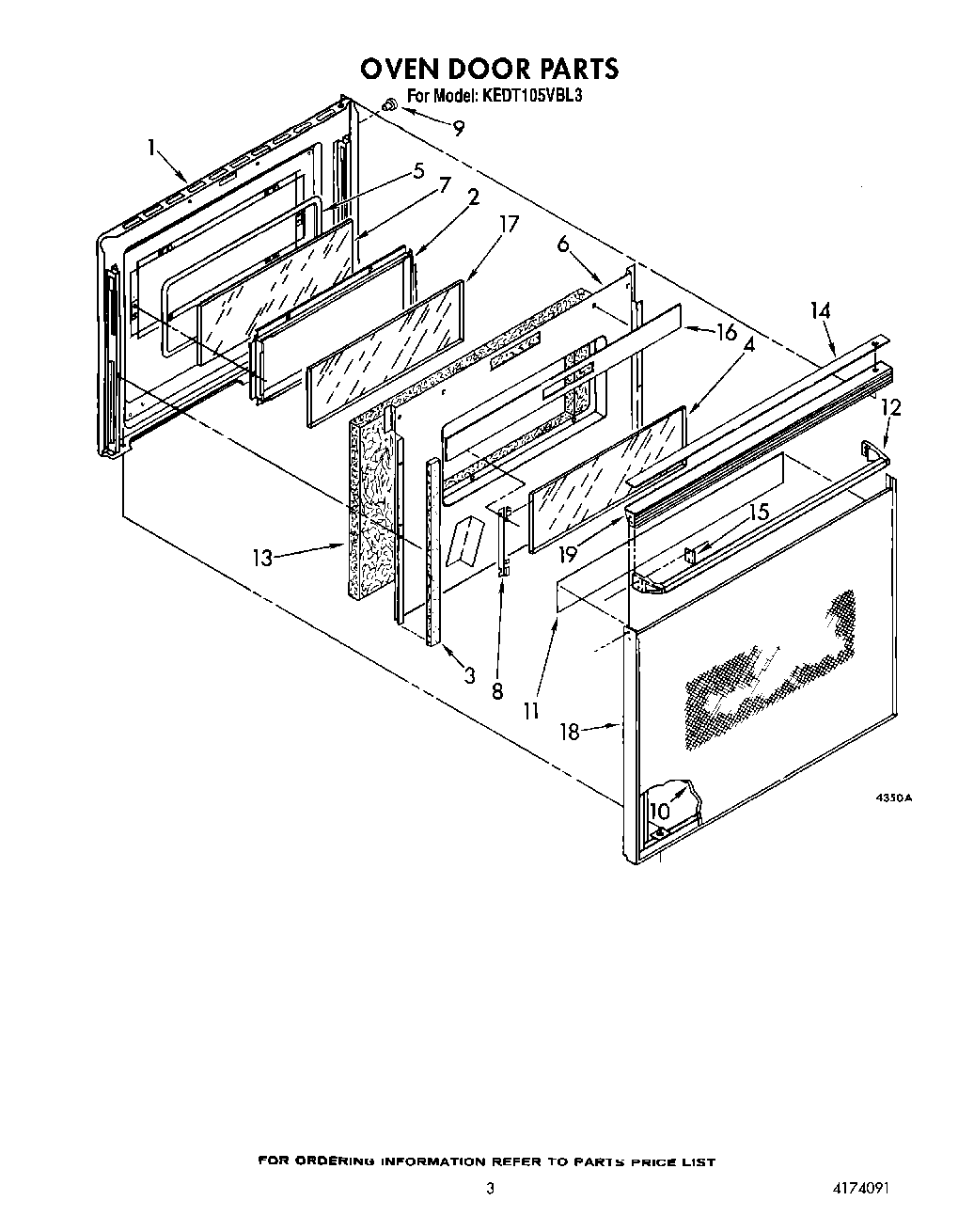

KEDT105VBL3 03 – OVEN DOORadmin2025-04-26T09:38:09+00:00KEDT105VBL3 03 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 2 | Frame, Inner |
| 3 | Screw |
| 3 | Seal, Flange (2) |
| 4 | Glass, Reflective |
| 5 | Seal, Door |
| 6 | Retainer, |
| 7 | WP3169203 Whirlpool Door Glass |
| 8 | Retainer, Glass (2) |
| 9 | Bumper (4) |
| 10 | Glass, Panel (White) |
| 10 | Glass, Panel (Black Model) |
| 10 | Glass, Panel (White Model) |
| 11 | Foil, Door |
| 12 | Handle, Oven Door (White) |
| 12 | Handle, Oven Door (Almond) |
| 12 | Handle, Oven Door |
| 13 | Insulation, Door |
| 14 | Cap, Top |
| 15 | Clip (2) |
| 16 | Sheild, Door |
| 18 | Frame, Door |
| 18 | Frame (White) |
| 18 | Frame (Almond) |
| 19 | Top, Door Frame |
| 19 | WP308685 Whirlpool Microwave Screw |
| 19 | WP355515 Whirlpool Screw |
| 19 | Door Top (Panoramic Grey) |
