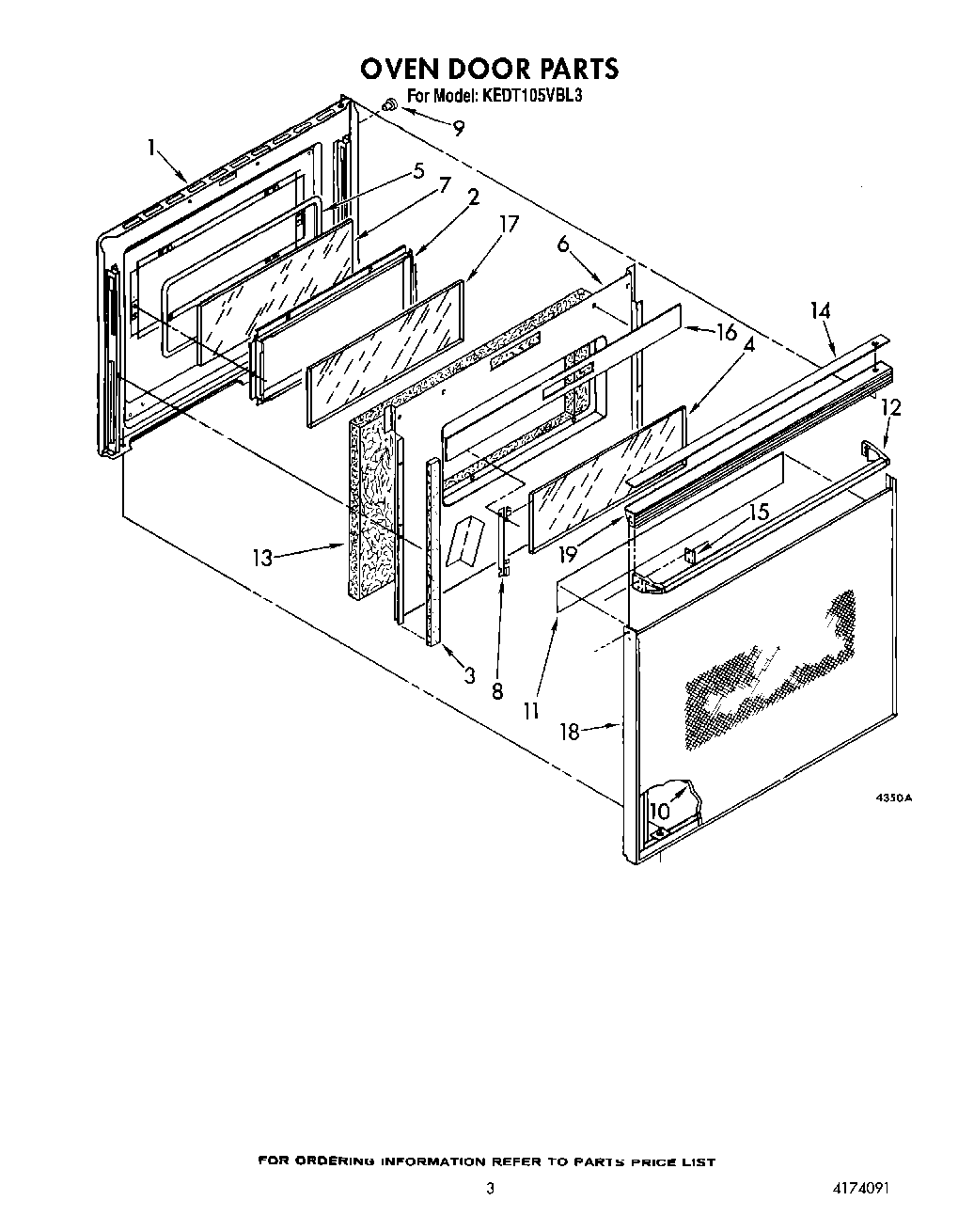

KEDT105VWH3 03 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Screw
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (White)
10	Glass, Panel (Black Model)
10	Glass, Panel (White Model)
11	Foil, Door
12	Handle, Oven Door (White)
12	Handle, Oven Door (Almond)
12	Handle, Oven Door
13	Insulation, Door
14	Cap, Top
15	Clip (2)
16	Sheild, Door
18	Frame, Door
18	Frame (White)
18	Frame (Almond)
19	Top, Door Frame
19	WP308685 Whirlpool Microwave Screw
19	WP355515 Whirlpool Screw
19	Door Top (Panoramic Grey)
