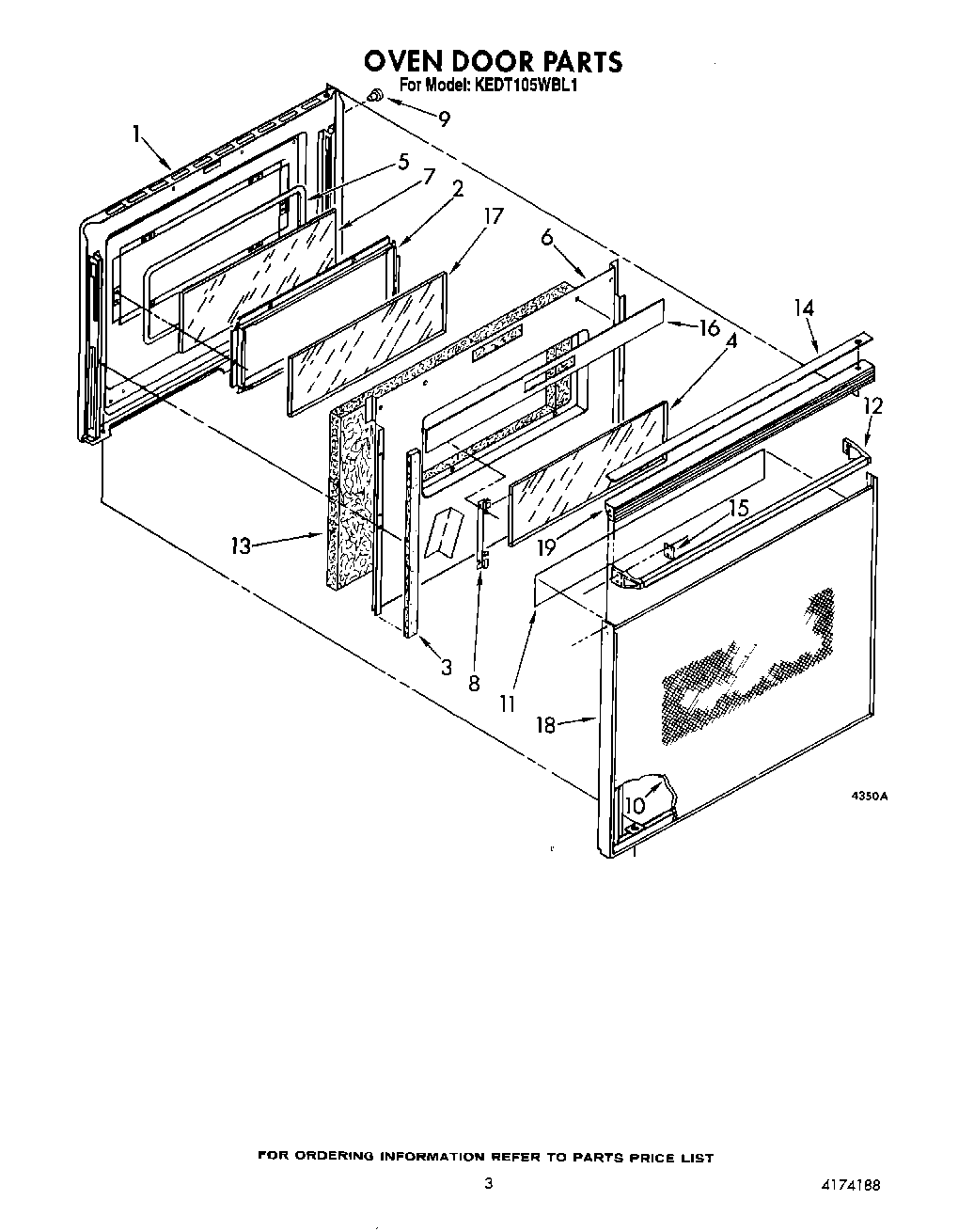

KEDT105WBL1 03 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Screw
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
10	Glass, Panel (White)
11	Foil, Door
12	Handle, Door (White)
12	Handle, Door (Almond)
12	Handle, Oven Door
12	WP355515 Whirlpool Screw
13	Insulation, Door
14	Cap, Top
15	Clip, Mtg (2)
16	Sheild, Door
18	Frame, Door
19	Top, Door (White Model)
19	Top, Door (Black Model)
19	WP308685 Whirlpool Microwave Screw
