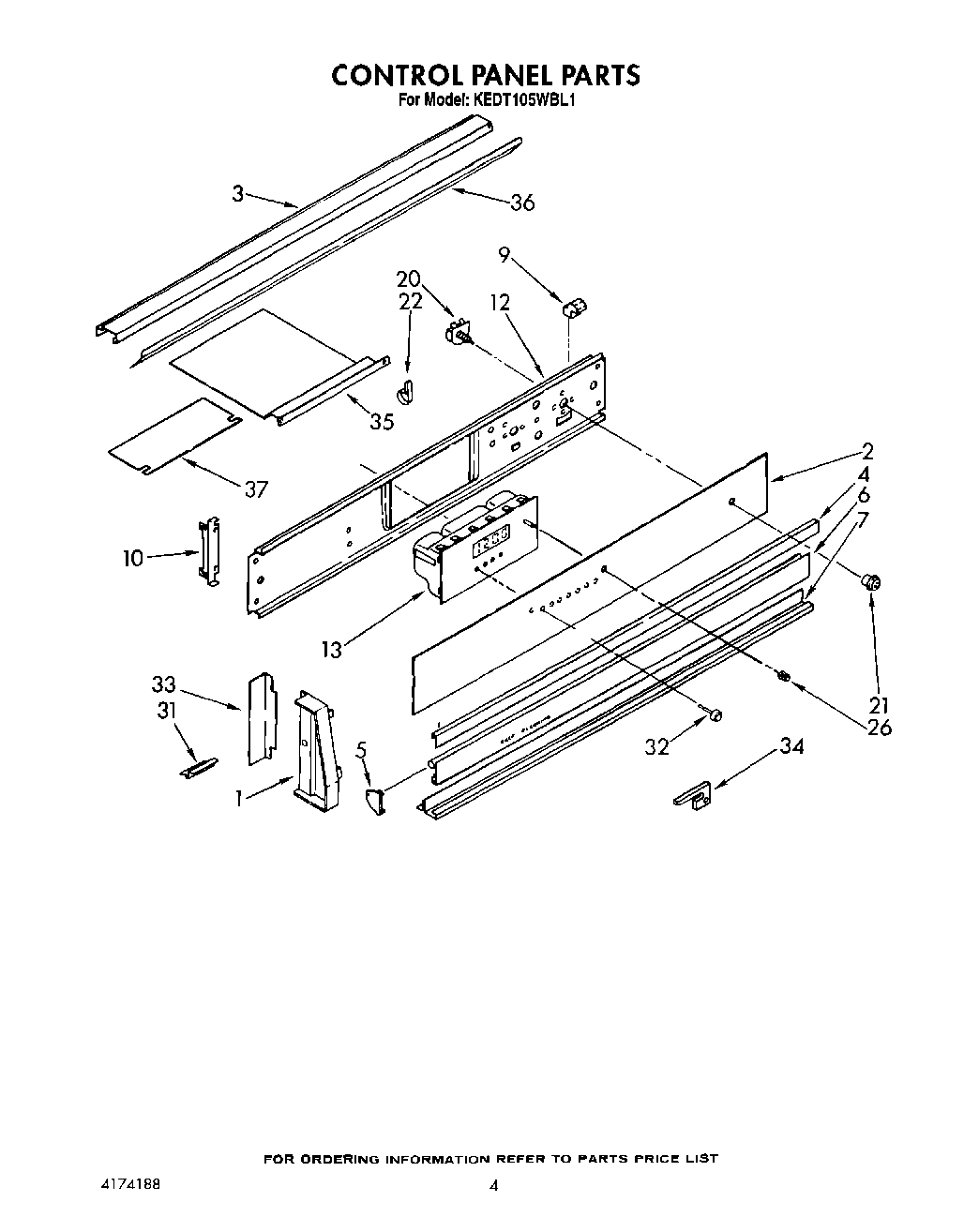

KEDT105WBL1 04 – CONTROL PANEL, OPTIONAL

Products

Position	Product
1	End Cap (Washer)
1	End Cap, L.H. (Almond)
1	End Cap (Almond, RH)
1	End Cap (White, LH)
1	End Cap (Black, RH)
1	End Cap (Black, LH)
1	End Cap (White, RH)
2	Glass, Control Panel (Almond)
2	Glass, Control Panel (White)
2	Glass, Control Panel (Black)
3	Rail, Top (Black)
3	Rail, Top (Bright Aluminum)
4	Trim, Center (Bright Aluminum)
4	Trim, Center (Black)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
6	Door, Vent (Semi-Bright Aluminum)
6	Door, Vent
7	Trim, Bottom
7	Screw, 10-32 x 1/2
9	Retainer, Glass (4)
10	Bracket, Control Panel (2)
12	Bracket, Control
13	Electronic Range Control
13	Screw
20	Switch, Oven Light
20	White Model
20	Lockwasher
21	Bezel, Switch (White – Almond)
21	Bezel, Switch (Almond)
21	Bezel Switch (1)
22	WP308605 Whirlpool Refrigerator Clamp
26	Knob, Bit Generator (Black)
26	Knob, Bit Generator (White)
26	Kno
31	Bracket, Control
32	WPL 3149780
32	WPL 3149781
32	WPL 3149782
33	Trim, End Cap (Black)
33	Trim, End Cap (White)
33	Trim, End Cap (Almond)
34	Shield, Air
35	WPL 309080
35	Screw (2)
35	Shield, Heat
36	Rail, Top (Seal, Backguard)
37	Wire, 25“ Roll (White 14 GA.)
37	242831 Whirlpool Oven Wire
37	Wire (14 Ga. 150 c Blue)
37	Wire (14 Ga. 150 c Brown)
37	Wire (14 Ga. 150 c Green)
37	Wire, 25` Roll (Black 14 Ga.)
37	Wire (14 Ga. 150 c Orange)
37	Wire (14 Ga. 150 c Yellow)
37	Wire (12 Ga. 150 c Black)
37	18 Ga. 80~c Rating (Red)
37	Wire (14 Ga. 200 c Brown)
37	Shield, Control
37	1
37	WPL 3171507
37	WPL 814128
37	Wire, 25` Roll (Red 14 Ga.)
