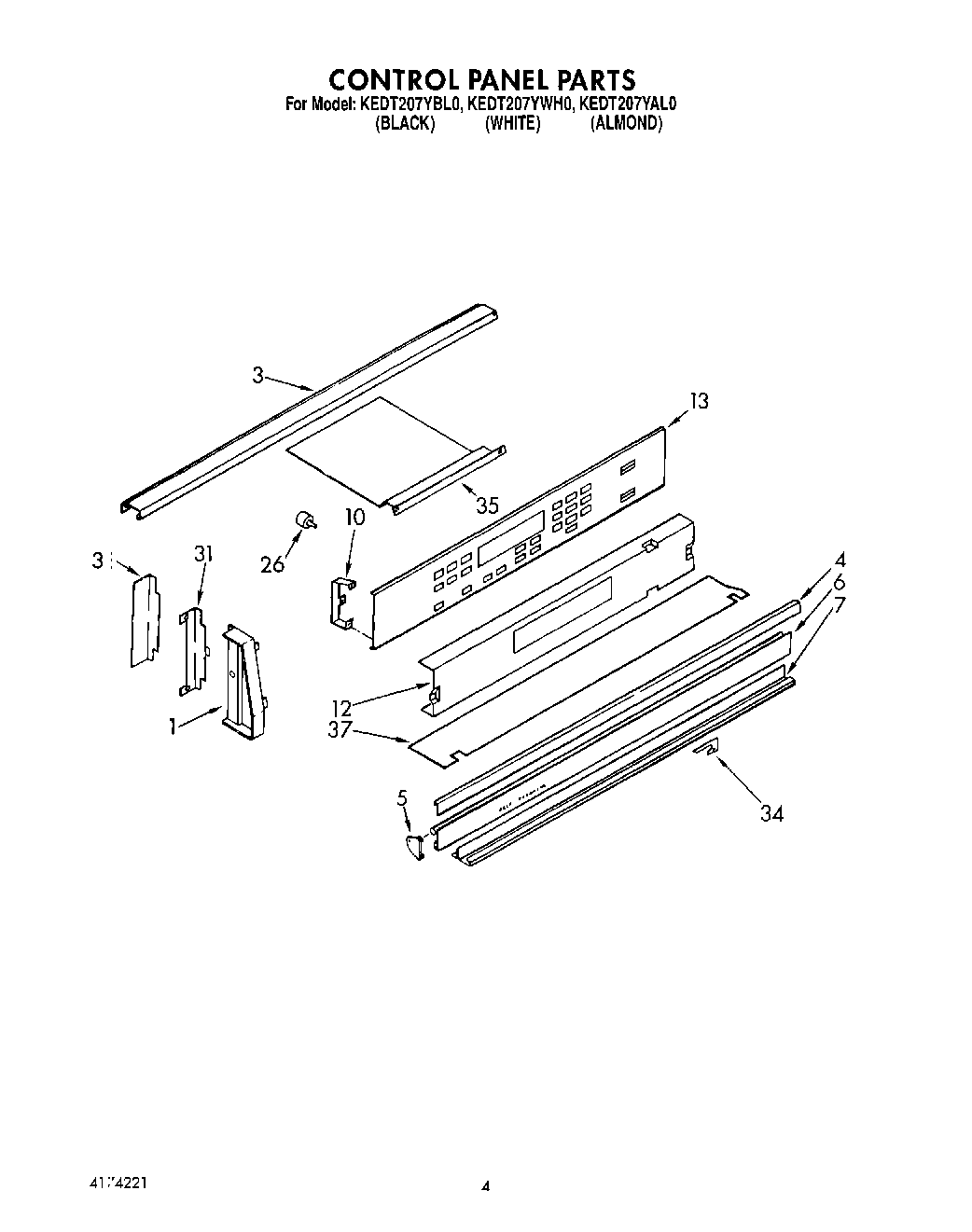

KEDT207YBL0 03 – CONTROL PANEL, OPTIONAL

Written by

Products

Position	Product
1	End Cap (Black, RH)
1	End Cap (Almond, RH)
1	End Cap, L.H. (Almond)
1	End Cap (White, RH)
1	End Cap (Washer)
1	End Cap (White, LH)
1	End Cap (Black, LH)
3	Rail, Top (Black)
3	Rail, Top (Bright Aluminum)
4	Trim, Center (Black)
4	Trim, Center (Bright Aluminum)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent (Semi-Bright Aluminum)
6	Door, Vent
7	Trim, Bottom
7	panel, top (screw, 10a x 3/8 (3))
10	Bracket, Control Panel
12	Microcomputer
13	Panel, Control (White)
13	WP308605 Whirlpool Refrigerator Clamp
13	Panel, Control (Black)
13	Screw (2)
13	Panel, Control (Almond)
26	Bumper, Rubber (4)
31	Bracket, Support
33	Trim, End Cap (Almond)
33	Trim, End Cap (Black)
33	Trim, End Cap (White)
34	Shield, Air
35	Shield, Heat
35	Screw,
37	Wire (14 Ga. 150 c Blue)
37	242831 Whirlpool Oven Wire
37	Wire (14 Ga. 150 c Brown)
37	Shield, Control
37	WPL 3183638
37	Wire, 25“ Roll (White 14 GA.)
37	Wire, 25` Roll (Red 14 Ga.)
37	Wire, 25` Roll (Black 14 Ga.)
37	Wire (14 Ga. 150 c Green)
37	Wire (14 Ga. 150 c Orange)
37	WPL 3183639
37	WPL 3183640
37	1
37	WPL 3185260
37	Wire (14 Ga. 200 c Brown)
37	18 Ga. 80~c Rating (Red)
37	Wire (12 Ga. 150 c Black)
37	Wire (14 Ga. 150 c Yellow)
37	WPL 814128
