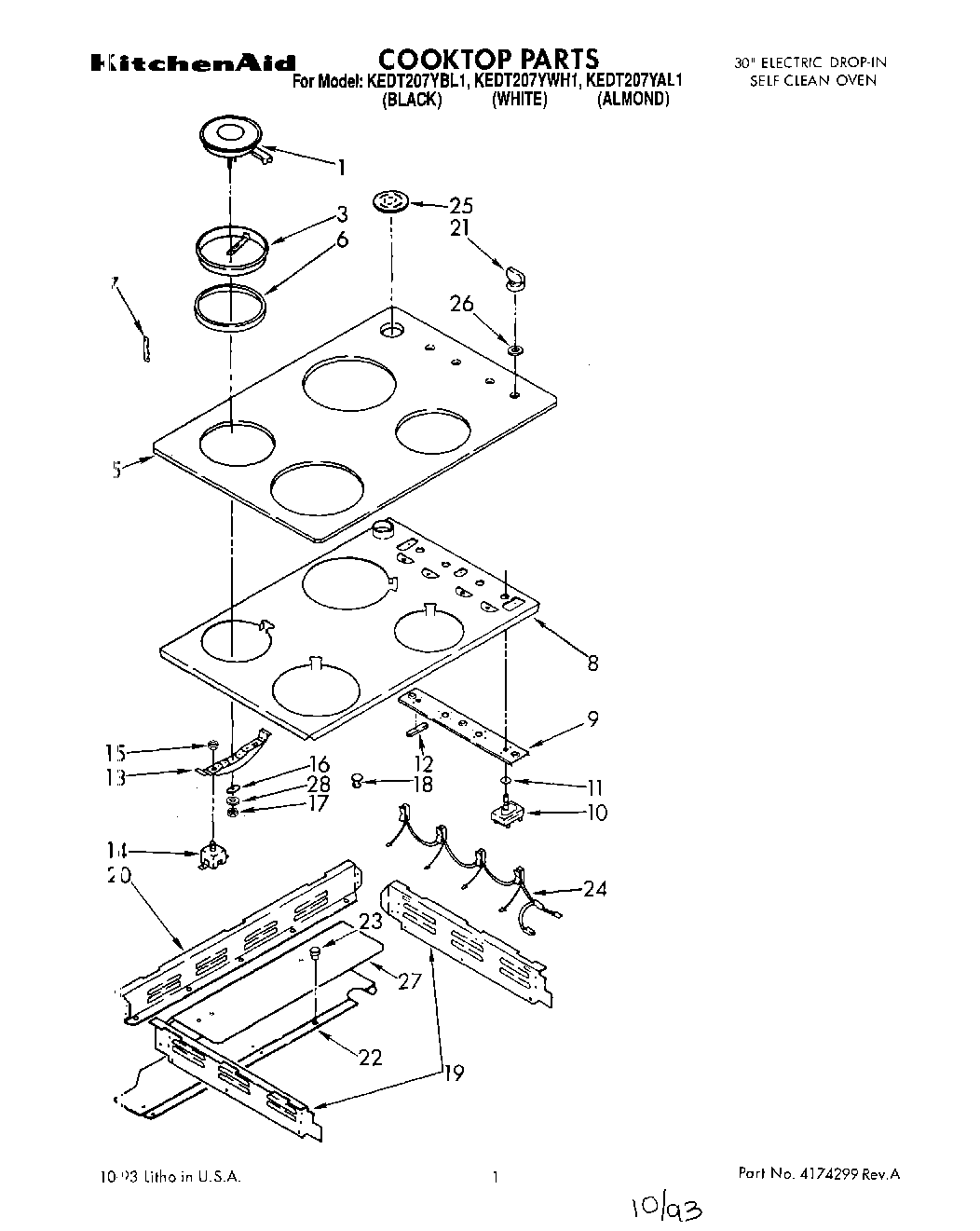

KEDT207YBL1 01 – COOKTOP

Products

Position	Product
1	Element, Solid (Rear Burner)
1	8203517 Whirlpool Oven Surface Element
3	gasket, ring (2.0 KW)
3	gasket, ring (1.5 KW)
5	Glass Top (White)
5	Glass Top (Black)
5	Glass Top (Almond)
6	8“ Seal (2)
6	6“ Seal (2)
7	Seal, Hook
8	Plate, Backup
9	Bracket, Switch
9	Screw,
10	Switch, Inifinite (Rear Burner (Orange Shaft))
10	Switch, Infinite (Use W/1400W Left Rear Burner)
10	WP486579 Whirlpool Air Conditioner Screw
11	Seal, Switch Shaft (2)
12	Tape, Foam
13	bracket, element (1.5 KW)
13	bracket, element (2.0 KW)
14	Thermostat (2)
15	Nut, Metric
16	Washer, Flat (4)
16	Spring, Leaf
17	hex nut (8)
18	Lens (4)
19	Rail, Support (R.H.)
19	Rail, Support (L.H.)
20	Rail, Back, Support (2)
21	Knob, Control (4) (Almond)
21	Knob, Control (4) (Black)
21	Knob, Control (4) (White)
22	WP488729 Whirlpool Refrigerator Door Screw
22	Cover, Top Rear
23	WPL 258109
24	Indicator, Light
25	Cover, Vent (Almond)
25	Cover, Vent (White)
25	Cover, Vent (Black)
26	Seal, Infinate Switch (4)
27	Shield, Heat
28	Lockwasher (3)
