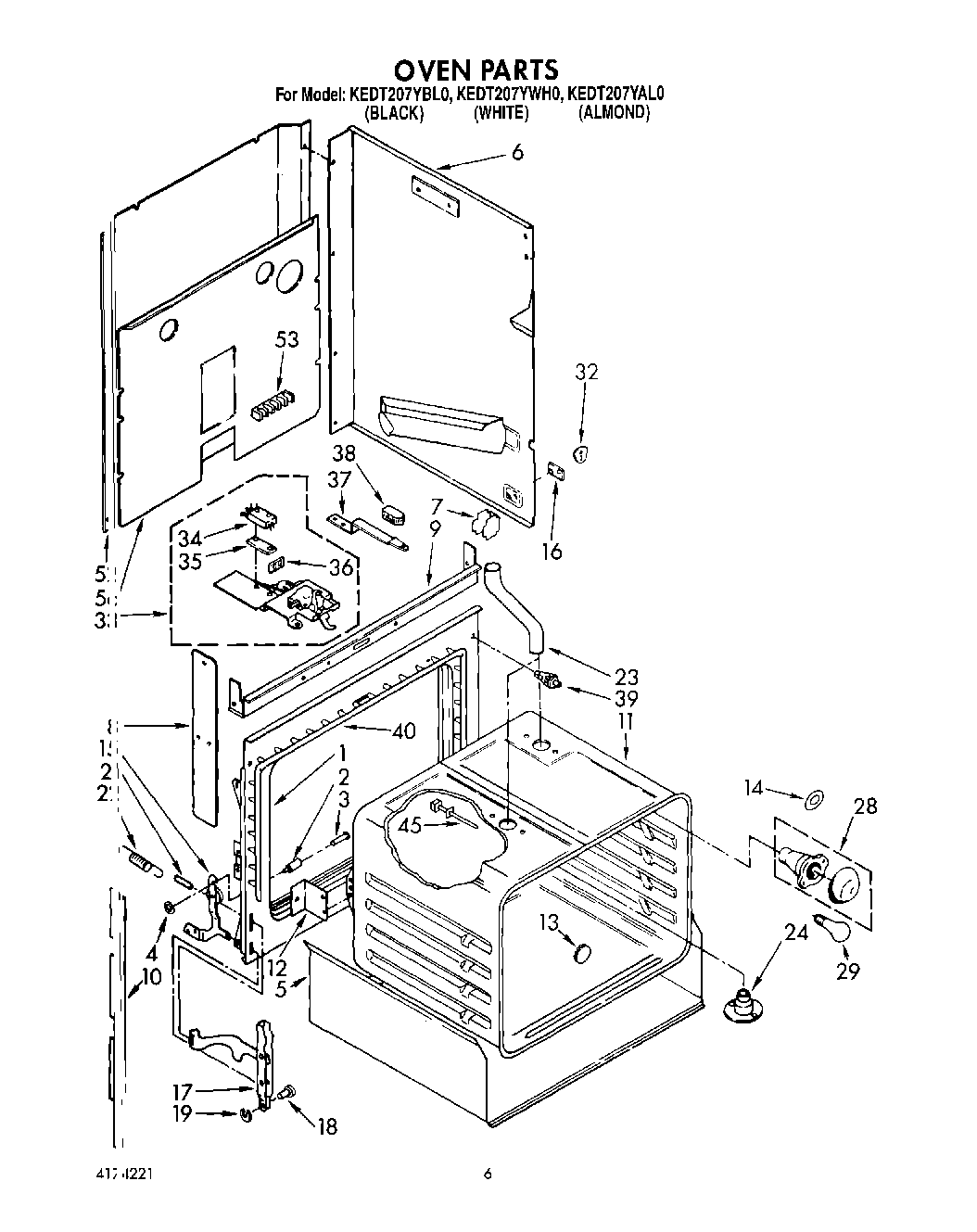

KEDT207YWH0 04 – OVEN, LITERATURE

Products

Position	Product
	WPL LIT3182753
	WPL LIT3185220
	WPL LIT3147398
	Cookbook T/C Oven
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	Baffle, Insulation
8	Screw (2)
9	Baffle, Top Insulation
10	Side Trim (Right Side)
10	Side Trim (Left Side)
11	Oven (30`` Pyro)
12	Bracket, Oven Mounting (2)
13	WPL 3185086
14	WP3184533 Whirlpool Range Light Lens Gasket
15	Hinge Ear, R.H.
15	Hinge Ear, L.H.
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent
23	SCREW
24	Eliminator, Smoke
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
32	Screw (3)
32	WPL 310662
33	Screw (3)
33	Latch, Mechanism
34	Screw
34	Switch, latch
35	Insulator, Switch
36	Screw
36	Shield, Latch
37	Latch, Handle
37	Screw
38	Screw
38	Knob, Latch Handle
39	Switch, Door
40	WPL 3185197
45	Sensor, Heat
52	Panel, Back
53	WP8203546 Whirlpool Terminal Block
53	Screw (10-12 x .875)
53	WP112432 Whirlpool Nut Assembly
56	WP488729 Whirlpool Refrigerator Door Screw
56	Cover, Rear
56	WPL 310433
56	WPL 310435
56	WPL 3149328
56	Insulation
