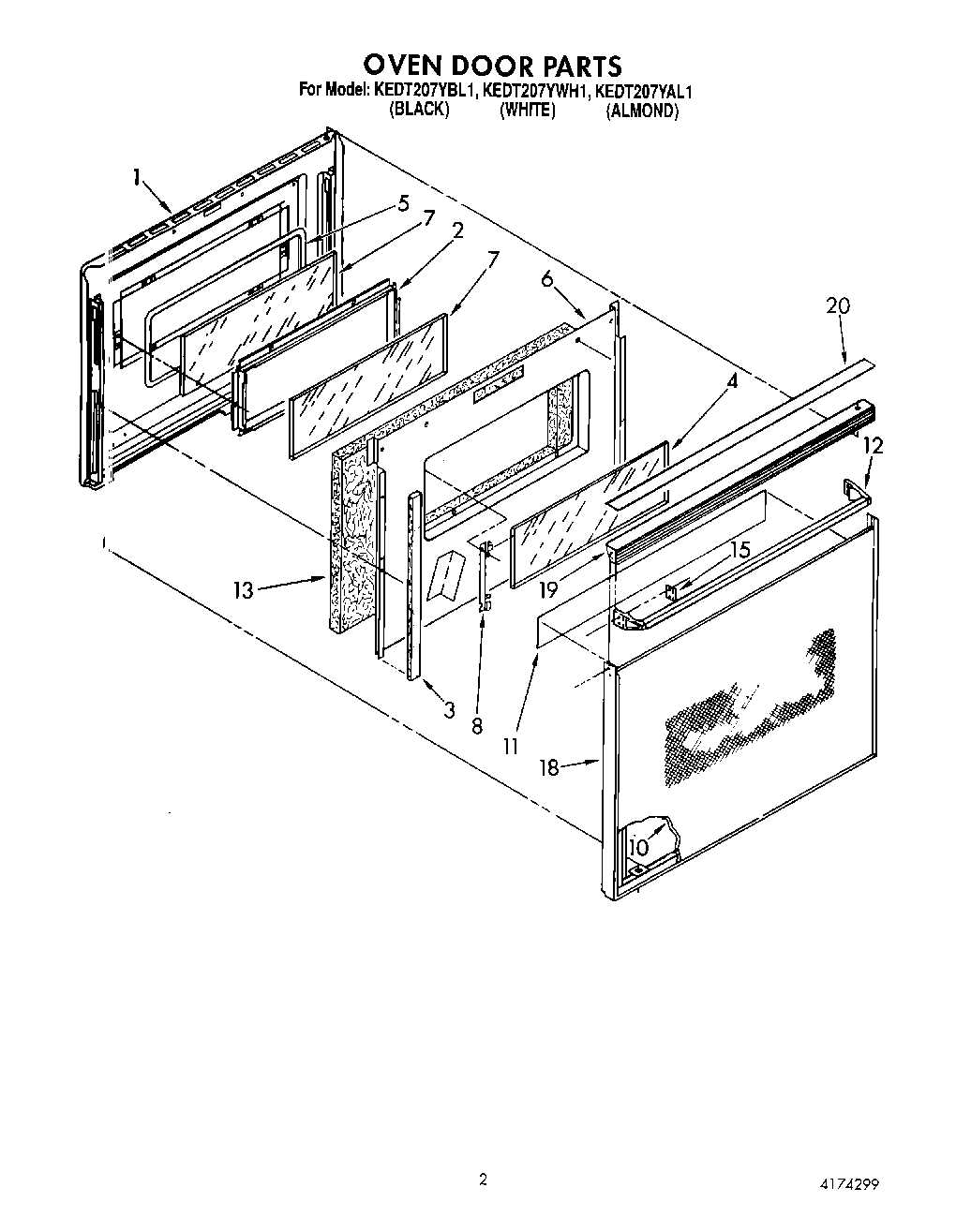

KEDT207YWH1 02 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Screw
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (Black Model)
10	Glass, Panel (White Model)
10	Glass, Panel (White)
11	Foil, Door
12	Handle, Oven Door (Black Model)
12	WP355515 Whirlpool Screw
12	Handle, Oven Door (White Model)
12	Handle, Door (Almond)
13	Insulation, Door
15	Clip, Mtg (2)
18	Frame, Door
19	Top, Door (White Model)
19	Top, Door (Black Model)
20	Cap, Top
20	WP308685 Whirlpool Microwave Screw
