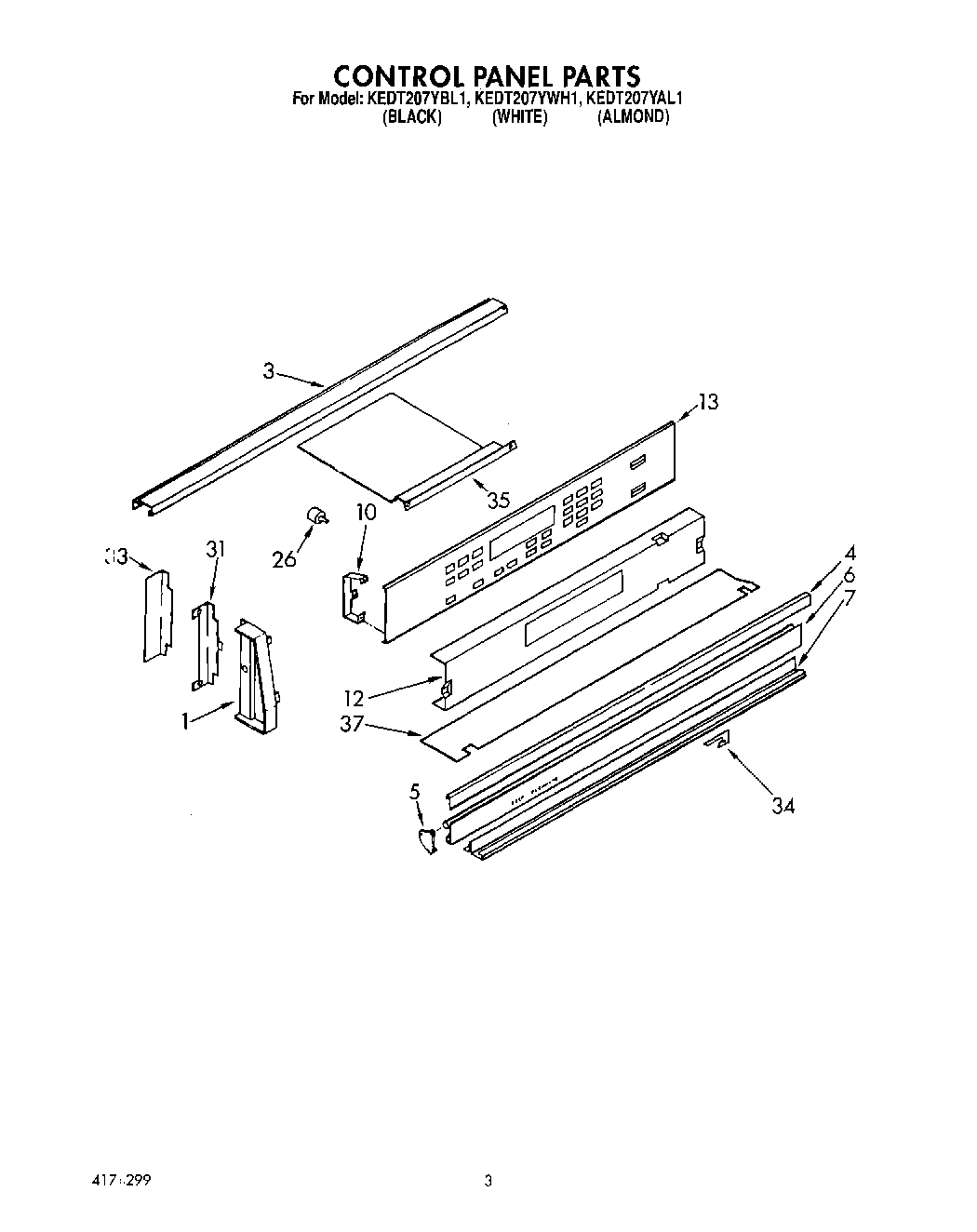

KEDT207YWH1 03 – CONTROL PANEL, OPTIONALadmin2025-04-26T09:39:22+00:00KEDT207YWH1 03 – CONTROL PANEL, OPTIONAL
Products
| Position | Product |
|---|
| 1 | End Cap (Almond, RH) |
| 1 | End Cap (Washer) |
| 1 | End Cap (White, LH) |
| 1 | End Cap (Black, LH) |
| 1 | End Cap (Black, RH) |
| 1 | End Cap (White, RH) |
| 1 | End Cap, L.H. (Almond) |
| 3 | Rail, Top (Black) |
| 3 | Rail, Top (Bright Aluminum) |
| 4 | Trim, Center (Black) |
| 4 | Trim, Center (Bright Aluminum) |
| 5 | Trim, Vent Door (Brite Aluminum, R.H.) |
| 5 | Trim, Vent Door (Brite Aluminum, L.H.) |
| 5 | End Trim, Vent (Right Side) |
| 5 | End Trim, Vent (Left Side) |
| 6 | Door, Vent (Semi-Bright Aluminum) |
| 6 | Door, Vent |
| 7 | Trim, Bottom |
| 7 | Screw, 10-32 x 1/2 |
| 10 | Bracket, Control Panel |
| 12 | Microcomputer |
| 13 | Screw (2) |
| 13 | WP308605 Whirlpool Refrigerator Clamp |
| 13 | Panel, Control (Almond) |
| 13 | Panel, Control (White) |
| 13 | Panel, Control (Black) |
| 26 | Bumper, Rubber (4) |
| 31 | Bracket, Support |
| 33 | Trim, End Cap (Black) |
| 33 | Trim, End Cap (White) |
| 33 | Trim, End Cap (Almond) |
| 34 | Shield, Air |
| 35 | Screw, |
| 35 | Shield, Heat |
| 37 | WPL 3183638 |
| 37 | Wire (14 Ga. 150 c Brown) |
| 37 | 242831 Whirlpool Oven Wire |
| 37 | Wire (14 Ga. 150 c Blue) |
| 37 | Shield, Control |
| 37 | Wire, 25`` Roll (White 14 GA.) |
| 37 | Wire, 25` Roll (Red 14 Ga.) |
| 37 | Wire, 25` Roll (Black 14 Ga.) |
| 37 | Wire (14 Ga. 150 c Green) |
| 37 | Wire (14 Ga. 150 c Orange) |
| 37 | WPL 3183639 |
| 37 | WPL 3183640 |
| 37 | 1 |
| 37 | WPL 3185260 |
| 37 | Wire (14 Ga. 200 c Brown) |
| 37 | 18 Ga. 80~c Rating (Red) |
| 37 | Wire (12 Ga. 150 c Black) |
| 37 | Wire (14 Ga. 150 c Yellow) |
| 37 | WPL 814128 |
