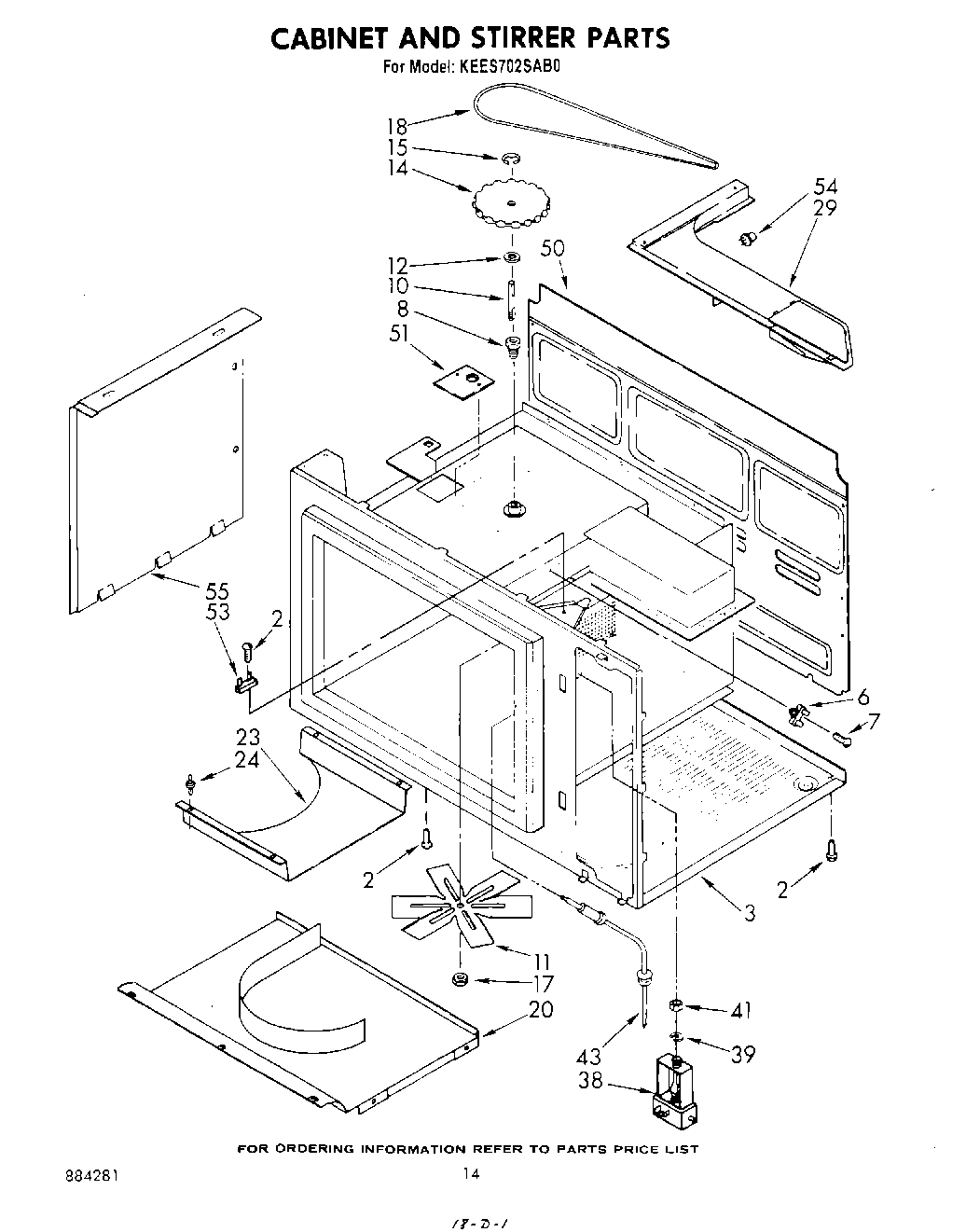

KEES702SWB0 08 – CABINET AND STIRRER

Products

PositionProduct
2WP308685 Whirlpool Microwave Screw
3Base, Cabinet (Not Serviceable)
6Fuse, Thermal
7screw
8Bushing, Stirrer
10Shaft, Stirrer
11Stirrer Blade
12Washer, Nylon
14Pulley, Stirrer Blade
15“E“ Ring
17WP487939 Whirlpool Refrigerator Nut
18WP313646 Whirlpool Microwave Drive Belt
20Fastener (4)
20screw, 8-32 x 1/2 (3)
20Silicone Rubber Gasket
23Plate, Tuning
24Support (4)
29Seal, Foam
29Baffle, Air Exhaust
38Jack, Probe
39Washer, Internal Lock
41Nut
43Probe, Temperature
43(Alt.)
43(Alt.)
50Cover
51Cover, Light
51SCREW
53Fuse, Thermal
54Sensor, Gas
55Cover, Side
