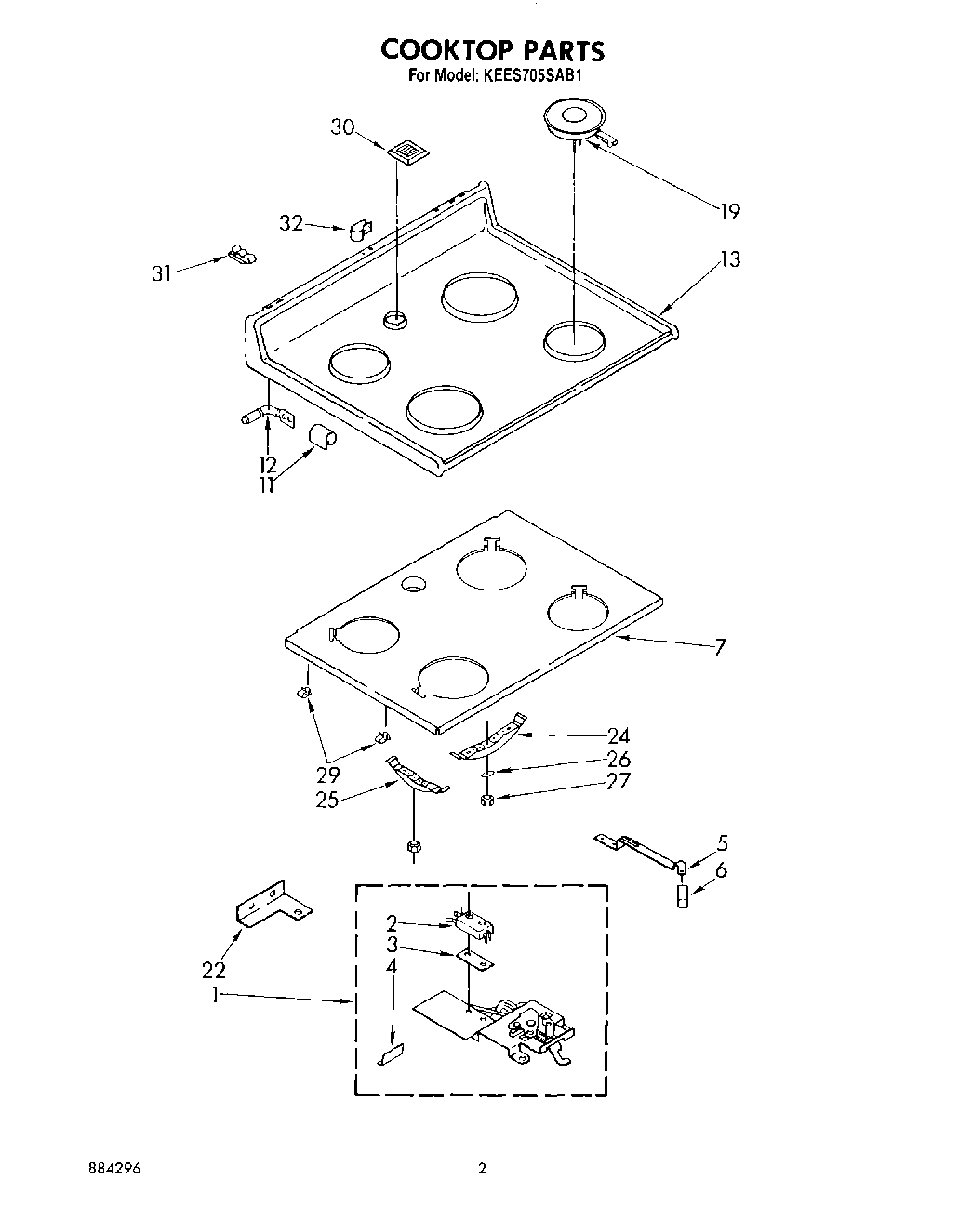

KEES705SAB1 02 – COOKTOP

Products

Position	Product
1	Latch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	WP313808 Whirlpool Screw
4	Shield, Latch
4	Screw
5	Screw
5	Screw (3)
5	WP488627 Whirlpool Refrigerator Screw
5	Handle, Latch
6	Knob, Latch
7	Support, Cooktop
11	Bracket, Cooktop (2)
12	SCREW
12	Pin, Cooktop (2)
13	Cooktop (Almond)
13	Cooktop (White)
19	WP3147132 Whirlpool Surface Element
19	WP3147131 Whirlpool Surface Element
22	Screw, 10A x 1/2 (2) (Black)
22	WPL 312320
24	bracket, element (1.5 KW)
25	bracket, element (2.0 KW)
26	Spring, Leaf
27	hex nut (8)
29	Clip
30	Cover, Vent
31	Clip, Tube
32	Strain Relief (3)
