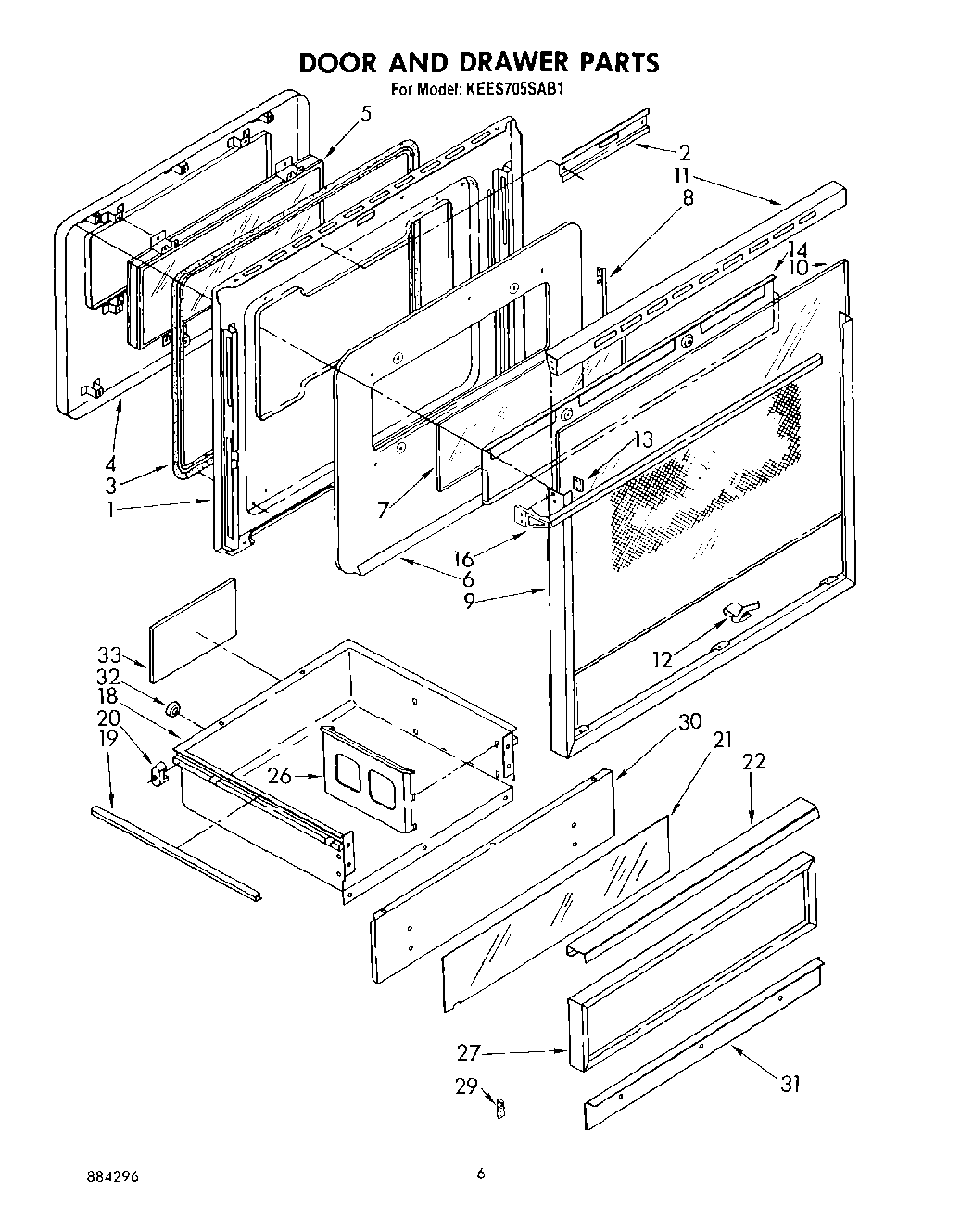

KEES705SAB1 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Channel, Latch
2	Screw
3	Seal, Fiberglass
4	Panel, Inner
5	Window Package
6	Retainer, Insulation
7	Glass (6.81“ x 18.31“)
8	Retainer, Glass (2)
9	Frame, Door
10	Glass, Outer
11	Top, Door Frame
13	WP90296 Whirlpool Clip
13	Clip (2)
14	Baffle, Heat
16	Handle, Oven Door
16	WP355515 Whirlpool Screw
18	Drawer, Utility
19	Protector, Drawer (2)
20	Screw, 10A x 1/2 (2) (Black)
20	Glide, Rear (2)
21	Drawer, Glass
22	WP488627 Whirlpool Refrigerator Screw
22	Handle, Drawer
26	Rack, Literature
27	Frame, Glass
29	Clip, Glass (10)
30	Liner, Glass
31	WP308685 Whirlpool Microwave Screw
31	Plate, Kick
32	Bumper (2)
32	W11693756 Whirlpool Screw Assembly
33	Pad, Sound
