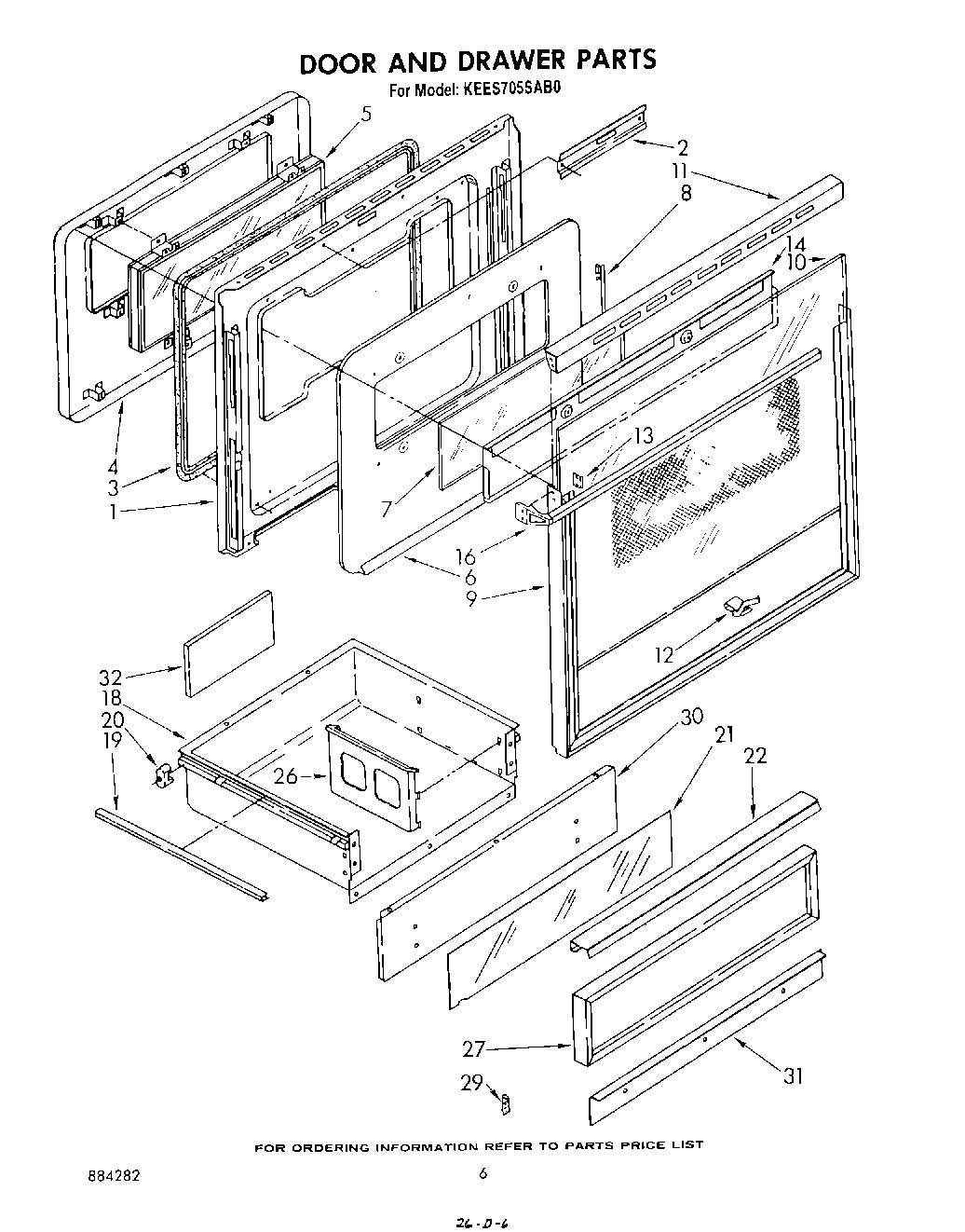

KEES705SWB0 04 – DOOR AND DRAWERadmin2025-04-26T09:38:36+00:00KEES705SWB0 04 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 2 | Screw |
| 2 | Channel, Latch |
| 3 | Seal, Fiberglass |
| 4 | Panel, Inner |
| 5 | Window Package |
| 6 | Retainer, Insulation |
| 7 | Glass (6.81`` x 18.31``) |
| 8 | Retainer, Glass (2) |
| 9 | Frame, Door |
| 10 | Glass, Outer |
| 11 | Top, Door Frame |
| 13 | Clip (2) |
| 13 | WP90296 Whirlpool Clip |
| 14 | Baffle, Heat |
| 16 | Handle, Oven Door |
| 16 | WP355515 Whirlpool Screw |
| 18 | Drawer, Utility |
| 19 | Protector, Drawer (2) |
| 20 | Screw, 10A x 1/2 (2) (Black) |
| 20 | Glide, Rear (2) |
| 21 | Drawer, Glass |
| 22 | Handle, Drawer |
| 22 | WP488627 Whirlpool Refrigerator Screw |
| 26 | Rack, Literature |
| 27 | Frame, Glass |
| 29 | Clip, Glass (10) |
| 30 | Liner, Glass |
| 31 | Plate, Kick |
| 31 | WP308685 Whirlpool Microwave Screw |
| 32 | Pad, Sound |
