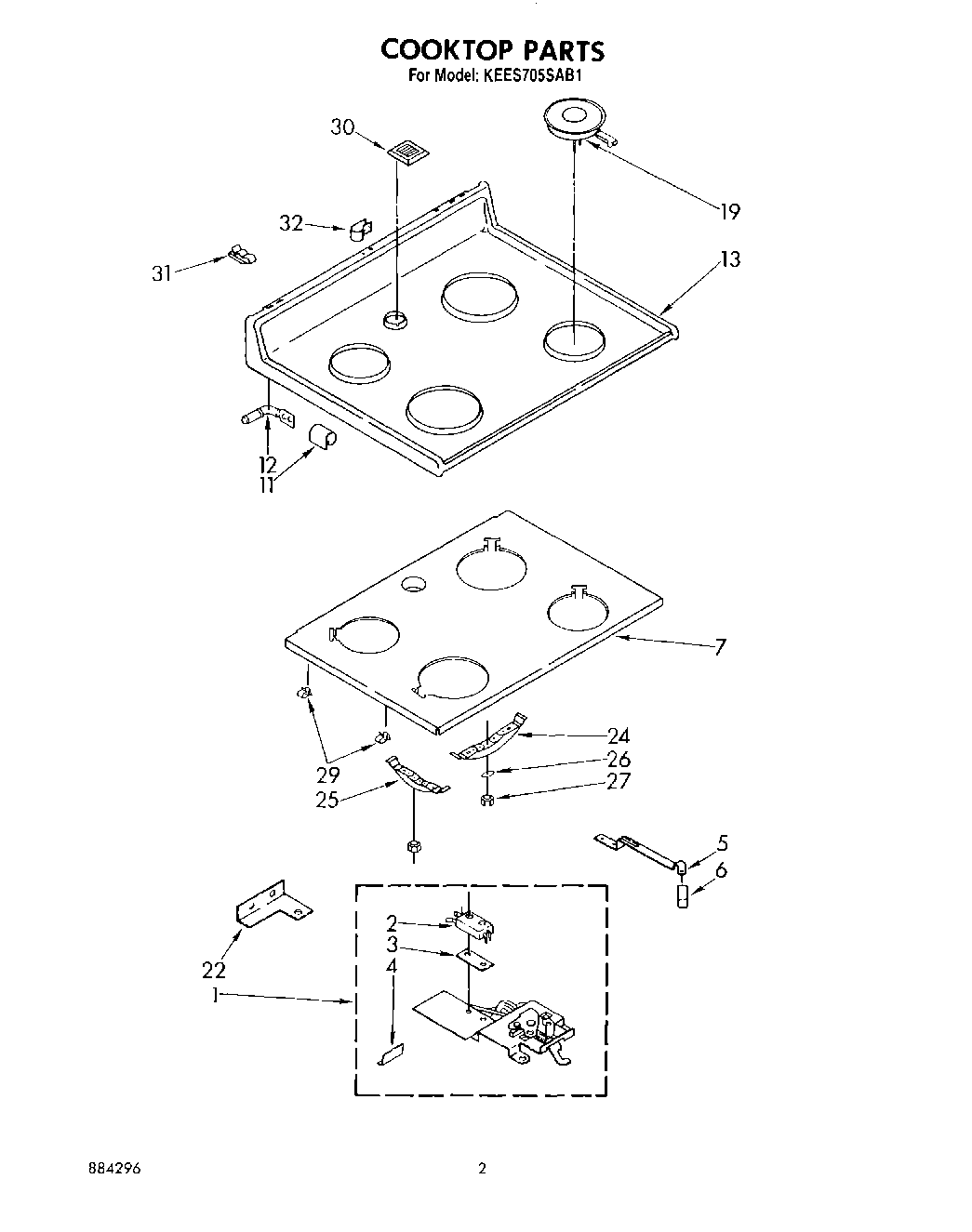

| 1 | Latch Assembly |
| 2 | Screw |
| 2 | Safety Switch |
| 3 | Insulator, Switch |
| 4 | WP313808 Whirlpool Screw |
| 4 | Shield, Latch |
| 4 | Screw |
| 5 | Screw |
| 5 | Screw (3) |
| 5 | WP488627 Whirlpool Refrigerator Screw |
| 5 | Handle, Latch |
| 6 | Knob, Latch |
| 7 | Support, Cooktop |
| 11 | Bracket, Cooktop (2) |
| 12 | SCREW |
| 12 | Pin, Cooktop (2) |
| 13 | Cooktop (Almond) |
| 13 | Cooktop (White) |
| 19 | WP3147132 Whirlpool Surface Element |
| 19 | WP3147131 Whirlpool Surface Element |
| 22 | Screw, 10A x 1/2 (2) (Black) |
| 22 | WPL 312320 |
| 24 | bracket, element (1.5 KW) |
| 25 | bracket, element (2.0 KW) |
| 26 | Spring, Leaf |
| 27 | hex nut (8) |
| 29 | Clip |
| 30 | Cover, Vent |
| 31 | Clip, Tube |
| 32 | Strain Relief (3) |
