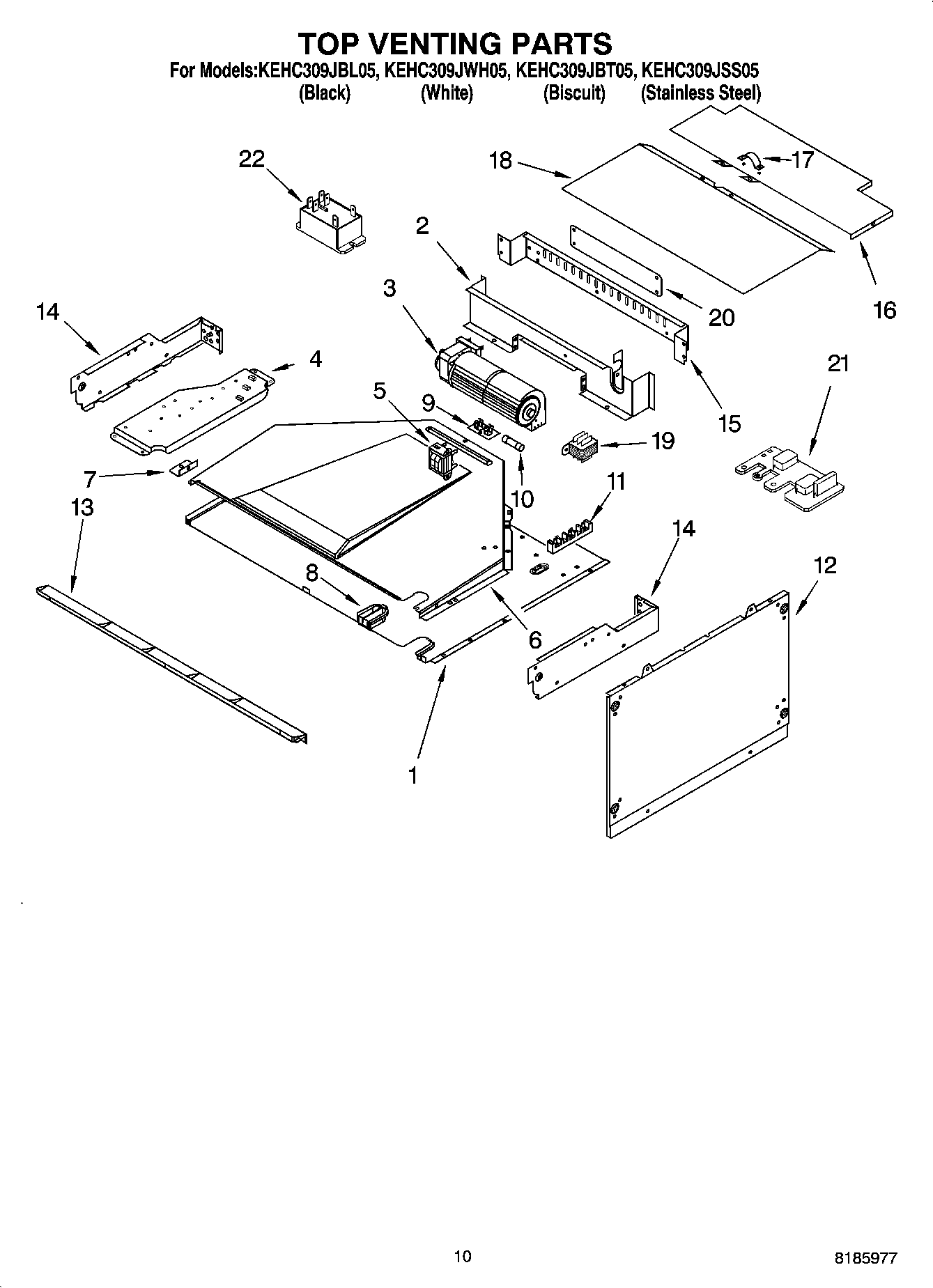

KEHC309JBL05 08 – TOP VENTING PARTS

Products

PositionProduct
NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1Cover, Top
2Baffle, Blower
2489392 Whirlpool Refrigerator Screw
3Blower
4Plate, Mounting
5WP9760588 Whirlpool Transformer
6Exhaust Duct
7Bracket, Duct
8WP112432 Whirlpool Nut Assembly
8Grommet
9WP4449154 Whirlpool Screw
94454949 Whirlpool Oven Fuse Block
10WPW10017410 Whirlpool Fuse
11Screw
11WP8203546 Whirlpool Terminal Block
12Side, Combo
13WP4450038 Whirlpool Screw
13Vent-Cntrl Panel
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
174448664 Whirlpool Oven Mounting Bracket
18WP4452367 Whirlpool Top Cover
19Transformer, Control Panel
20Plate, Cover
21Suppressor
22WP9752759 Whirlpool Relay
22WP4449809 Whirlpool Screw
