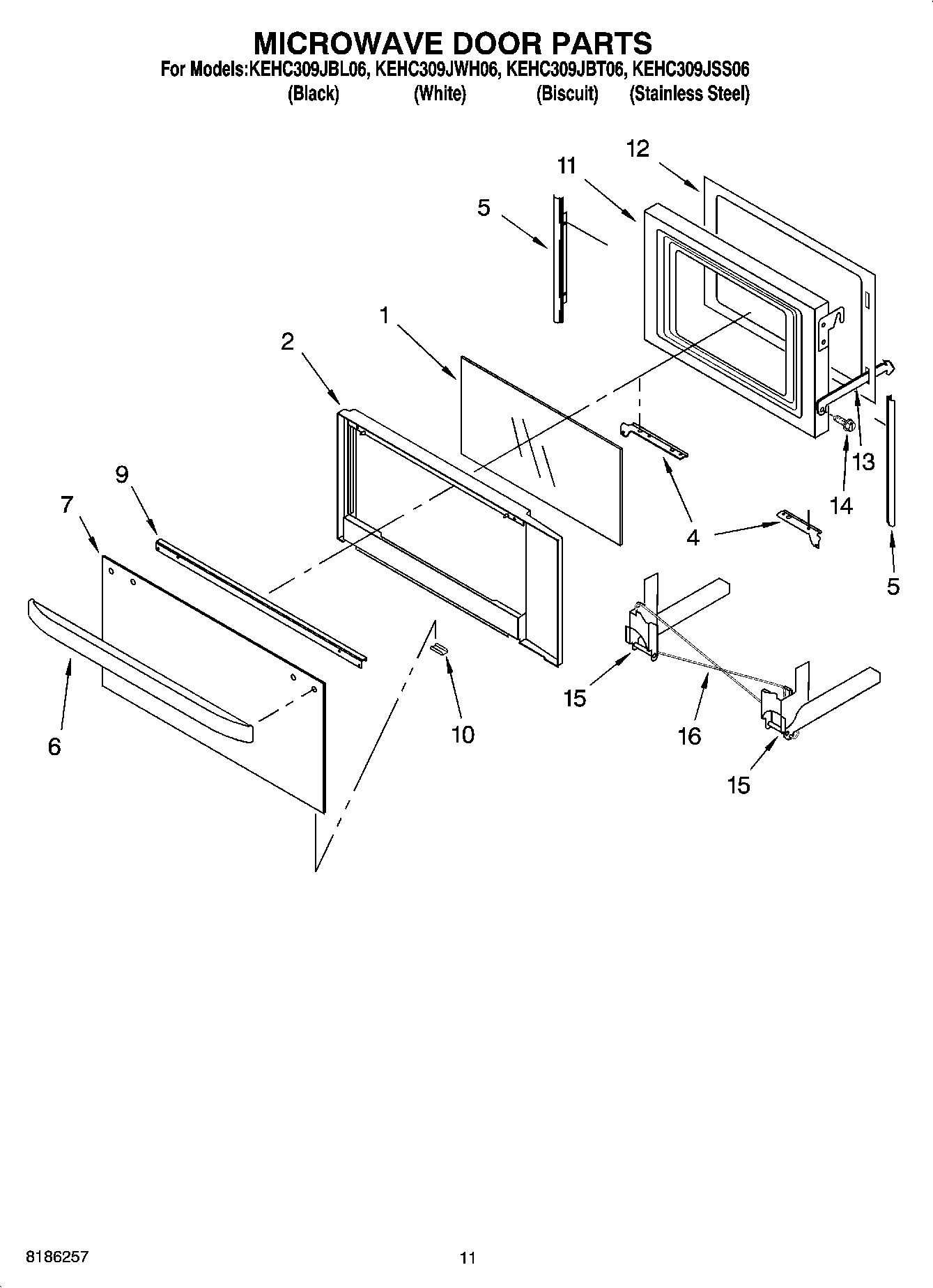

KEHC309JBL06 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

KEHC309JBL06 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Written by

in

KEHC309JBL06 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI84822A5
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
WPL ARI84821A5
WPL ARI84820A2
8301909 Whirlpool Oven Wire Harness
WPL 8301923
WPL ARI84823A2
261900 Whirlpool Microwave Spray
4450950 Whirlpool Oven Conduit
1
WPL 591014
Wire, 25“ Roll (White 14 GA.)
WP4448950 Whirlpool Screw
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
Wire, 25` Roll (Black 14 Ga.)
4450800 Whirlpool Oven Screw
Wire, 25` Roll (Red 14 Ga.)
Ground (M/W)
4452400 Whirlpool Microwave Wire Harness
16515 Whirlpool Clip
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
WP4449809 Whirlpool Screw
Spacer, Harness
1Glass, Middle
2WP8303556 Whirlpool Microwave Door Frame
2WP4450038 Whirlpool Screw
4Bracket, Mounting (Left Side)
4Bracket, Mounting (Right Side)
5Filler, Side
5Filler, Side (Left Side)
6Handle, Door (Black)
6Handle, Door (Stainless Steel)
6Handle, Door (Biscuit)
6Handle, Door (White)
7Glass, Outer (White)
7Glass, Outer (Biscuit)
7Glass, Outer (Black)
7WP4452259 Whirlpool Door Glass
9Bracket, Handle
9WPW10132940 Whirlpool Dishwasher Screw
10Clip, Retainer (White Model)
10Clip, Retainer (Black Model)
11Plate, Door
12Frame, Inner
13Strap, Door
14Screw
15WP4375323 Whirlpool Microwave Door Hinge
15WP4375324 Whirlpool Microwave Door Hinge
16WP4451009 Whirlpool Microwave Spring
