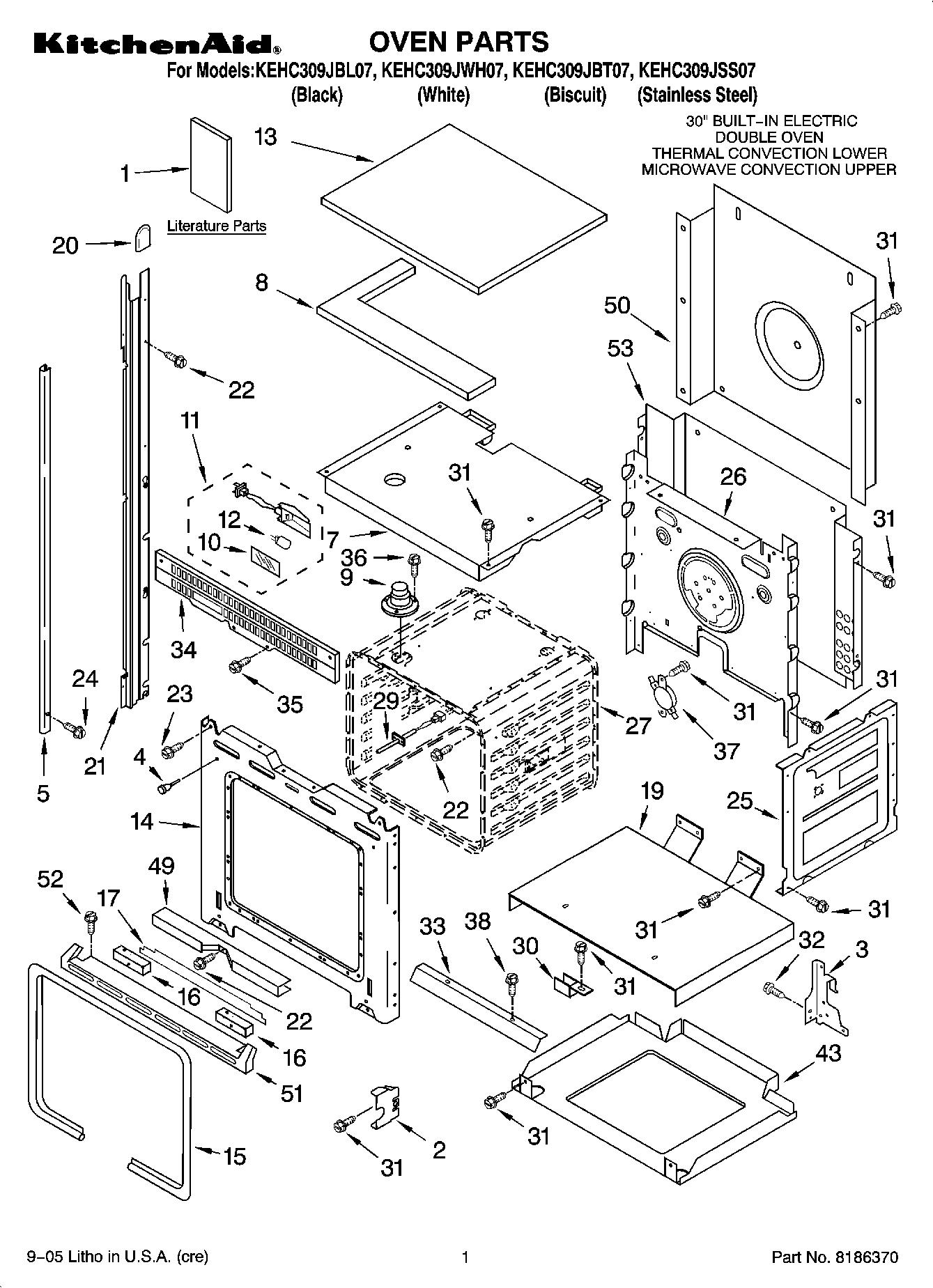

KEHC309JBL07 01 – OVEN PARTS

KEHC309JBL07 01 – OVEN PARTS

Written by

in

KEHC309JBL07 01 – OVEN PARTS

Products

PositionProduct
1Tech Sheet (Oven)
1Use & Care Guide (Microwave)
1Safe Cooking Tips
1Use & Care Guide (Oven)
1Installation Instructions
1Cooking Guide (Lable)
1Safe Cooking Tips (French)
1Chart, High Speed Cooking
1Easy Set Guide
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5(Trim, Side Left Hand) (Biscuit)
5Trim, Side (LH Stainless Steel)
5Trim, Side (RH Stainless Steel)
5(Trim, Side Left Hand) (White)
5(Trim, Side Left Hand) (Black)
5Trim, Side Right Hand (Black)
5Trim, Side Right Hand (White)
5Trim, Side Right Hand (Biscuit)
7Top, Chassis
8WPL 4452492
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13WPL 4452491
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16Spacer, Foam
17Insulation Bottom Vent
19Support, Insulation
20Cap, Spacer
21814375 Whirlpool Oven Rail Mount
21814376 Whirlpool Oven Rail Mount
22WP4449154 Whirlpool Screw
23Screw
24WP8281236 Whirlpool Screw
24WP694091 Whirlpool Screw
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
31WP4449809 Whirlpool Screw
32WP4449743 Whirlpool Screw
339760677 Whirlpool Oven Vent Deflector
34Vent, Center
35WP3400832 Whirlpool Screw
36SCREW
37WP9759243 Whirlpool Thermostat
38WP4450038 Whirlpool Screw
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
514452152 Whirlpool Oven Mounting Bracket
51WPL 4455443
51WPL 4455147
51WPL 4455447
51WPL 4455445
52Trim, Bottom (Screw)
53WPL 4450365
53WPL ARI84825A6
53WPL 4451756
53W11684730 Whirlpool Insulation
