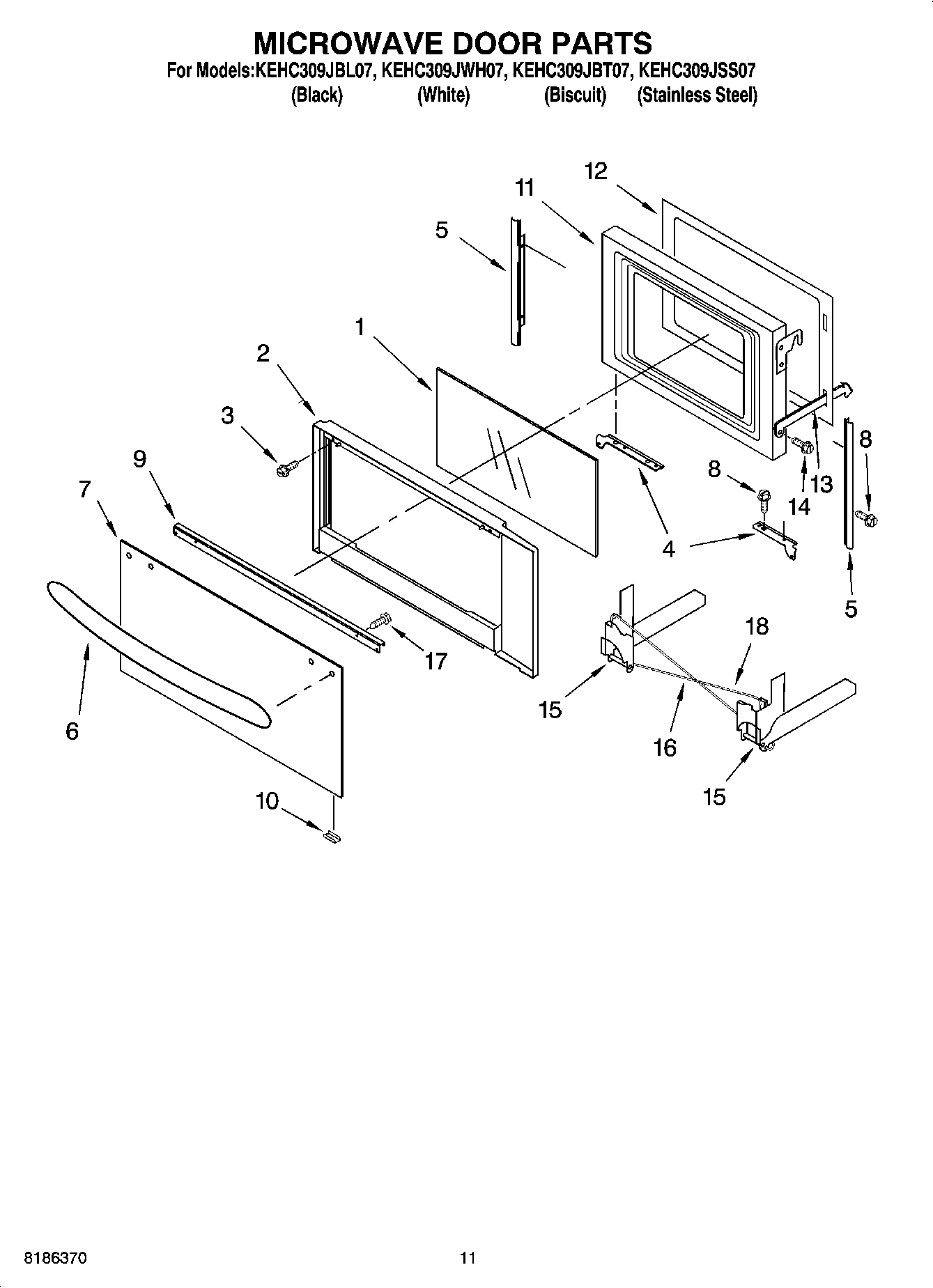

KEHC309JBL07 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTSadmin2025-04-26T09:39:56+00:00KEHC309JBL07 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS
Products
| Position | Product |
|---|
| WPL ARI84830A3 |
| Wire (12 Ga. 150 c Black) |
| 8303838 Whirlpool Oven Wire Harness |
| Wire (14 Ga. 150 c Orange) |
| Wire (14 Ga. 150 c Green) |
| Wire (14 Ga. 150 c Brown) |
| Wire (14 Ga. 150 c Blue) |
| WP261869 Whirlpool Microwave Paint |
| 242831 Whirlpool Oven Wire |
| 18 Ga. 80~c Rating (Red) |
| Wire (14 Ga. 200 c Brown) |
| 1 |
| WPL ARI84829A3 |
| WPL ARI84828A2 |
| WPL ARI84827A6 |
| WPL 8301923 |
| 8301909 Whirlpool Oven Wire Harness |
| 261900 Whirlpool Microwave Spray |
| 4450950 Whirlpool Oven Conduit |
| WPL 591014 |
| Wire (14 Ga. 150 c Yellow) |
| Spacer, Harness |
| WP4448950 Whirlpool Screw |
| Wire, 25` Roll (Black 14 Ga.) |
| 814381 Whirlpool Pin |
| WP482338 Whirlpool Refrigerator Adhesive |
| 72032 Whirlpool Touch Up Paint Black |
| 285006 Whirlpool Spray |
| WPW10339879 Whirlpool Wire Tie |
| Wire, 25`` Roll (White 14 GA.) |
| 4450800 Whirlpool Oven Screw |
| Ground (M/W) |
| 4452400 Whirlpool Microwave Wire Harness |
| Wire, 25` Roll (Red 14 Ga.) |
| WP4449809 Whirlpool Screw |
| 350930 Whirlpool White Spray Paint |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 16515 Whirlpool Clip |
| 1 | Glass, Middle |
| 2 | WP8303556 Whirlpool Microwave Door Frame |
| 3 | WP4450038 Whirlpool Screw |
| 4 | Bracket, Mounting (Right Side) |
| 4 | Bracket, Mounting (Left Side) |
| 5 | Filler, Side |
| 5 | Filler, Side (Left Side) |
| 6 | Handle, Door (Biscuit) |
| 6 | Handle, Door (Black) |
| 6 | Door Handle (Stainless Steel) |
| 6 | Handle, Door (White) |
| 7 | WP4452259 Whirlpool Door Glass |
| 7 | Glass, Outer (Black) |
| 7 | Glass, Outer (White) |
| 7 | Glass, Outer (Biscuit) |
| 9 | Bracket, Handle |
| 10 | Retainer, Glass-Clip (Stainless Steel) |
| 10 | RETAINER,GLASS CLIP (BISCUIT) |
| 10 | Clip, Retainer (Black Model) |
| 10 | Clip, Retainer (White Model) |
| 11 | Plate, Door |
| 12 | Frame, Inner |
| 13 | Strap, Door |
| 14 | Screw |
| 15 | WP4375323 Whirlpool Microwave Door Hinge |
| 15 | WP4375324 Whirlpool Microwave Door Hinge |
| 16 | WP4452398 Whirlpool Microwave Door Spring |
| 16 | WP4451009 Whirlpool Microwave Spring |
| 17 | WPW10132940 Whirlpool Dishwasher Screw |
| 18 | WP4452395 Whirlpool Spring Assembly |
