KEHC309JBL08 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

KEHC309JBL08 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Written by

in

KEHC309JBL08 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI84836A4
242831 Whirlpool Oven Wire
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
8303838 Whirlpool Oven Wire Harness
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL 591014
4450950 Whirlpool Oven Conduit
261900 Whirlpool Microwave Spray
WPL ARI84837A9
WPL 8301923
8301909 Whirlpool Oven Wire Harness
WPL ARI84834A5
WPL ARI84835A5
Wire (14 Ga. 150 c Orange)
Spacer, Harness
4452400 Whirlpool Microwave Wire Harness
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
814381 Whirlpool Pin
4450800 Whirlpool Oven Screw
WP4448950 Whirlpool Screw
Ground (M/W)
Wire, 25` Roll (Red 14 Ga.)
16515 Whirlpool Clip
Wire, 25` Roll (Black 14 Ga.)
350930 Whirlpool White Spray Paint
WPW10339879 Whirlpool Wire Tie
72017 Whirlpool Appliance Touch-Up Paint White
WP4449809 Whirlpool Screw

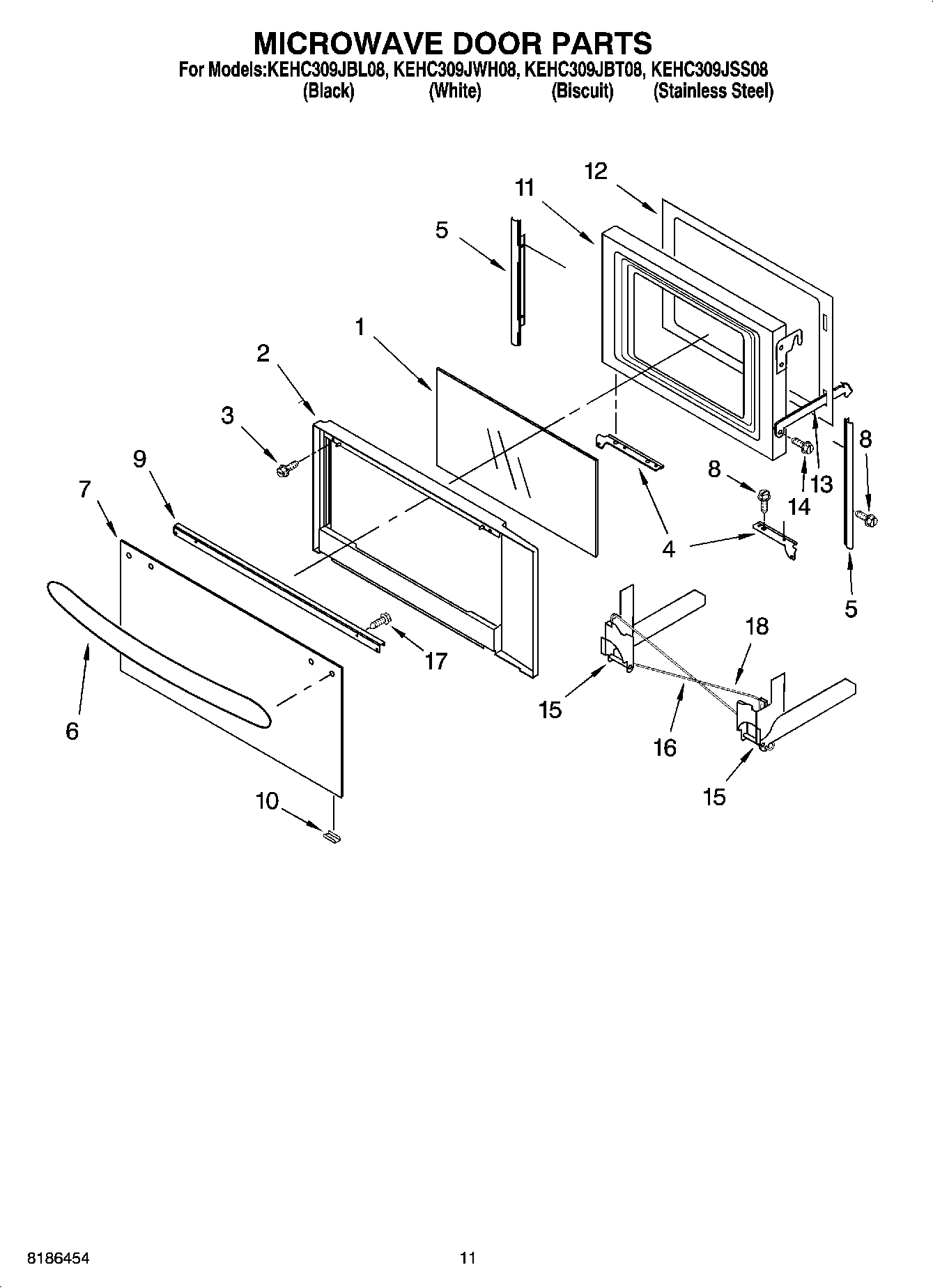

1Glass, Middle
2WP8303556 Whirlpool Microwave Door Frame
3WP4450038 Whirlpool Screw
4Bracket, Mounting (Right Side)
4Bracket, Mounting (Left Side)
5Filler, Side (Left Side)
5Filler, Side
6Handle, Door (Biscuit)
6Door Handle (Stainless Steel)
6Handle, Door (Black)
6Handle, Door (White)
7Glass, Outer (Biscuit)
7Glass, Outer (White)
7WP4452259 Whirlpool Door Glass
7Glass, Outer (Black)
9Bracket, Handle
10Clip, Retainer (Black Model)
10Clip, Retainer (White Model)
10RETAINER,GLASS CLIP (BISCUIT)
10Retainer, Glass-Clip (Stainless Steel)
11Plate, Door
12Frame, Inner
13Strap, Door
14Screw
15WP4375323 Whirlpool Microwave Door Hinge
15WP4375324 Whirlpool Microwave Door Hinge
16WP4452398 Whirlpool Microwave Door Spring
16WP4451009 Whirlpool Microwave Spring
17WPW10132940 Whirlpool Dishwasher Screw
18WP4452395 Whirlpool Spring Assembly
