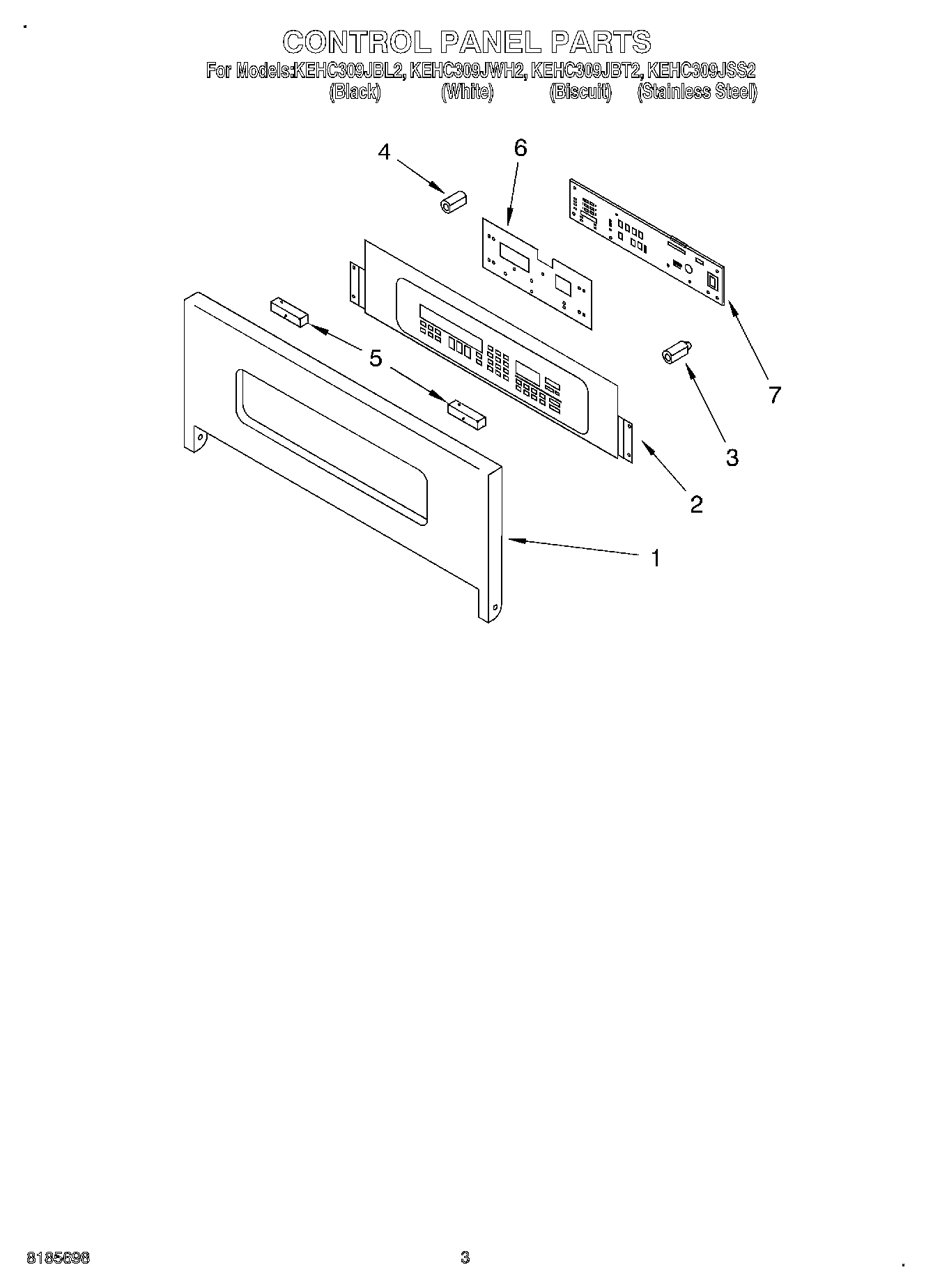

KEHC309JBL2 02 – CONTROL PANEL

KEHC309JBL2 02 – CONTROL PANEL

Written by

in

KEHC309JBL2 02 – CONTROL PANEL

Products

PositionProduct
1Panel, Control (White)
1Panel, Control (Biscuit)
1Panel, Control (Black)
1Panel, Control (Stainless)
2Switch, Membrane (Biscuit)
2Switch, Membrane (Stainless Steel)
2Switch, Membrane (White)
2Switch, Membrane (Black)
3Insulation, Board
4WP3400832 Whirlpool Screw
4Insulation, Board Support
5Spacer, Foam
6Insulator, Dialectric
7Screw
7Microcomputer
