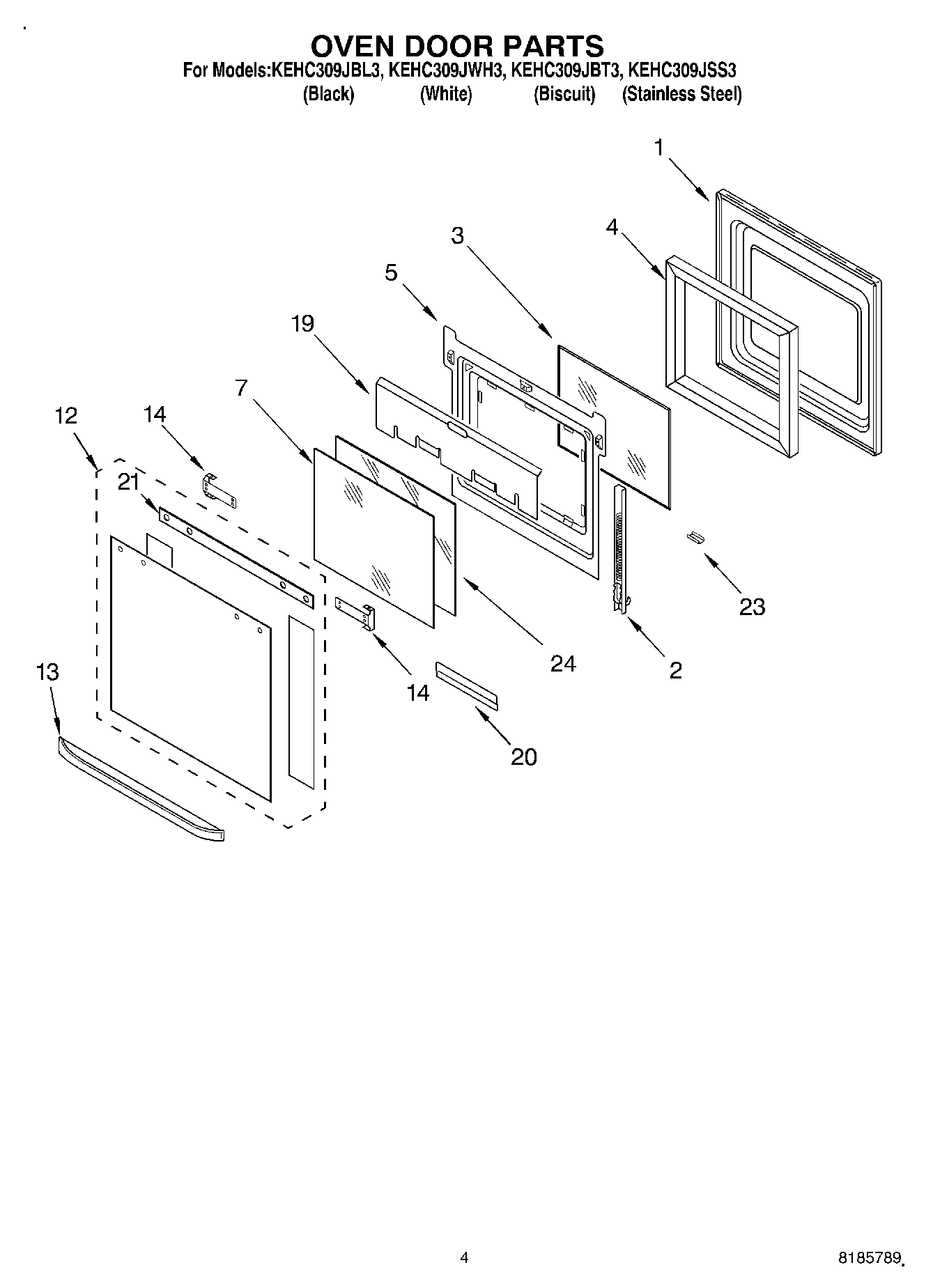

KEHC309JBL3 03 – OVEN DOORadmin2025-04-26T09:37:51+00:00KEHC309JBL3 03 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | WP9759413 Whirlpool Door Liner |
| 2 | WP4455526 Whirlpool Door Hinge |
| 2 | WP4449743 Whirlpool Screw |
| 3 | WP4449259 Whirlpool Glass Window |
| 4 | WP4451722 Whirlpool Door Insulation Assembly |
| 5 | Retainer, Glass |
| 7 | WP4449263 Whirlpool Inner Door Glass |
| 12 | Door Glass, Assy (Biscuit) |
| 12 | Door Glass, Assy (White) |
| 12 | W10401225 Whirlpool Oven Outer Door Glass |
| 12 | Door Glass, Assy (Black) |
| 13 | Handle, Door (White) |
| 13 | Handle, Door (Black) |
| 13 | Handle, Door (Biscuit) |
| 13 | Door Handle (Stainless Steel) |
| 14 | Bracket, Handle (L.Hand) |
| 14 | WPW10132940 Whirlpool Dishwasher Screw |
| 14 | 4455803 Whirlpool Oven Bracket |
| 19 | Shield, Heat |
| 20 | Retainer, Glass |
| 20 | WP4449809 Whirlpool Screw |
| 21 | Seal, Door Top |
| 23 | RETAINER,GLASS CLIP (BISCUIT) |
| 23 | Clip, Retainer (Black Model) |
| 23 | Retainer, Glass-Clip (Stainless Steel) |
| 23 | Clip, Retainer (White Model) |
| 24 | Glass, Inner |
