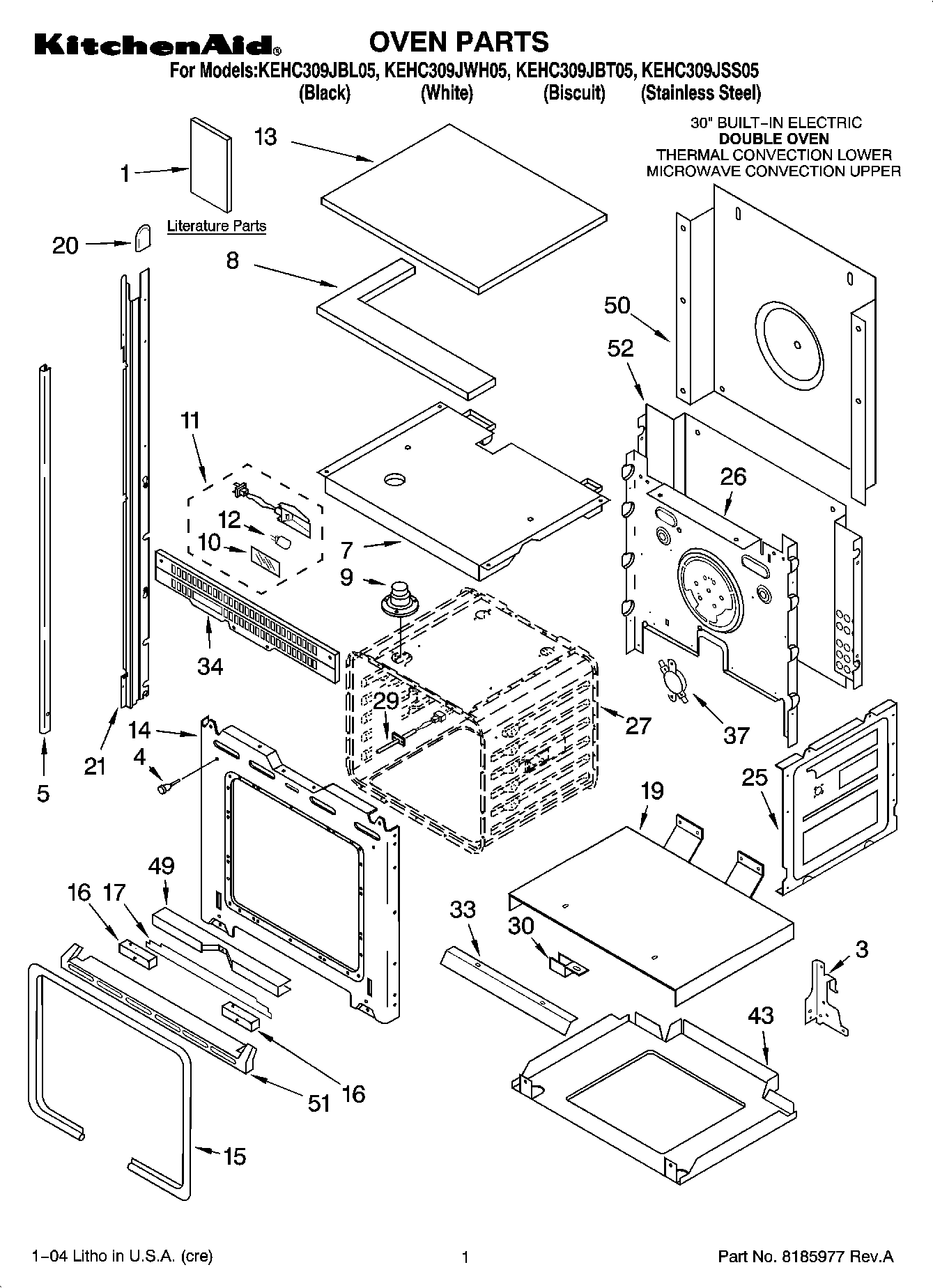

KEHC309JBT05 01 – OVEN PARTS

KEHC309JBT05 01 – OVEN PARTS

Written by

in

KEHC309JBT05 01 – OVEN PARTS

Products

PositionProduct
WPL ARI84846A5
1Safer Cooking Tips
1Literature Parts (Easy Set Guide)
1Literature Parts (Chart, High Speed Cooking)
1Literature Parts (Use & Care Guide (Microwave))
1Literature Parts (Cooking Guide (Lable))
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Installation Instructions)
1Literature Parts (Tech Sheet (Oven))
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Trim, Side Right Hand (White)
5Trim, Side (RH Stainless Steel)
5Trim, Side (LH Stainless Steel)
5Trim, Side Right Hand (Biscuit)
5(Trim, Side Left Hand) (Biscuit)
5WP8281236 Whirlpool Screw
5(Trim, Side Left Hand) (Black)
5Trim, Side Right Hand (Black)
5(Trim, Side Left Hand) (White)
7Top, Chassis
8WPL 4452492
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13WPL 4452491
14Screw
14Frame, Front
14WP4450118 Whirlpool Nut
15W11675844 Whirlpool Oven Gasket
16Spacer, Foam
17Insulation Bottom Vent
19Support, Insulation
20Cap, Spacer
21WP4448444 Whirlpool Grommet
21814375 Whirlpool Oven Rail Mount
21814376 Whirlpool Oven Rail Mount
25W10782197 Whirlpool Side Panel
26Back, Chassis
27WPL ARI84847A8
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
339760677 Whirlpool Oven Vent Deflector
34WPL 4451667
37WP9759243 Whirlpool Thermostat
43WPL 4455530
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
514452152 Whirlpool Oven Mounting Bracket
51WPL 4455447
51Trim, Bottom (Screw)
51WPL 4455445
51WPL 4455443
51WPL 4455147
52W11684730 Whirlpool Insulation
52WPL 4450365
52WPL 4451756
