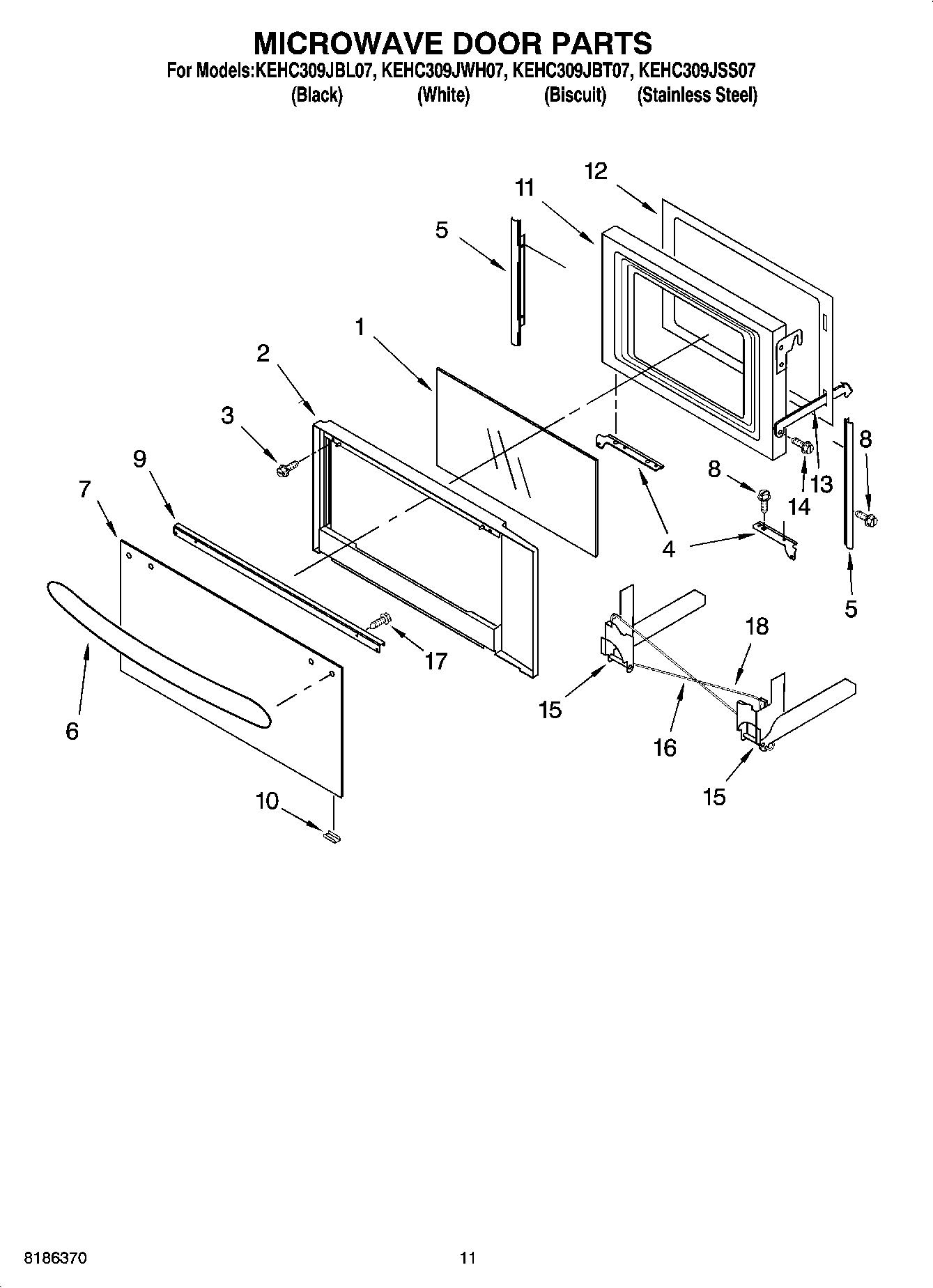

KEHC309JBT07 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

KEHC309JBT07 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Written by

in

KEHC309JBT07 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI84870A4
Wire (12 Ga. 150 c Black)
8303838 Whirlpool Oven Wire Harness
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL ARI84869A1
WPL ARI84868A7
8301909 Whirlpool Oven Wire Harness
WPL 8301923
WPL ARI84871A4
261900 Whirlpool Microwave Spray
4450950 Whirlpool Oven Conduit
WPL 591014
Wire (14 Ga. 150 c Yellow)
Spacer, Harness
Ground (M/W)
WP4448950 Whirlpool Screw
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
Wire, 25“ Roll (White 14 GA.)
4450800 Whirlpool Oven Screw
4452400 Whirlpool Microwave Wire Harness
Wire, 25` Roll (Black 14 Ga.)
WP4449809 Whirlpool Screw
350930 Whirlpool White Spray Paint
Wire, 25` Roll (Red 14 Ga.)
16515 Whirlpool Clip
72017 Whirlpool Appliance Touch-Up Paint White
1Glass, Middle
2WP8303556 Whirlpool Microwave Door Frame
3WP4450038 Whirlpool Screw
4Bracket, Mounting (Left Side)
4Bracket, Mounting (Right Side)
5Filler, Side
5Filler, Side (Left Side)
6Handle, Door (Biscuit)
6Handle, Door (Black)
6Door Handle (Stainless Steel)
6Handle, Door (White)
7WP4452259 Whirlpool Door Glass
7Glass, Outer (Biscuit)
7Glass, Outer (White)
7Glass, Outer (Black)
9Bracket, Handle
10Retainer, Glass-Clip (Stainless Steel)
10Clip, Retainer (Black Model)
10RETAINER,GLASS CLIP (BISCUIT)
10Clip, Retainer (White Model)
11Plate, Door
12Frame, Inner
13Strap, Door
14Screw
15WP4375324 Whirlpool Microwave Door Hinge
15WP4375323 Whirlpool Microwave Door Hinge
16WP4452398 Whirlpool Microwave Door Spring
16WP4451009 Whirlpool Microwave Spring
17WPW10132940 Whirlpool Dishwasher Screw
18WP4452395 Whirlpool Spring Assembly
