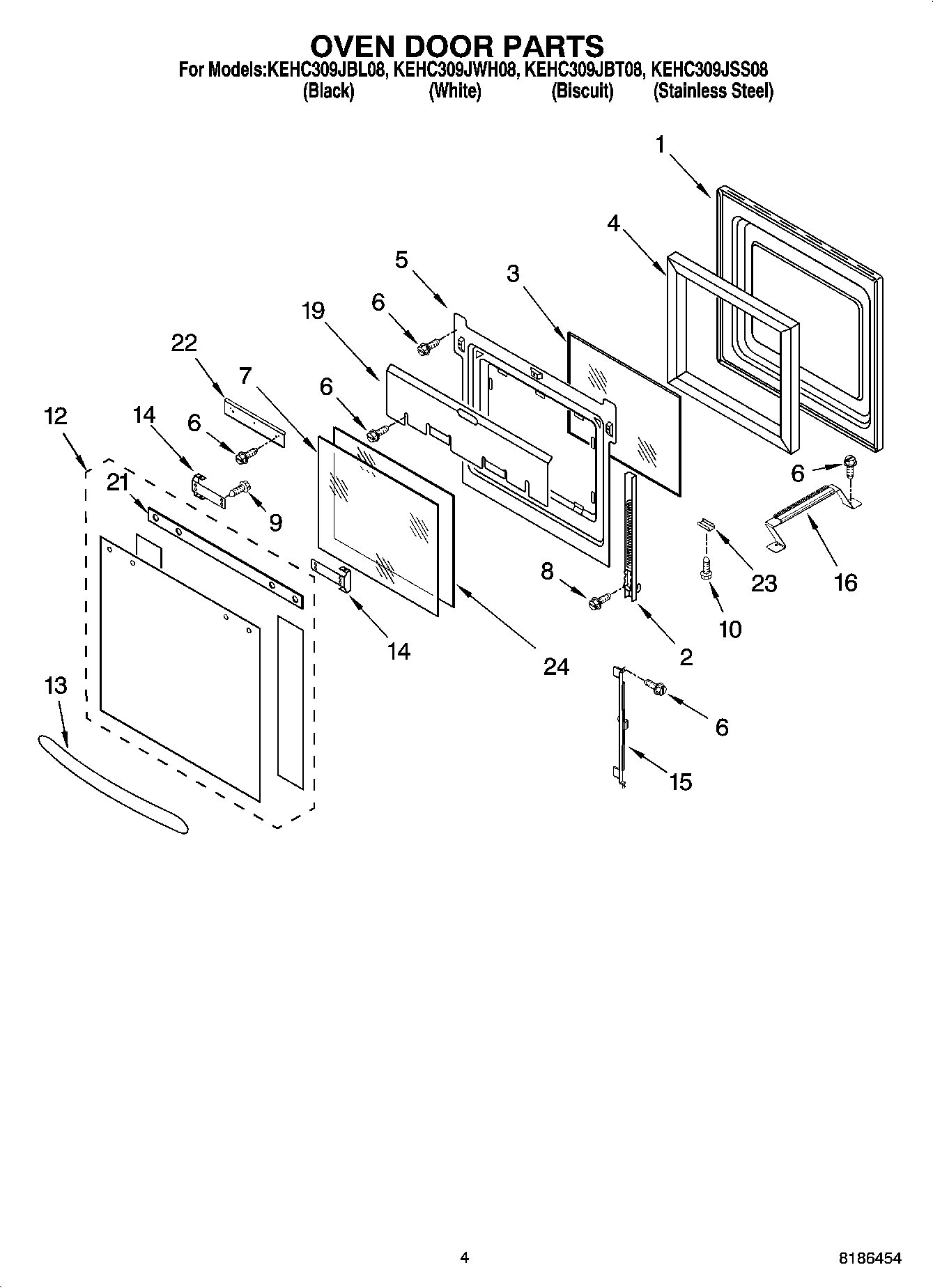

KEHC309JBT08 03 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760576 Whirlpool Door Hinge (Left)
2	HINGE-DOOR
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	WP4457132 Whirlpool Retainer
6	WP4449809 Whirlpool Screw
7	WP9759225 Whirlpool Inner Door Glass
8	WP4449743 Whirlpool Screw
9	WPW10132940 Whirlpool Dishwasher Screw
10	WP3400832 Whirlpool Screw
12	Door Glass, Assy (Black)
12	Door Glass, Assy (White)
12	W10401225 Whirlpool Oven Outer Door Glass
12	Door Glass, Assy (Biscuit)
13	Door Handle (Stainless Steel)
13	Handle, Door (Black)
13	Handle, Door (Biscuit)
13	Handle, Door (White)
14	Bracket, Handle (L.Hand)
14	4455803 Whirlpool Oven Bracket
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	Shield, Heat
21	Seal, Door Top
22	4457114 Whirlpool Oven Heat Shield
23	RETAINER,GLASS CLIP (BISCUIT)
23	Retainer, Glass-Clip (Stainless Steel)
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	Glass, Inner
