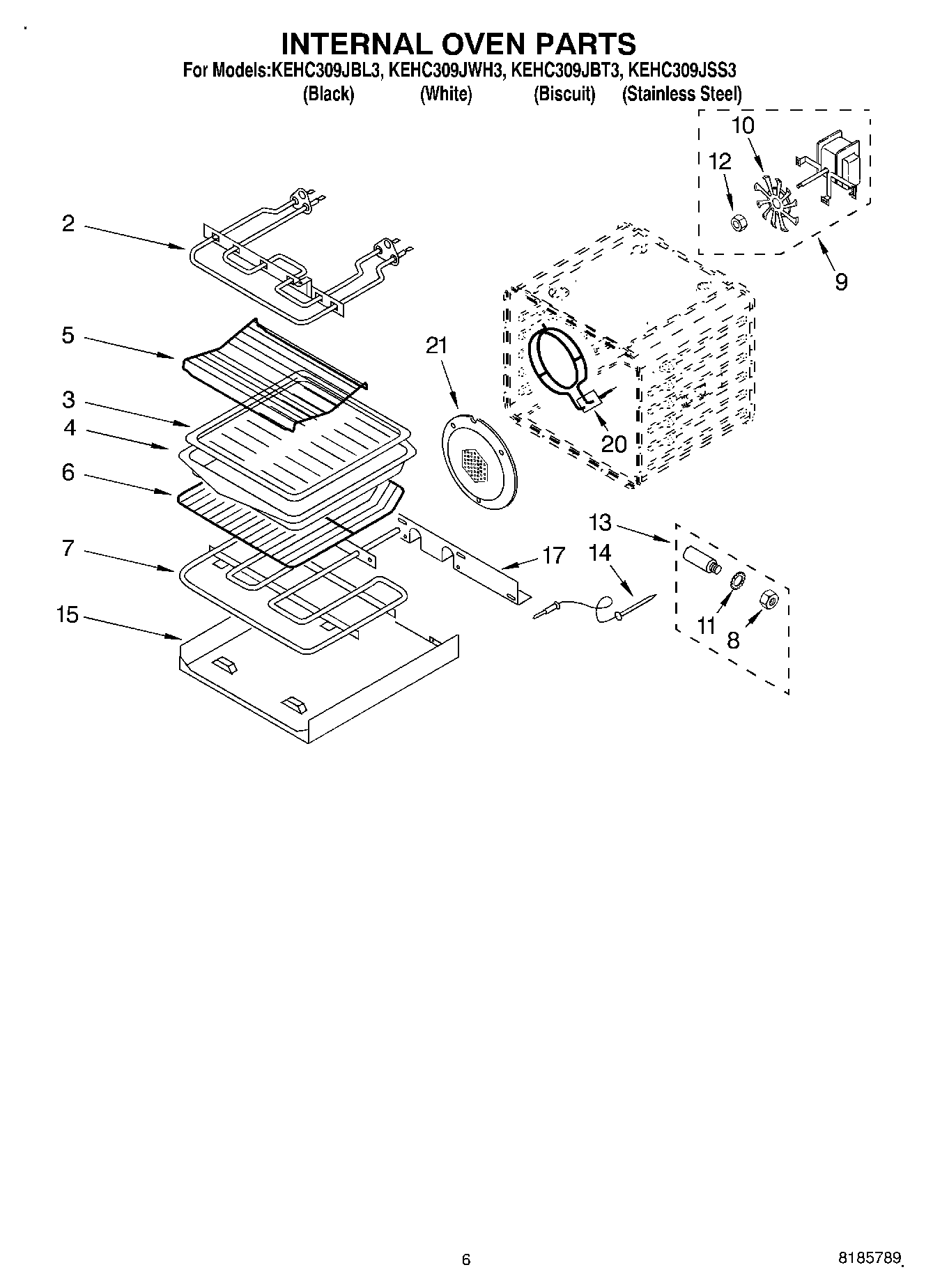

KEHC309JBT3 05 – INTERNAL OVEN

Products

Position	Product
2	WPW10207400 Whirlpool Broil Element
3	4396923 Whirlpool Broil Pan Set Gray Porcelain
5	Rack, Roasting
6	WPW10179152 Whirlpool Rack Oven
7	4451175 Whirlpool Bake Element
8	WP9755546 Whirlpool Locknut
9	Motor Convection
10	WP4452226 Whirlpool Convection Fan
11	WP9755547 Whirlpool Lockwasher
12	Nut
13	8186589 Whirlpool Jack Probe
14	WP9755542 Whirlpool Oven Meat Probe
15	Tray, Hidden Bake
17	4450039 Whirlpool Oven Access Cover
17	WP4449809 Whirlpool Screw
20	WP9760769 Whirlpool Element Assembly
21	WP4449154 Whirlpool Screw
21	WPW10160821 Whirlpool Fan Cover
