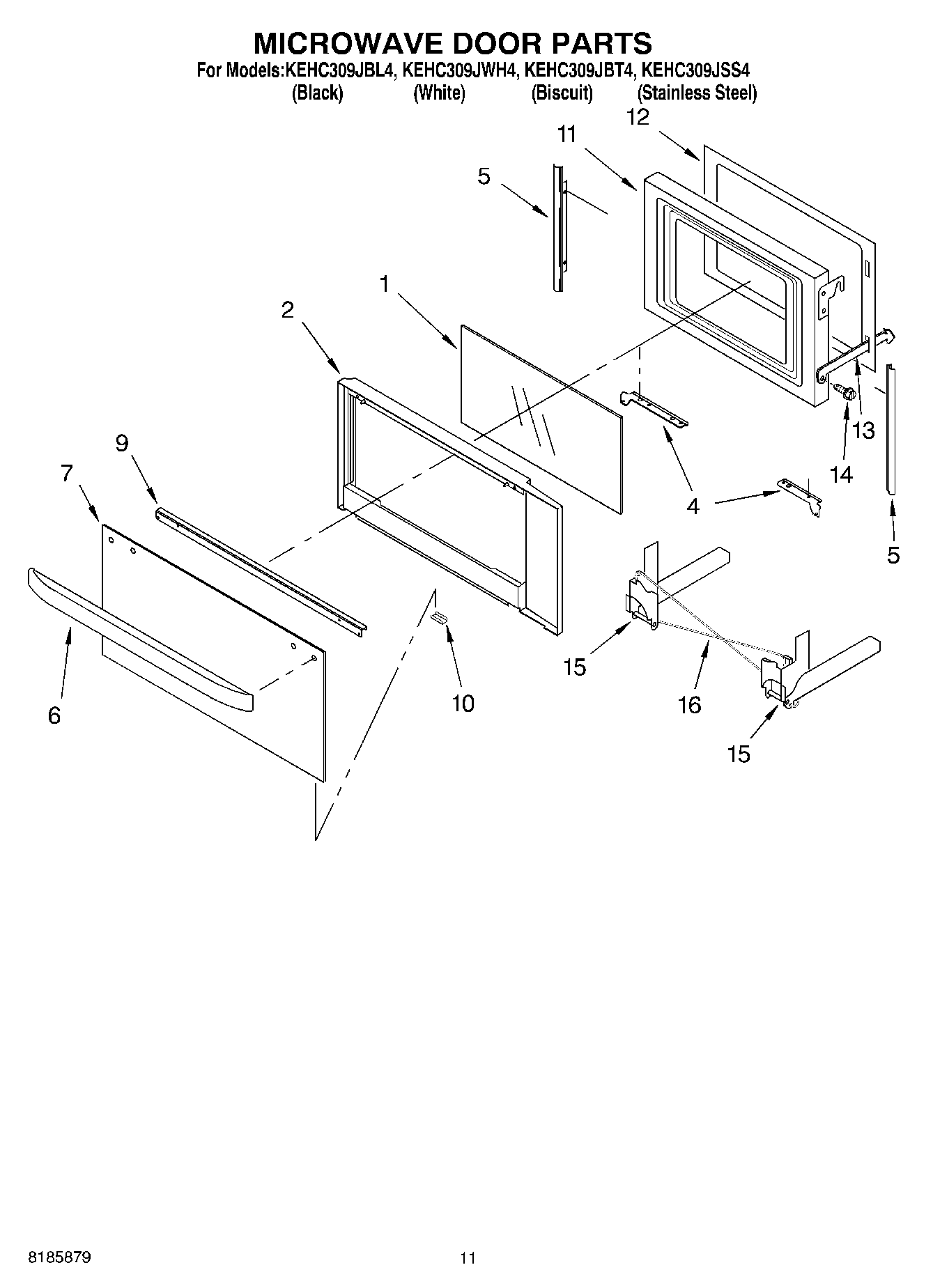

KEHC309JBT4 09 – MICROWAVE DOOR

Products

Position	Product
1	Glass, Middle
2	WP4450038 Whirlpool Screw
2	WP8303556 Whirlpool Microwave Door Frame
4	Bracket, Mounting (Right Side)
4	Bracket, Mounting (Left Side)
5	Filler, Side (Left Side)
5	Filler, Side
6	Handle, Door (Biscuit)
6	Handle, Door (White)
6	Handle, Door (Black)
6	Handle, Door (Stainless)
7	WP4452259 Whirlpool Door Glass
7	Glass, Outer (Biscuit)
7	Glass, Outer (White)
7	Glass, Outer (Black)
9	Bracket, Handle
9	Screw
10	Clip, Retainer (Black Model)
10	Clip, Retainer (White Model)
11	Plate, Door
12	Frame, Inner
13	Strap, Door
14	Screw
15	WP4375323 Whirlpool Microwave Door Hinge
15	WP4375324 Whirlpool Microwave Door Hinge
16	WPL 591014
16	Wire (14 Ga. 200 c Brown)
16	18 Ga. 80~c Rating (Red)
16	1
16	4450950 Whirlpool Oven Conduit
16	WPL 4455744
16	261900 Whirlpool Microwave Spray
16	WPW10339879 Whirlpool Wire Tie
16	WP4451009 Whirlpool Microwave Spring
16	Wire (12 Ga. 150 c Black)
16	Wire (14 Ga. 150 c Yellow)
16	814381 Whirlpool Pin
16	WP482338 Whirlpool Refrigerator Adhesive
16	72032 Whirlpool Touch Up Paint Black
16	285006 Whirlpool Spray
16	4450800 Whirlpool Oven Screw
16	Wire, 25“ Roll (White 14 GA.)
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25` Roll (Black 14 Ga.)
16	WP4449809 Whirlpool Screw
16	72017 Whirlpool Appliance Touch-Up Paint White
16	WP4448950 Whirlpool Screw
16	Ground (M/W)
16	Wire (14 Ga. 150 c Orange)
16	Wire (14 Ga. 150 c Green)
16	Wire (14 Ga. 150 c Brown)
16	Wire (14 Ga. 150 c Blue)
16	WP261869 Whirlpool Microwave Paint
16	242831 Whirlpool Oven Wire
16	Spacer, Harness
16	16515 Whirlpool Clip
16	4452400 Whirlpool Microwave Wire Harness
16	WPL 4452239
16	350930 Whirlpool White Spray Paint
