KEHC309JSS0 01 – OVEN, LITERATURE

KEHC309JSS0 01 – OVEN, LITERATURE

Written by

in

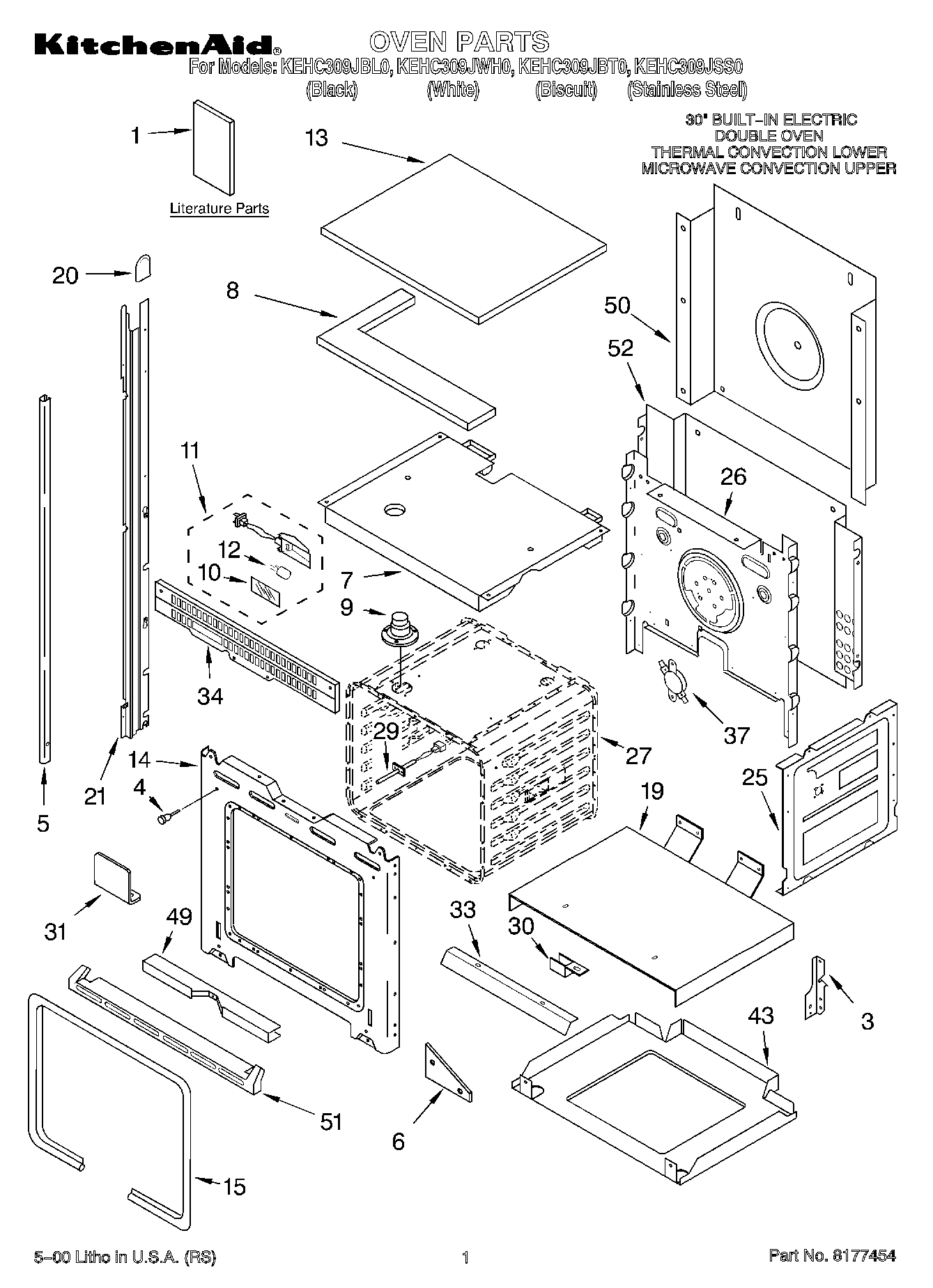

KEHC309JSS0 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Use & Care Guide (Microwave))
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Tech Sheet (Oven))
1Literature Parts (Cooking Guide (Lable))
1Literature Parts (Installation Instructions)
1Literature Parts (Cookbook (T/C Oven))
1Literature Parts (Easy Set Guide)
3Reciever, Hinge (Left Hand)
3Reciever, Hinge (Right Hand)
44448520 Whirlpool Oven Bumper
5Trim, Side Right Hand (Black)
5Trim, Side (RH Stainless Steel)
5(Trim, Side Left Hand) (Biscuit)
5Trim, Side (LH Stainless Steel)
5WP8281236 Whirlpool Screw
5Trim, Side (White)
5(Trim, Side Left Hand) (Black)
5Trim, Side Right Hand (Biscuit)
5Trim, Side Right Hand (White)
5(Trim, Side Left Hand) (White)
6WP4455509 Whirlpool Support Bracket
7Top, Chassis
8WPL 4452492
9W10861715 Whirlpool Vent Tube
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13WPL 4452491
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
20Cap, Spacer
21814375 Whirlpool Oven Rail Mount
21814376 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27WPL ARI84885A1
29Sensor
30WPL 4449845
31Bracket, Support
339760677 Whirlpool Oven Vent Deflector
34Spacer, Foam
34WPL 4451667
34WP4450038 Whirlpool Screw
37WP9759243 Whirlpool Thermostat
43WPL 4455530
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
51WPL 4455443
51WPL 4455147
51Screw, (2)
514452152 Whirlpool Oven Mounting Bracket
51WPL 4455445
51WPL 4455447
52W11684730 Whirlpool Insulation
52WPL 4450365
52WPL 4451756
