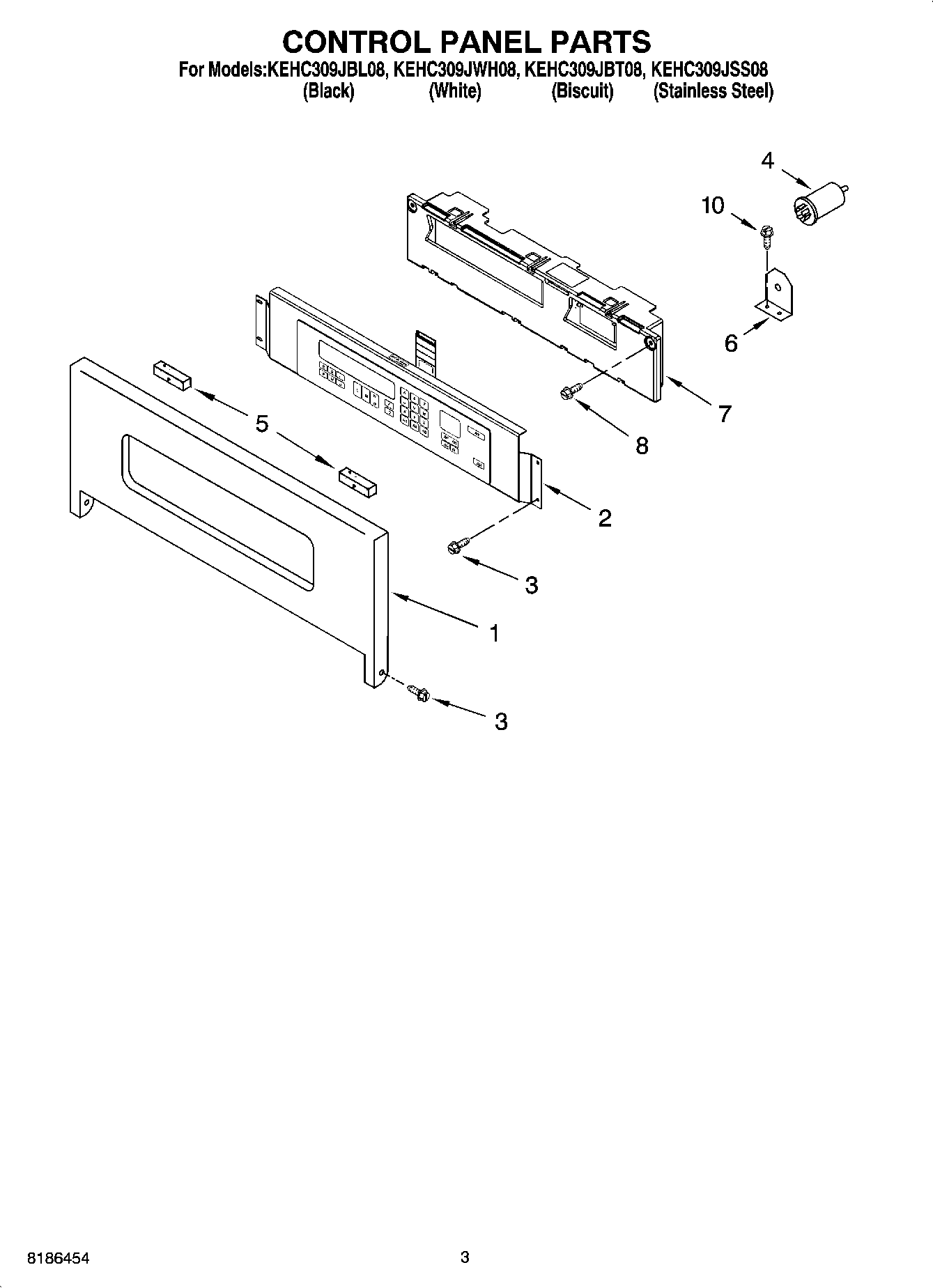

KEHC309JSS08 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Panel, Control (Biscuit)
1Panel, Control (White)
1Panel, Control (Black)
1Panel, Control (Stainless)
2Switch, Membrane (Biscuit)
2Switch, Membrane (Stainless Steel)
2Switch, Membrane (Black)
2Switch, Membrane (White)
3WP3400832 Whirlpool Screw
4Filter
5Spacer, Foam
6Bracket, Filter
7Assy, Control
8WP4449745 Whirlpool Screw
10WP4449809 Whirlpool Screw
