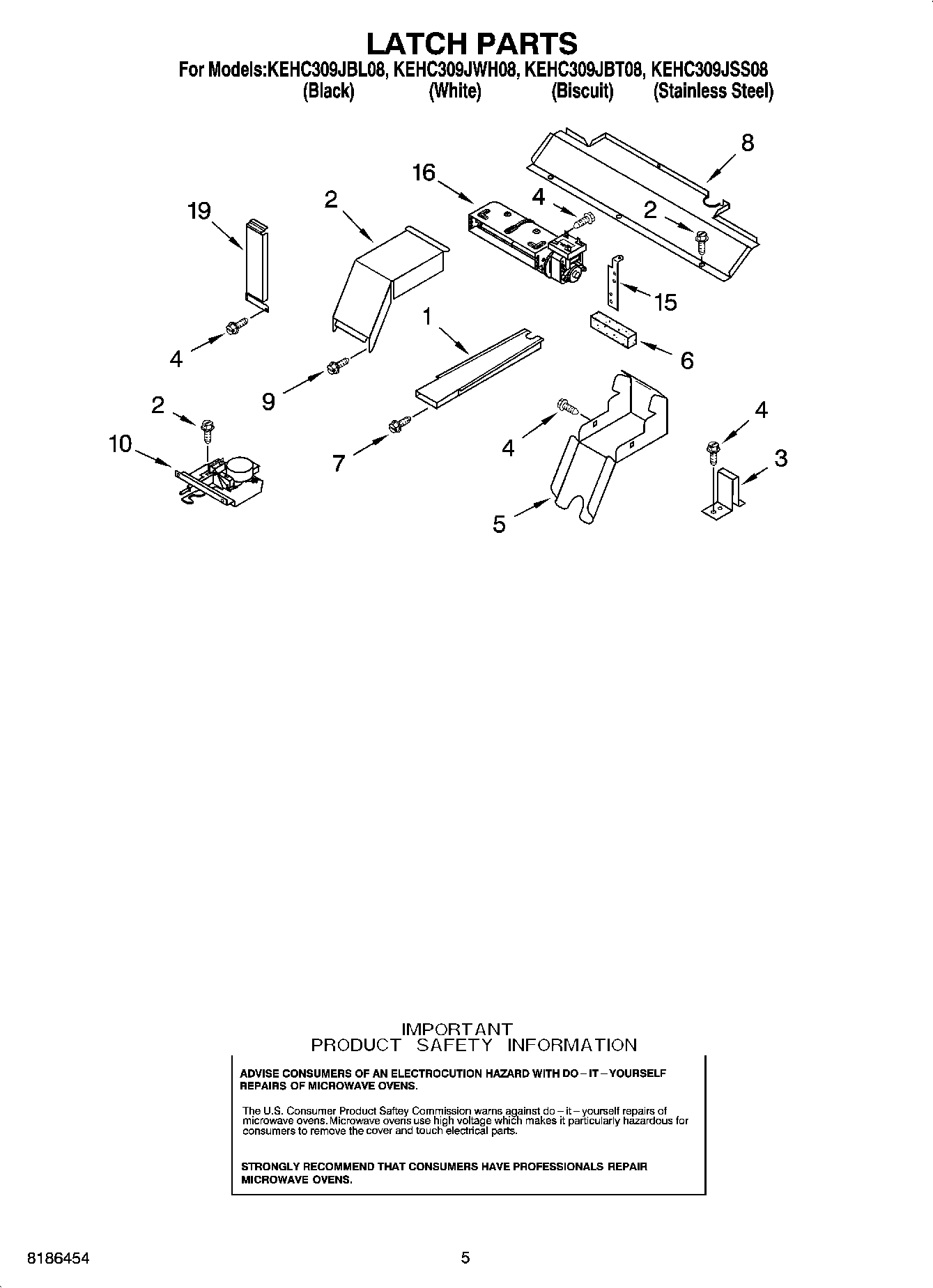

KEHC309JSS08 04 – LATCH PARTS

Products

Position	Product
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	Bracket, Combo Chassis
4	WP4449809 Whirlpool Screw
5	4455177 Whirlpool Oven Bottom Elbow
6	W10491987 Whirlpool Foam Seal
7	Screw
8	Baffle, Rear
9	WP4449154 Whirlpool Screw
10	WP9760889 Whirlpool Door Latch
15	4455191 Whirlpool Oven Mounting Plate
16	WPW10016550 Whirlpool Blower Cooling Fan
19	Extension Filler
