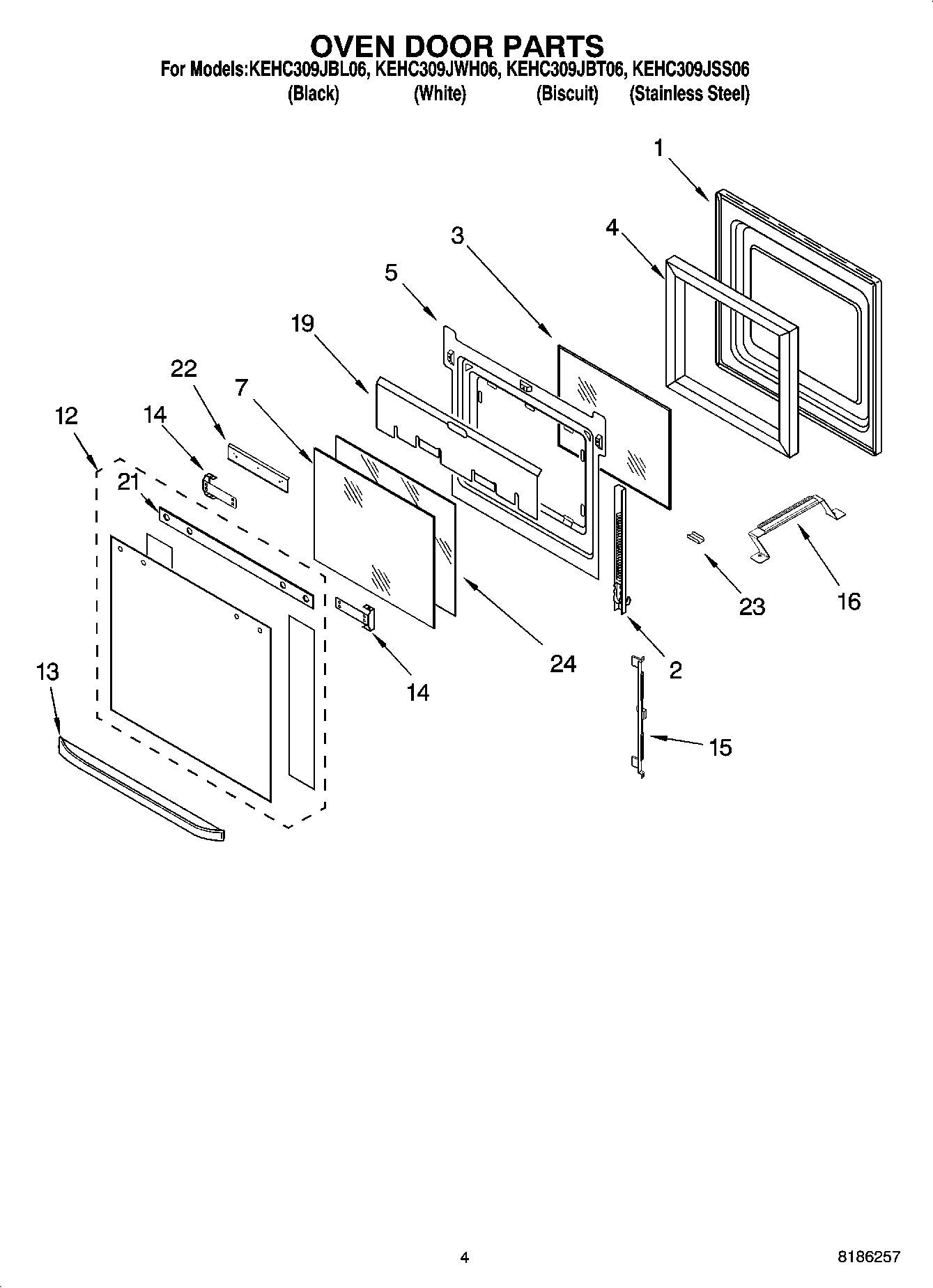

KEHC309JWH06 03 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760578 Whirlpool Oven Left Door Hinge
2	HINGE-DOOR
2	WP9760577 Whirlpool Oven Right Door Hinge
2	WP4449743 Whirlpool Screw
2	WP9760576 Whirlpool Door Hinge (Left)
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	WP4457132 Whirlpool Retainer
7	WP9759225 Whirlpool Inner Door Glass
12	Door Glass, Assy (White)
12	W10401225 Whirlpool Oven Outer Door Glass
12	Door Glass, Assy (Biscuit)
12	Door Glass, Assy (Black)
13	Door Handle (Stainless Steel)
13	Handle, Door (Black)
13	Handle, Door (Biscuit)
13	Handle, Door (White)
14	WPW10132940 Whirlpool Dishwasher Screw
14	Bracket, Handle (L.Hand)
14	4455803 Whirlpool Oven Bracket
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	Shield, Heat
19	WP4449809 Whirlpool Screw
21	Seal, Door Top
22	4457114 Whirlpool Oven Heat Shield
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	WP3400832 Whirlpool Screw
23	Retainer, Glass-Clip (Stainless Steel)
23	RETAINER,GLASS CLIP (BISCUIT)
24	Glass, Inner
