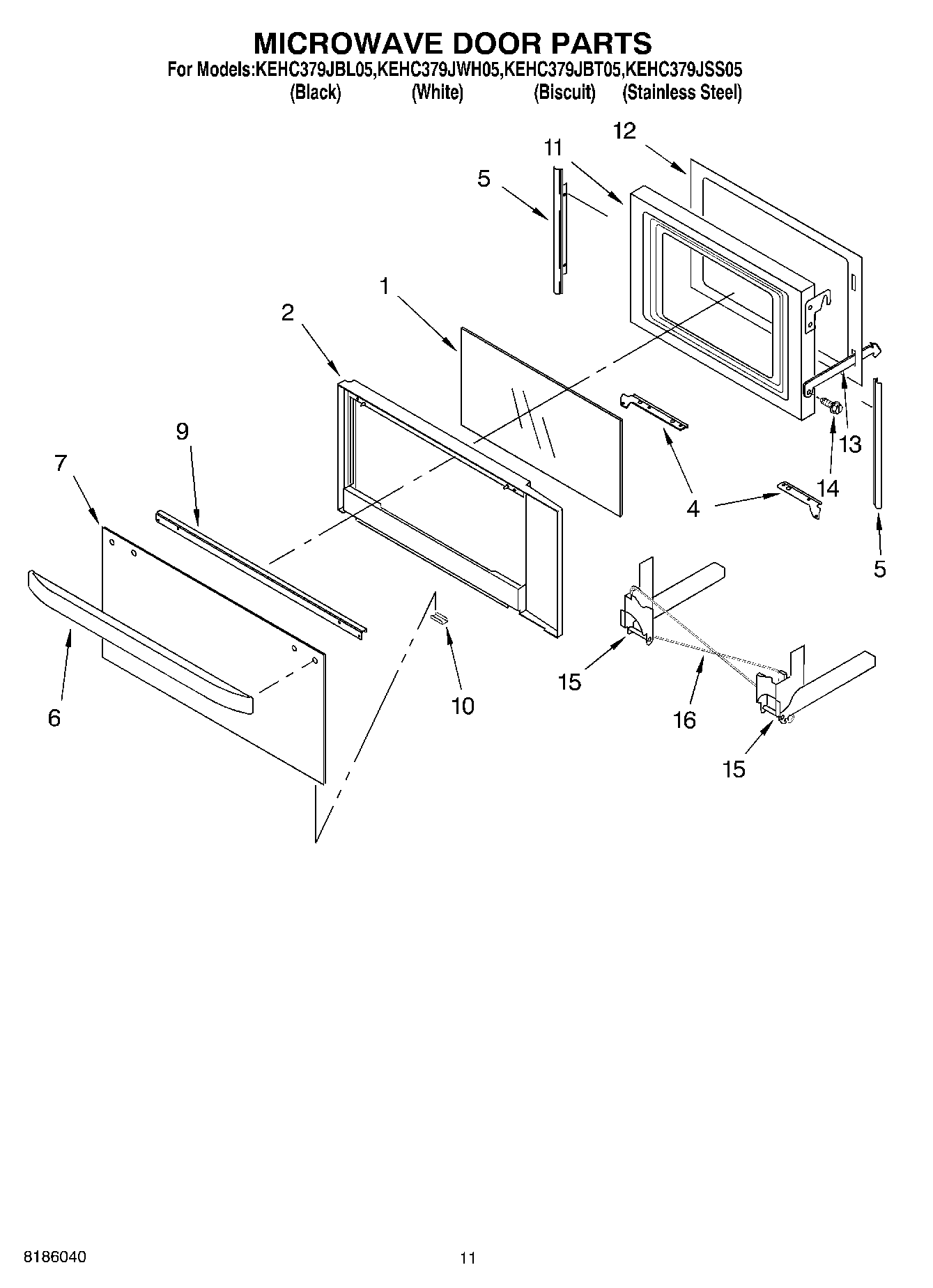

KEHC379JBL05 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

KEHC379JBL05 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Written by

in

KEHC379JBL05 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI84980A3
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 200 c Brown)
1
WPL ARI84979A4
WPL ARI84978A7
WPL ARI84977A5
8301909 Whirlpool Oven Wire Harness
WPL 8301923
261900 Whirlpool Microwave Spray
WPL ARI84981A9
4450950 Whirlpool Oven Conduit
WPL 591014
Spacer, Harness
16515 Whirlpool Clip
72032 Whirlpool Touch Up Paint Black
Filler Kit (BL)
Filler Kit (WH)
Filler Kit (AL)
Ground (M/W)
285006 Whirlpool Spray
4452400 Whirlpool Microwave Wire Harness
WP4448950 Whirlpool Screw
WPW10339879 Whirlpool Wire Tie
4450800 Whirlpool Oven Screw
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Black 14 Ga.)
814381 Whirlpool Pin
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
WP482338 Whirlpool Refrigerator Adhesive
350930 Whirlpool White Spray Paint
1Glass, Middle
2WP4450038 Whirlpool Screw
2Frame, Door
4Bracket, Mounting (Right Side)
4Bracket, Mounting (Left Side)
5Filler, Side
6Handle, Door (Black)
6Door Handle (Stainless Steel)
6Handle, Door (White)
6Handle, Door (Biscuit)
7Glass, Outer (Biscuit)
7Glass, Outer (Black)
7Glass, Outer (Stainless)
7Glass, Outer (White)
9Screw
9Bracket, Handle
10Clip, Retainer (Black Model)
10Clip, Retainer (White Model)
11Plate, Door
12Frame, Inner
13Strap, Door
14Screw
15WP4375324 Whirlpool Microwave Door Hinge
15WP4375323 Whirlpool Microwave Door Hinge
16WP4452398 Whirlpool Microwave Door Spring
16WP4451008 Whirlpool Microwave Spring
