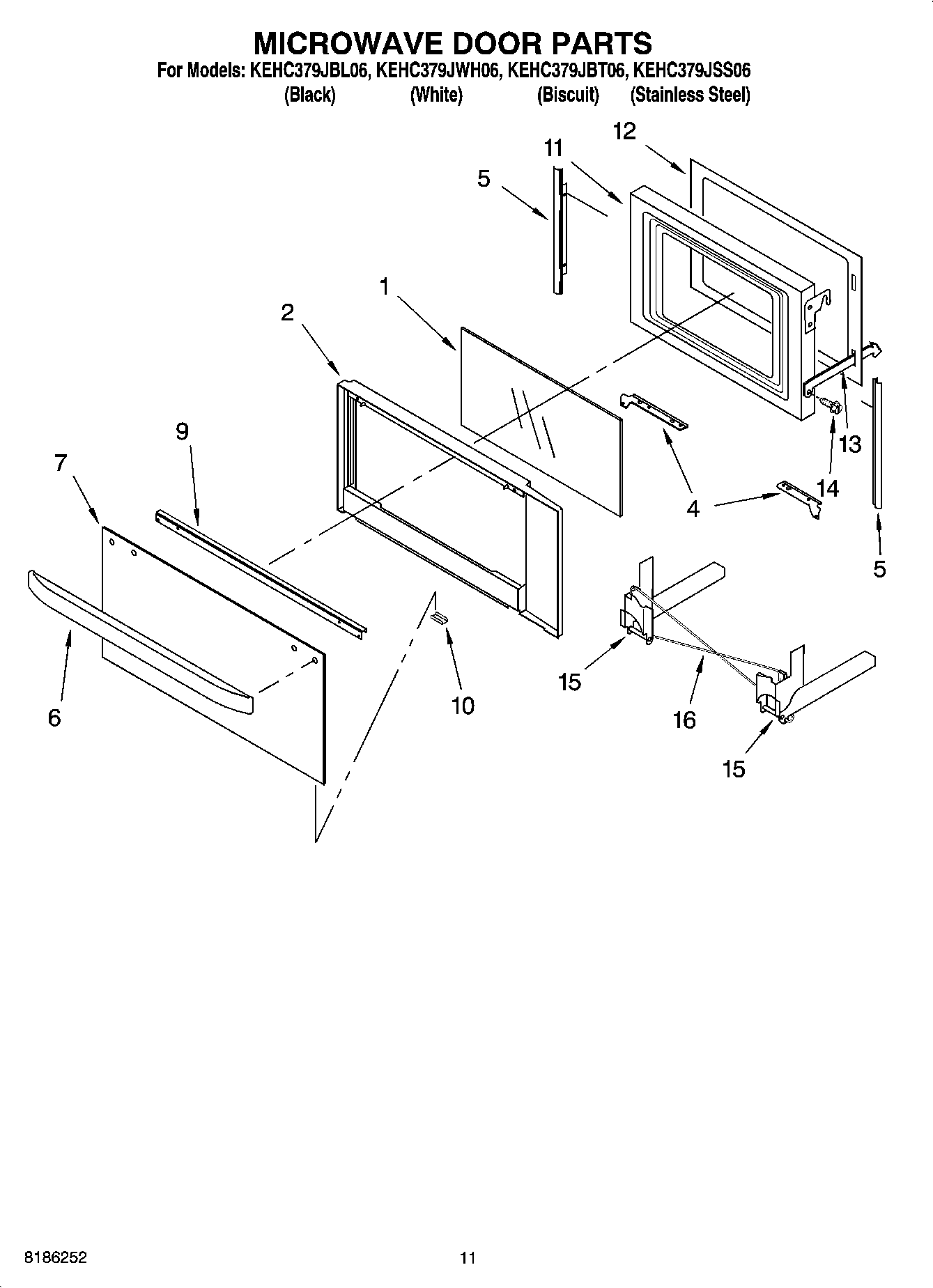

KEHC379JBL06 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

KEHC379JBL06 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Written by

in

KEHC379JBL06 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI84987A6
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Orange)
Spacer, Harness
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
WPL ARI84986A8
WPL ARI84985A2
8301909 Whirlpool Oven Wire Harness
WPL 8301923
261900 Whirlpool Microwave Spray
WPL ARI84988A2
4450950 Whirlpool Oven Conduit
WPL 591014
1
16515 Whirlpool Clip
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
Filler Kit (AL)
Filler Kit (WH)
Filler Kit (BL)
WP4448950 Whirlpool Screw
Wire, 25“ Roll (White 14 GA.)
4450800 Whirlpool Oven Screw
WPW10339879 Whirlpool Wire Tie
WP482338 Whirlpool Refrigerator Adhesive
72032 Whirlpool Touch Up Paint Black
Ground (M/W)
350930 Whirlpool White Spray Paint
4452400 Whirlpool Microwave Wire Harness
Wire, 25` Roll (Black 14 Ga.)
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
814381 Whirlpool Pin
1Glass, Middle
2Frame, Door
2WP4450038 Whirlpool Screw
4Bracket, Mounting (Right Side)
4Bracket, Mounting (Left Side)
5Filler, Side
6Handle, Door (Black)
6Handle, Door (Biscuit)
6Handle, Door (White)
6Door Handle (Stainless Steel)
7Glass, Outer (Stainless)
7Glass, Outer (Biscuit)
7Glass, Outer (White)
7Glass, Outer (Black)
9Bracket, Handle
9Screw
10Clip, Retainer (White Model)
10Clip, Retainer (Black Model)
11Plate, Door
12Frame, Inner
13Strap, Door
14Screw
15WP4375323 Whirlpool Microwave Door Hinge
15WP4375324 Whirlpool Microwave Door Hinge
16WP4452398 Whirlpool Microwave Door Spring
16WP4451008 Whirlpool Microwave Spring
