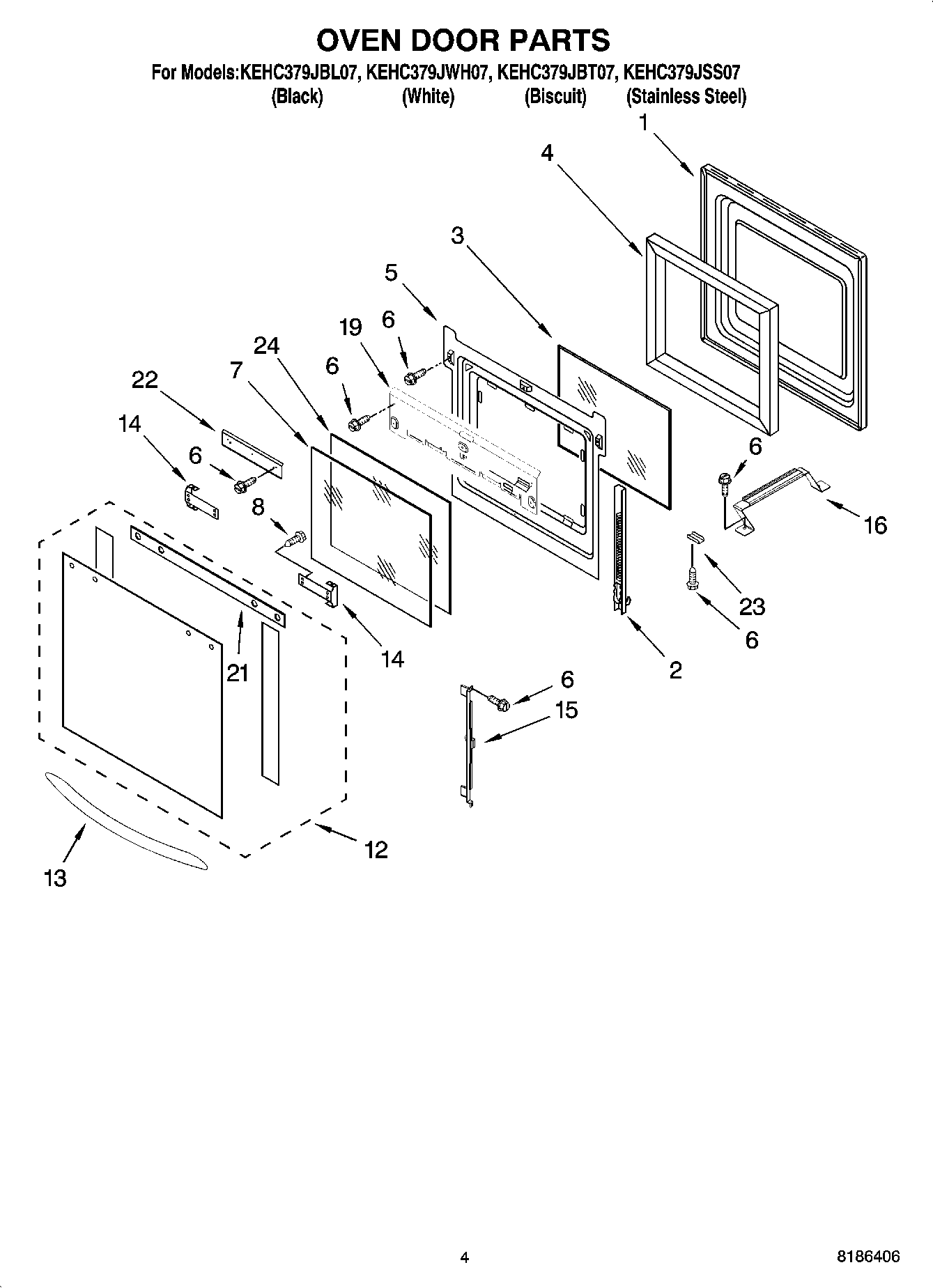

KEHC379JBT07 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	WP9760571 Whirlpool Door Hinge
2	WP9760576 Whirlpool Door Hinge (Left)
2	HINGE-DOOR
2	WP9760572 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
6	WP4449809 Whirlpool Screw
7	Glass, Inner
8	WPW10132940 Whirlpool Dishwasher Screw
12	Glass, Outer (White)
12	Glass, Outer (Black)
12	WP4452315 Whirlpool Door Glass
12	Door Glass, Assy (Biscuit)
13	Handle, Door (Biscuit)
13	Handle, Door (White)
13	Handle, Door (Black)
13	Door Handle (Stainless Steel)
14	4455803 Whirlpool Oven Bracket
14	Bracket, Handle (L.Hand)
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	Shield, Heat
21	Seal, Top
22	Shield, Heat (Bottom)
23	Retainer, Glass-Clip (Stainless Steel)
23	Clip, Retainer (Black Model)
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (White Model)
24	WP9759227 Whirlpool Glass Door
