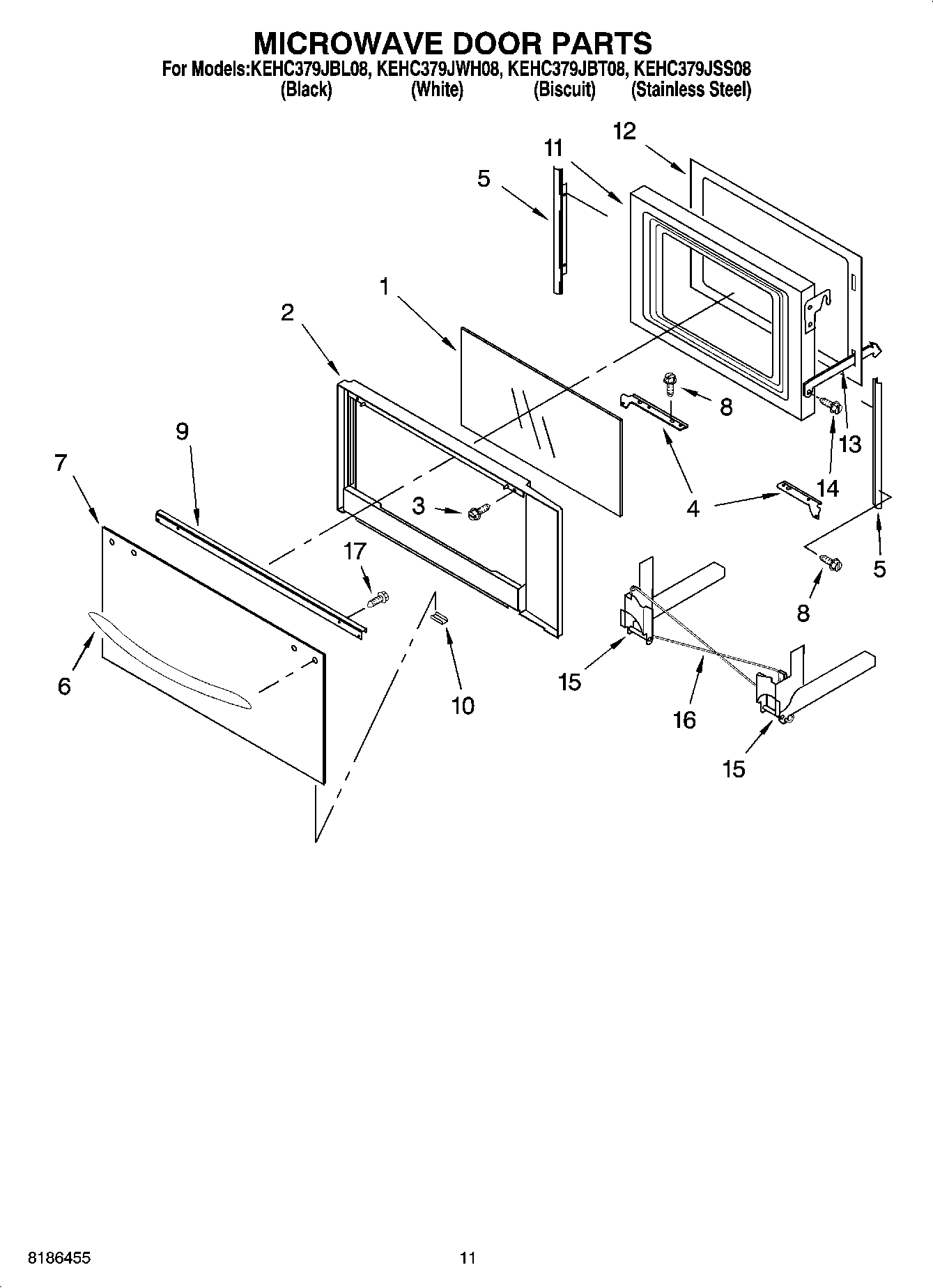

KEHC379JBT08 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

KEHC379JBT08 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Written by

in

KEHC379JBT08 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI85041A9
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL 591014
WPL ARI85040A4
WPL ARI85039A9
8301909 Whirlpool Oven Wire Harness
WPL 8301923
8303838 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
WPL ARI85042A7
4450950 Whirlpool Oven Conduit
Spacer, Harness
Filler Kit (AL)
4452400 Whirlpool Microwave Wire Harness
4450800 Whirlpool Oven Screw
Ground (M/W)
72032 Whirlpool Touch Up Paint Black
Filler Kit (WH)
Filler Kit (BL)
WP4448950 Whirlpool Screw
Wire, 25` Roll (Red 14 Ga.)
814381 Whirlpool Pin
Wire, 25` Roll (Black 14 Ga.)
WPW10339879 Whirlpool Wire Tie
16515 Whirlpool Clip
285006 Whirlpool Spray
WP482338 Whirlpool Refrigerator Adhesive
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
WP4449809 Whirlpool Screw
1Glass, Middle
2Frame, Door
3WP4450038 Whirlpool Screw
4Bracket, Mounting (Right Side)
4Bracket, Mounting (Left Side)
5Filler, Side
6Door Handle (Stainless Steel)
6Handle, Door (Biscuit)
6Handle, Door (White)
6Handle, Door (Black)
7Glass, Outer (White)
7Glass, Outer (Biscuit)
7Glass, Outer (Black)
7Glass, Outer (Stainless)
9Bracket, Handle
10Clip, Retainer (White Model)
10Clip, Retainer (Black Model)
11Plate, Door
12Frame, Inner
13Strap, Door
14Screw
15WP4375323 Whirlpool Microwave Door Hinge
15WP4375324 Whirlpool Microwave Door Hinge
16WP4451008 Whirlpool Microwave Spring
16WP4452396 Whirlpool Microwave Spring
17Screw
