KEHC379JSS0 01 – OVEN, LITERATURE

KEHC379JSS0 01 – OVEN, LITERATURE

Written by

in

KEHC379JSS0 01 – OVEN, LITERATURE

Products

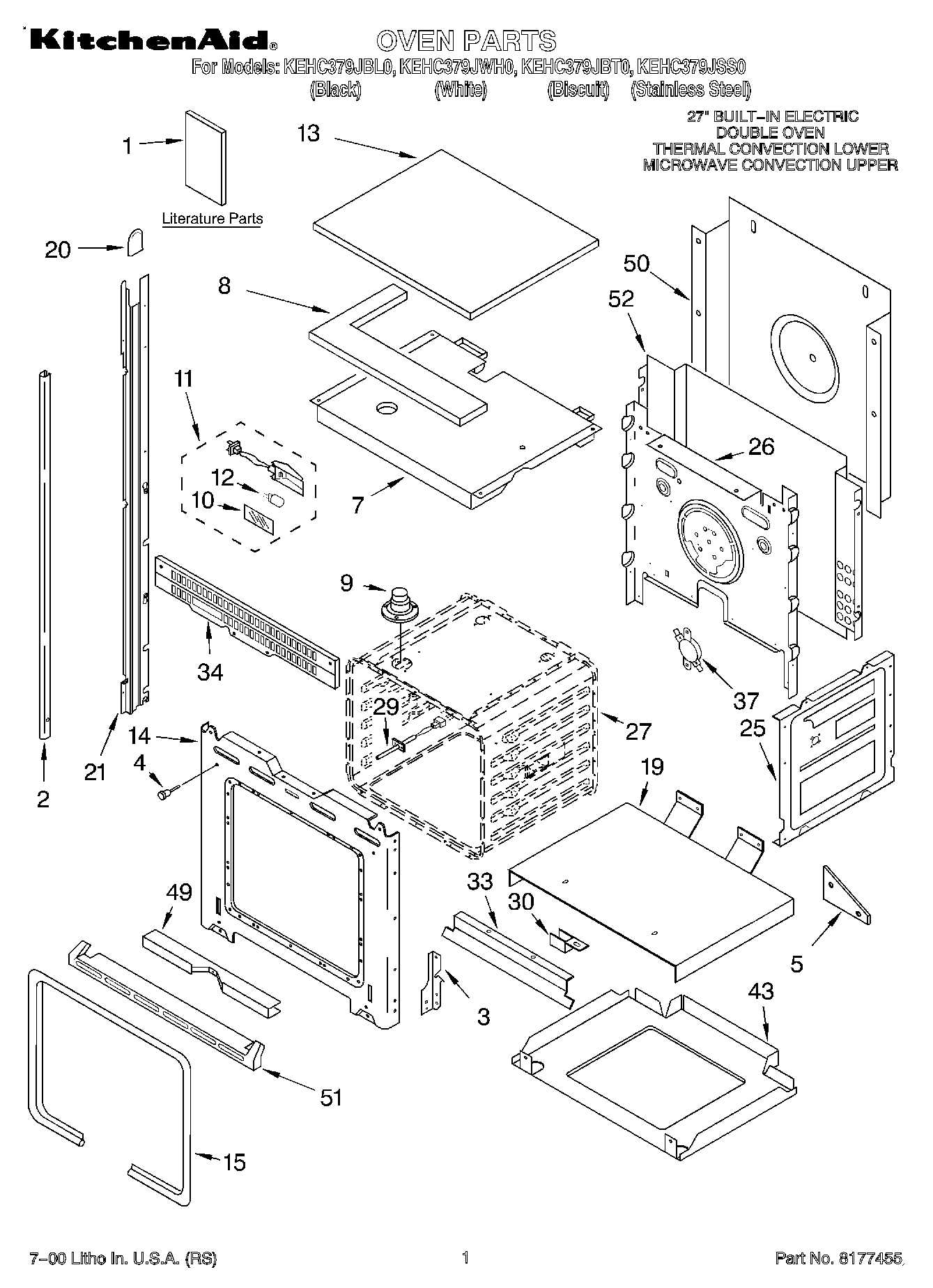

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1Literature Parts (Cookbook (T/C Oven))
1Literature Parts (Tech Sheet (Oven))
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Use & Care Guide (Microwave))
1Literature Parts (Easy Set Guide)
1Literature Parts (Chart, High Speed Cooking)
1Literature Parts (Guide, Easy Use (Microwave))
2Trim, Side Right Hand (White)
2Trim, Side (RH Stainless Steel)
2Trim, Side (LH Stainless Steel)
2Trim, Side Right Hand (Black)
2(Trim, Side Left Hand) (Black)
2WP8281236 Whirlpool Screw
2(Trim, Side Left Hand) (White)
2Trim, Side (White)
2Trim, Side Right Hand (Biscuit)
2(Trim, Side Left Hand) (Biscuit)
3Reciever, Hinge (Right Hand)
3Reciever, Hinge (Left Hand)
44448520 Whirlpool Oven Bumper
5WP4455509 Whirlpool Support Bracket
7Top, Chassis
8WPL 4452492
9W10861715 Whirlpool Vent Tube
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13WPL 4452491
14Screw
14Frame, Front
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
20Cap, Spacer
21814376 Whirlpool Oven Rail Mount
21814375 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27WPL ARI85047A6
29Sensor
30WPL 4449845
33Deflector, Vent
34WP4450038 Whirlpool Screw
34WP8304106 Whirlpool Oven Vent
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
51WPL 4455446
51Screw, (2)
51WPL 4455146
514452152 Whirlpool Oven Mounting Bracket
51Trim, Bottom (White)
51Trim, Bottom (Black)
52WPL 4451755
52WPL 4450364
52WPL 4449315
52Insulation, Bottom Vent
