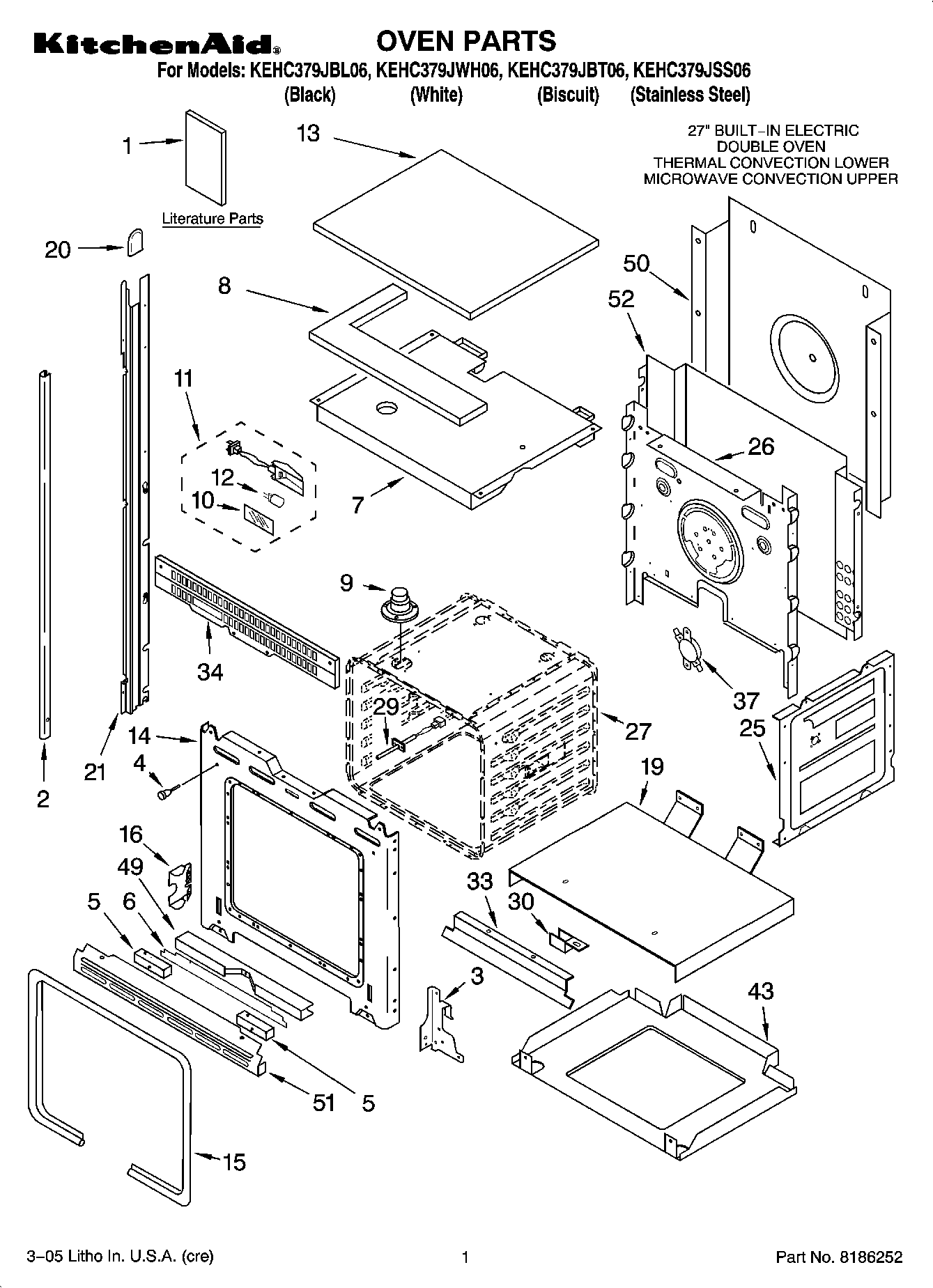

KEHC379JSS06 01 – OVEN PARTS

KEHC379JSS06 01 – OVEN PARTS

Written by

in

KEHC379JSS06 01 – OVEN PARTS

Products

PositionProduct
1Easy Set Guide
1Installation Instructions
1Cooking Guide (Lable)
1Use & Care Guide (Microwave)
1Tech Sheet (Oven)
1Chart, High Speed Cooking
1Safe Cooking Tips
1Label, Cooking Guide
1Use & Care Guide (Oven)
2(Trim, Side Left Hand) (Black)
2Trim, Side (RH Stainless Steel)
2Trim, Side (LH Stainless Steel)
2Trim, Side Right Hand (White)
2(Trim, Side Left Hand) (White)
2Trim, Side Right Hand (Black)
2WP8281236 Whirlpool Screw
2(Trim, Side Left Hand) (Biscuit)
2Trim, Side Right Hand (Biscuit)
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
6Insulation, Bottom Vent
7Top, Chassis
8WPL 4452492
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13WPL 4452491
14Frame, Front
14Screw
15WP4455381 Whirlpool Door Gasket
164452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
20Cap, Spacer
21814376 Whirlpool Oven Rail Mount
21814375 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
33Deflector, Vent
34WP3400832 Whirlpool Screw
34WP4450038 Whirlpool Screw
34WP8304106 Whirlpool Oven Vent
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
51WPL 4455446
51WPL 4455146
51Trim, Bottom (Screw)
51Trim, Bottom (Black)
51Trim, Bottom (White)
52WPL ARI85063A6
52WPL 4451755
52WPL 4449315
52WPL 4450364
