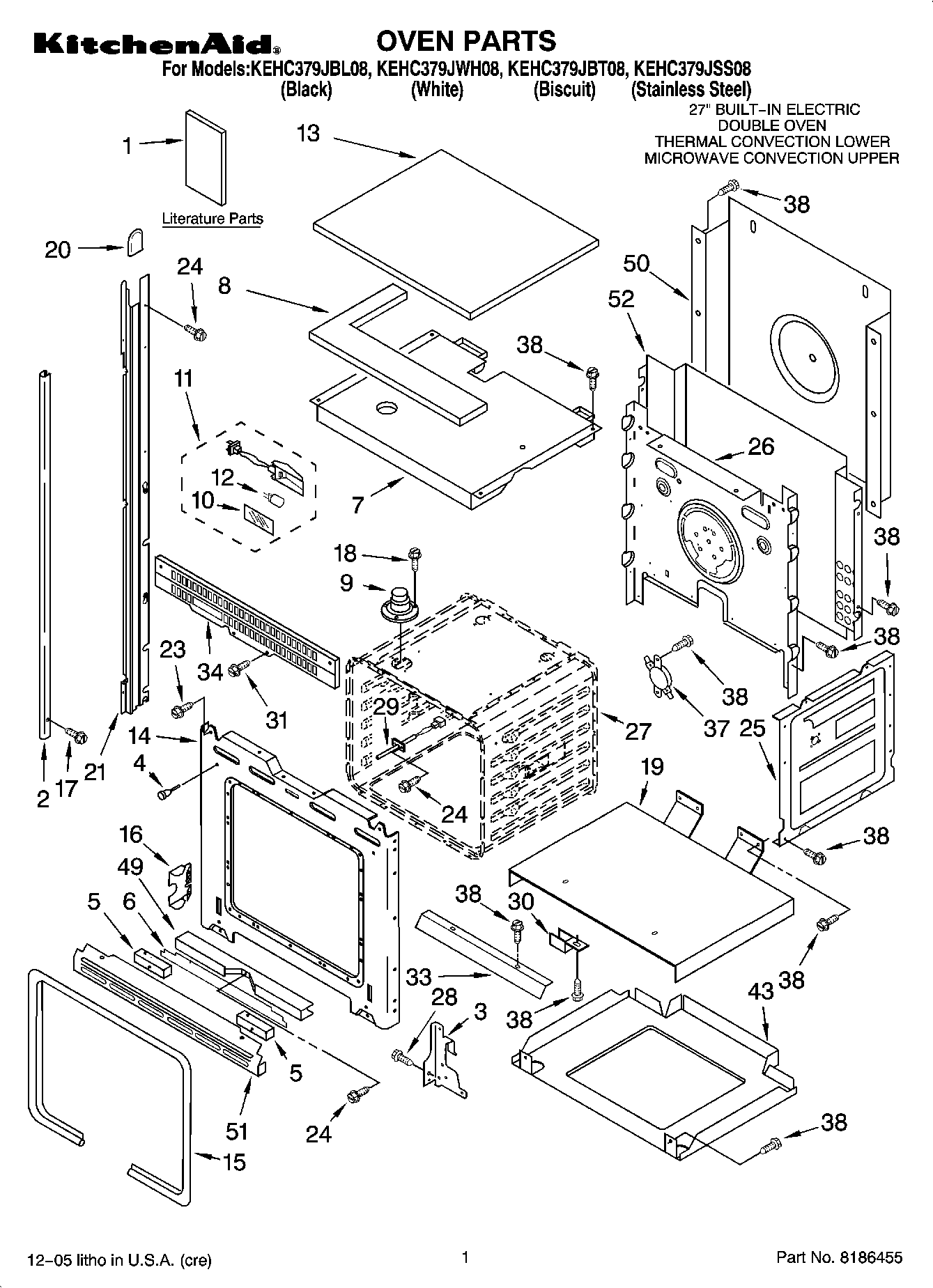

KEHC379JSS08 01 – OVEN PARTS

KEHC379JSS08 01 – OVEN PARTS

Written by

in

KEHC379JSS08 01 – OVEN PARTS

Products

PositionProduct
1Use & Care Guide (Oven)
1Label, Cooking Guide
1Safe Cooking Tips
1Safe Cooking Tips (French)
1Chart, High Speed Cooking
1Tech Sheet (Oven)
1Use & Care Guide (Microwave)
1Easy Set Guide
1Installation Instructions
1Cooking Guide (Lable)
2Trim, Side (LH Stainless Steel)
2Trim, Side (RH Stainless Steel)
2Trim, Side Right Hand (Biscuit)
2(Trim, Side Left Hand) (Biscuit)
2Trim, Side Right Hand (Black)
2(Trim, Side Left Hand) (White)
2Trim, Side Right Hand (White)
2(Trim, Side Left Hand) (Black)
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
6Insulation, Bottom Vent
7Top, Chassis
8WPL 4452492
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13WPL 4452491
14Frame, Front
15WP4455381 Whirlpool Door Gasket
164452152 Whirlpool Oven Mounting Bracket
17WP8281236 Whirlpool Screw
18SCREW
19Support, Insulation
20Cap, Spacer
21814376 Whirlpool Oven Rail Mount
21814375 Whirlpool Oven Rail Mount
23Screw
24WP4449154 Whirlpool Screw
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28WP4449743 Whirlpool Screw
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
31WP4450038 Whirlpool Screw
33Deflector, Vent
34WP8304106 Whirlpool Oven Vent
37WP9759243 Whirlpool Thermostat
38WP4449809 Whirlpool Screw
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WPL 4455146
51WPL 4455446
51Trim, Bottom (White)
51Trim, Bottom (Black)
52WPL 4451755
52WPL 4449315
52WPL 4450364
52WPL ARI85077A3
