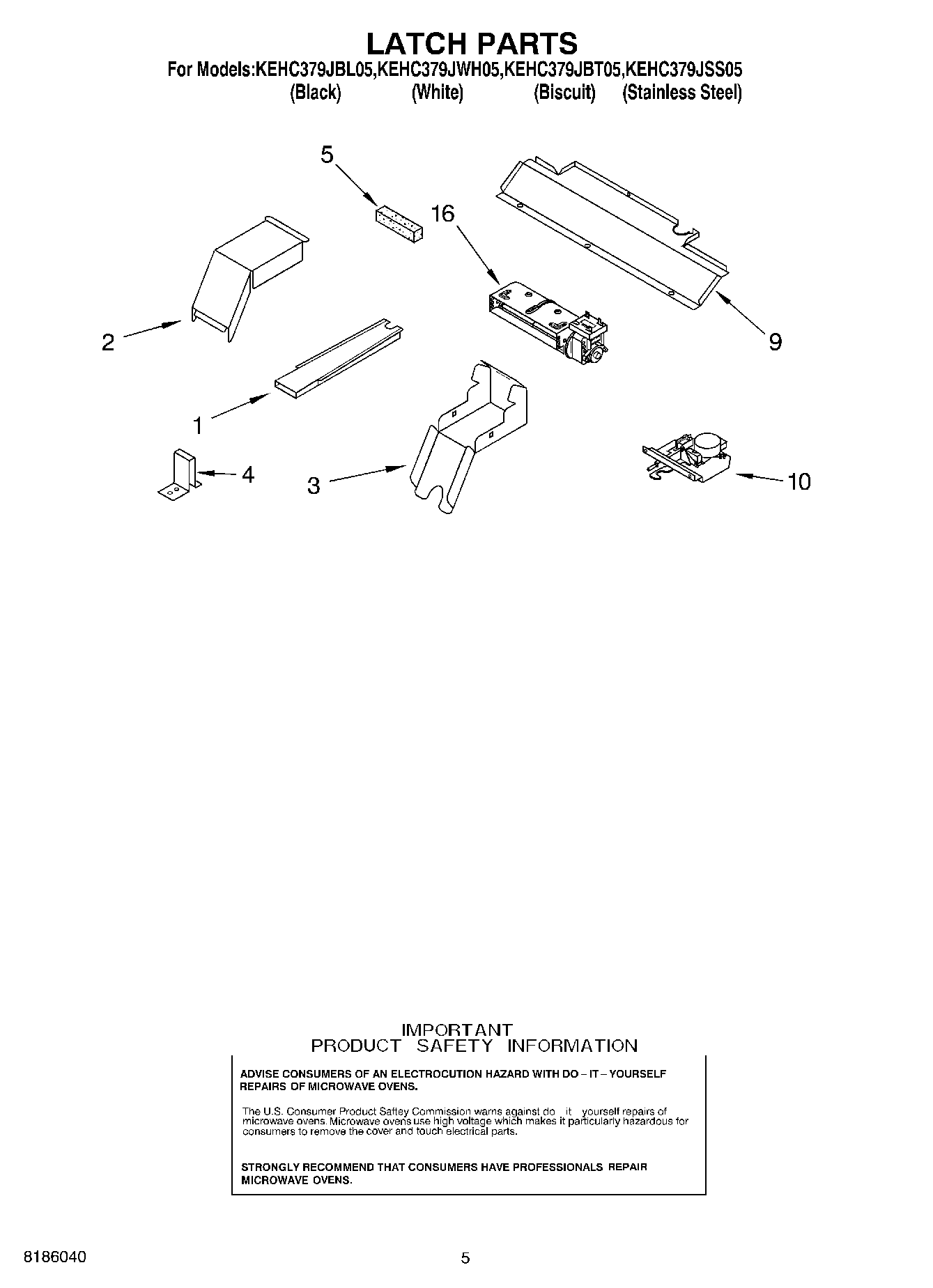

KEHC379JWH05 04 – LATCH PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	4455177 Whirlpool Oven Bottom Elbow
4	Bracket, Combo Chassis
5	W10491987 Whirlpool Foam Seal
9	WP4449809 Whirlpool Screw
9	Baffle, Rear
10	WP9760889 Whirlpool Door Latch
16	WPW10016550 Whirlpool Blower Cooling Fan
16	4455191 Whirlpool Oven Mounting Plate
16	Spacer, Foam
