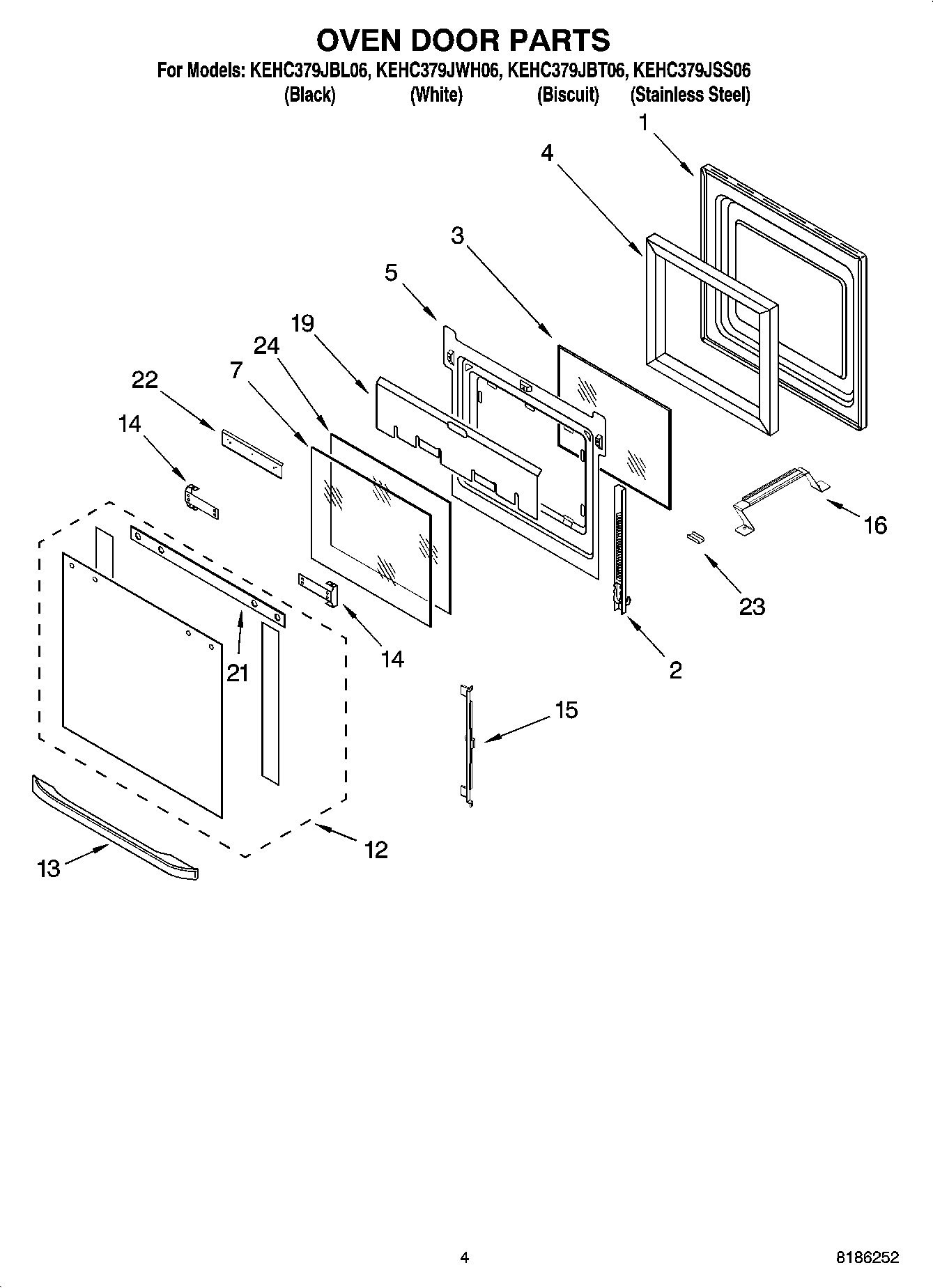

KEHC379JWH06 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	HINGE-DOOR
2	HINGE-DOOR LH/SS DOOR SPRING
2	WP9760571 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
2	WP9760572 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	Glass, Inner
12	Door Glass, Assy (Biscuit)
12	Glass, Outer (White)
12	WP4452315 Whirlpool Door Glass
12	Glass, Outer (Black)
13	Handle, Door (Biscuit)
13	Handle, Door (White)
13	Handle, Door (Black)
13	Door Handle (Stainless Steel)
14	Bracket, Handle (L.Hand)
14	4455803 Whirlpool Oven Bracket
14	WPW10132940 Whirlpool Dishwasher Screw
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	WP4449809 Whirlpool Screw
19	Shield, Heat
21	Seal, Top
22	Shield, Heat (Bottom)
23	RETAINER,GLASS CLIP (BISCUIT)
23	Retainer, Glass-Clip (Stainless Steel)
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
24	WP9759227 Whirlpool Glass Door
