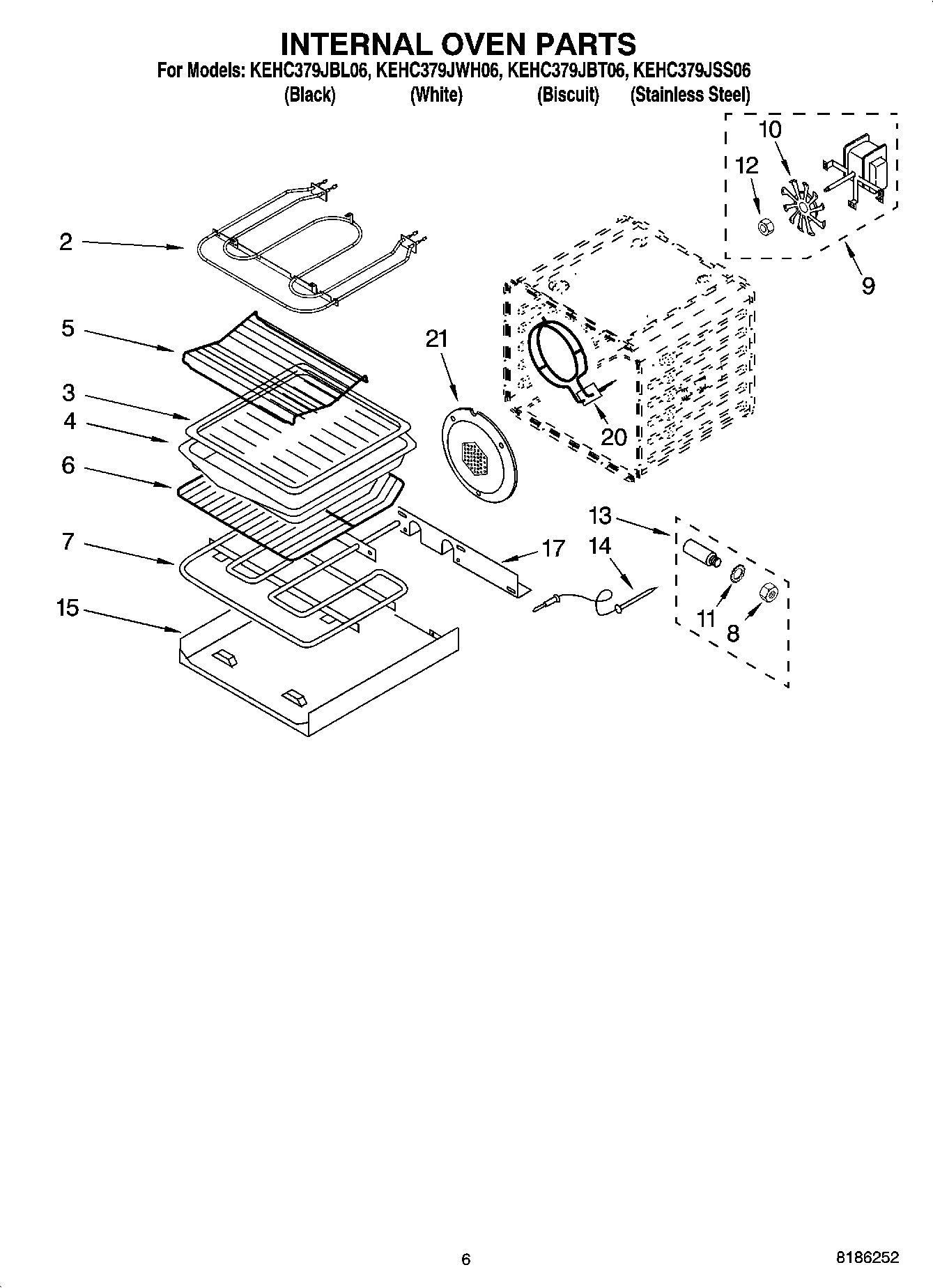

KEHC379JWH06 05 – INTERNAL OVEN PARTS

KEHC379JWH06 05 – INTERNAL OVEN PARTS

Written by

in

KEHC379JWH06 05 – INTERNAL OVEN PARTS

Products

PositionProduct
2WPW10207400 Whirlpool Broil Element
3WP3195996 Whirlpool Pan Grid
4W10737569 Whirlpool Broil Pan
5Rack, Roasting
6Pad, Rack
6Rack, Oven
74451175 Whirlpool Bake Element
8WP9755546 Whirlpool Locknut
9Motor Convection
10WP4452226 Whirlpool Convection Fan
11WP9755547 Whirlpool Lockwasher
12Nut
138186589 Whirlpool Jack Probe
14WP9755542 Whirlpool Oven Meat Probe
15Tray, Hidden Bake
17WP4449809 Whirlpool Screw
174450039 Whirlpool Oven Access Cover
20WP9760769 Whirlpool Element Assembly
21WPW10160821 Whirlpool Fan Cover
21WP4449154 Whirlpool Screw
