KEHC379JWH4 01 – OVEN, LITERATURE

KEHC379JWH4 01 – OVEN, LITERATURE

Written by

in

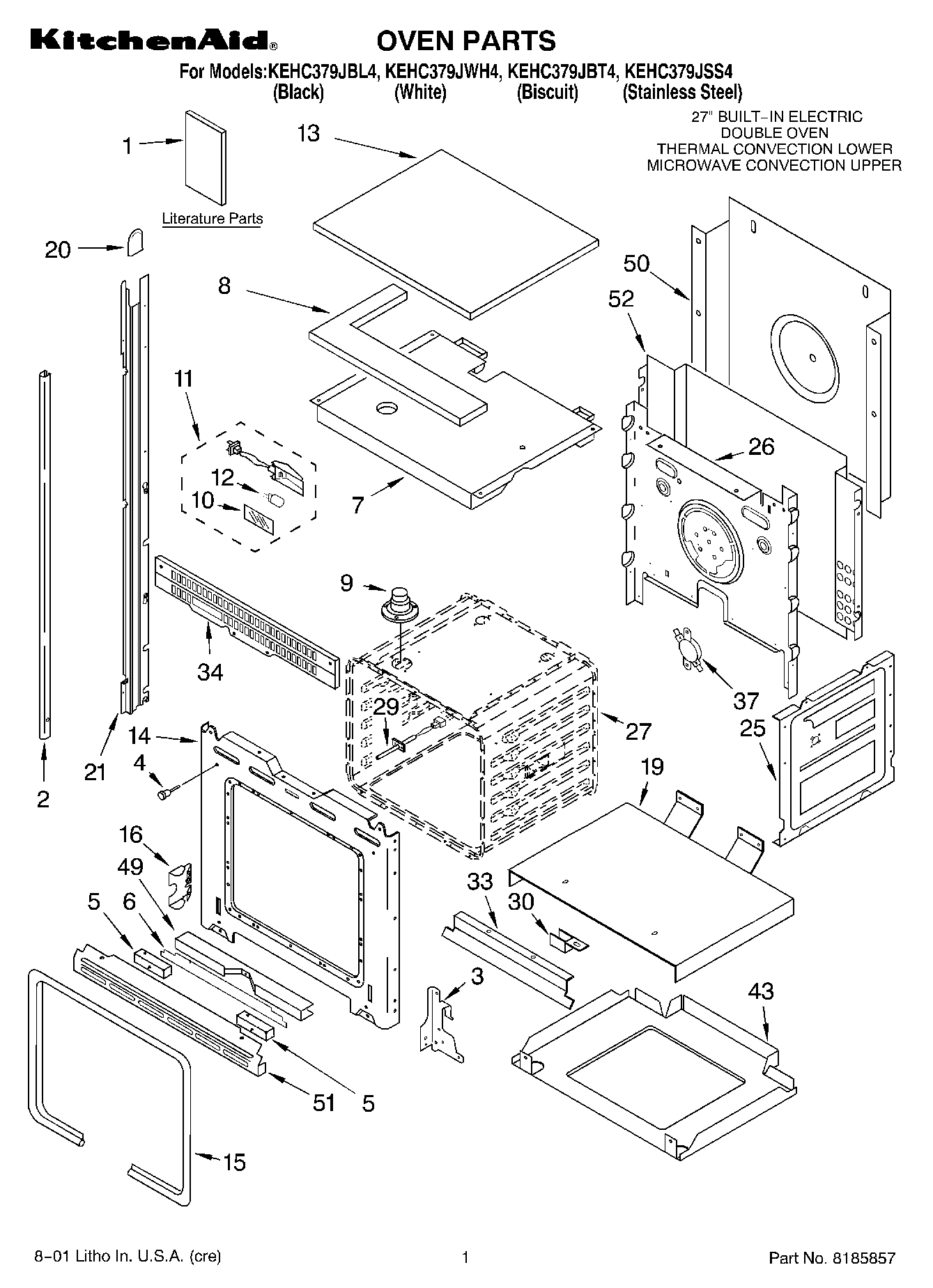

KEHC379JWH4 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Cooking Guide (Lable))
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide (Microwave))
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Label, Cooking Guide)
1Literature Parts (Easy Set Guide)
1Literature Parts (Tech Sheet (Oven))
1Literature Parts (Chart, High Speed Cooking)
2Trim, Side Right Hand (Black)
2Trim, Side Right Hand (Biscuit)
2(Trim, Side Left Hand) (White)
2Trim, Side Right Hand (White)
2(Trim, Side Left Hand) (Black)
2Trim, Side (LH Stainless Steel)
2Trim, Side (RH Stainless Steel)
2(Trim, Side Left Hand) (Biscuit)
2WP8281236 Whirlpool Screw
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
6Insulation, Bottom Vent
7Top, Chassis
8WPL 4452492
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13WPL 4452491
14Frame, Front
14Screw
15WP4455381 Whirlpool Door Gasket
164452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
20Cap, Spacer
21814376 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814375 Whirlpool Oven Rail Mount
25W10782197 Whirlpool Side Panel
26Back, Chassis
27WPL ARI85125A6
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
33Deflector, Vent
34WP3400832 Whirlpool Screw
34WP4450038 Whirlpool Screw
34WP8304106 Whirlpool Oven Vent
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
51WPL 4455146
51WPL 4455446
51Trim, Bottom (Screw)
51Trim, Bottom (Black)
51Trim, Bottom (White)
52WPL 4451755
52WPL 4449315
52WPL 4450364
