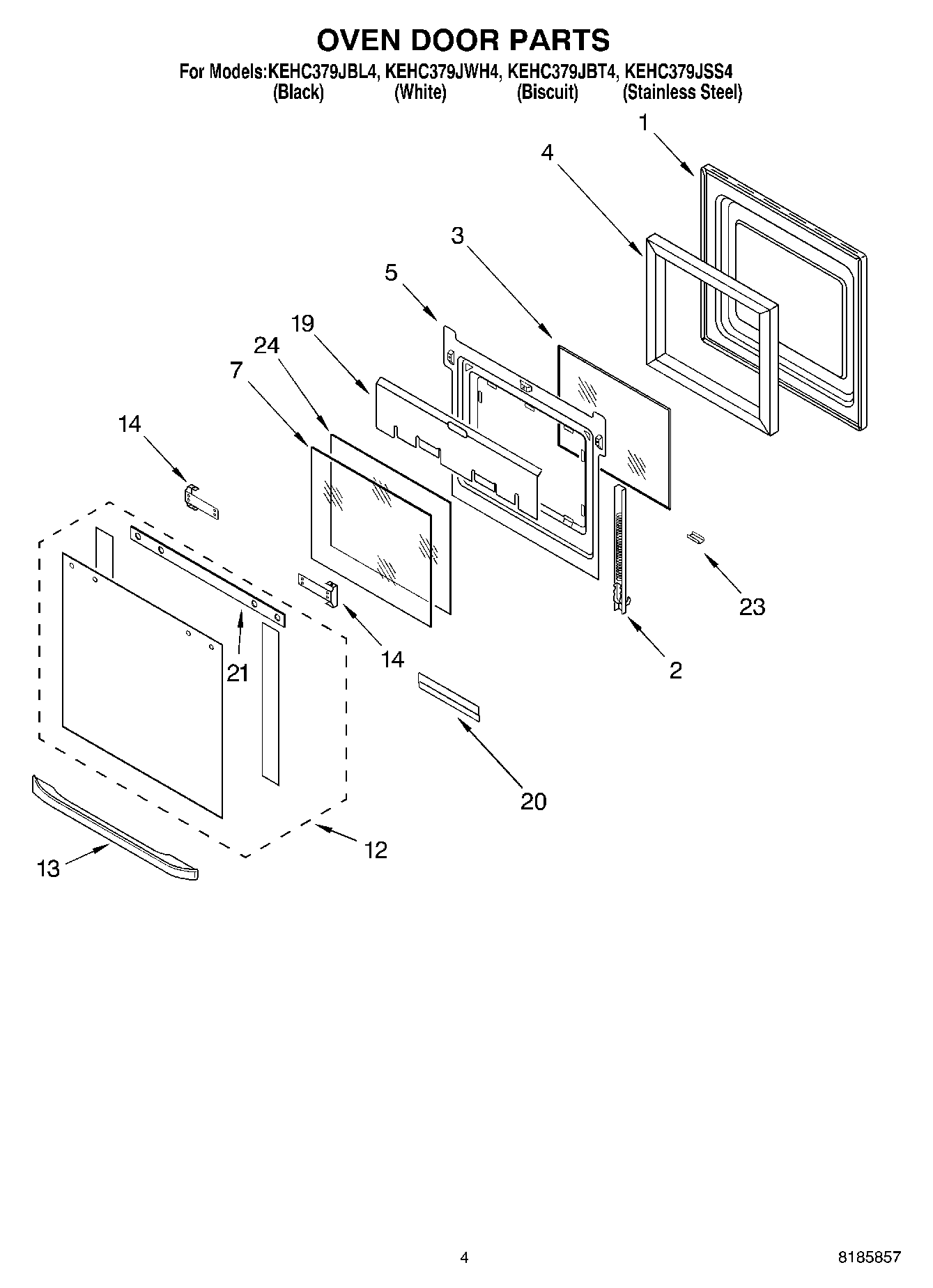

KEHC379JWH4 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP9760571 Whirlpool Door Hinge
2	WP9760572 Whirlpool Door Hinge
2	HINGE-DOOR LH/SS DOOR SPRING
2	WP4449743 Whirlpool Screw
2	HINGE-DOOR
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	WP4449257 Whirlpool Door Glass
12	Glass, Outer (White)
12	WP4452315 Whirlpool Door Glass
12	Door Glass, Assy (Biscuit)
12	Glass, Outer (Black)
13	Door Handle (Stainless Steel)
13	Handle, Door (White)
13	Handle, Door (Black)
13	Handle, Door (Biscuit)
14	Screw
14	4455803 Whirlpool Oven Bracket
14	Bracket, Handle Stainless Steel Model (Left Hand)
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Top
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	Retainer, Glass-Clip (Stainless Steel)
24	Glass, Inner
