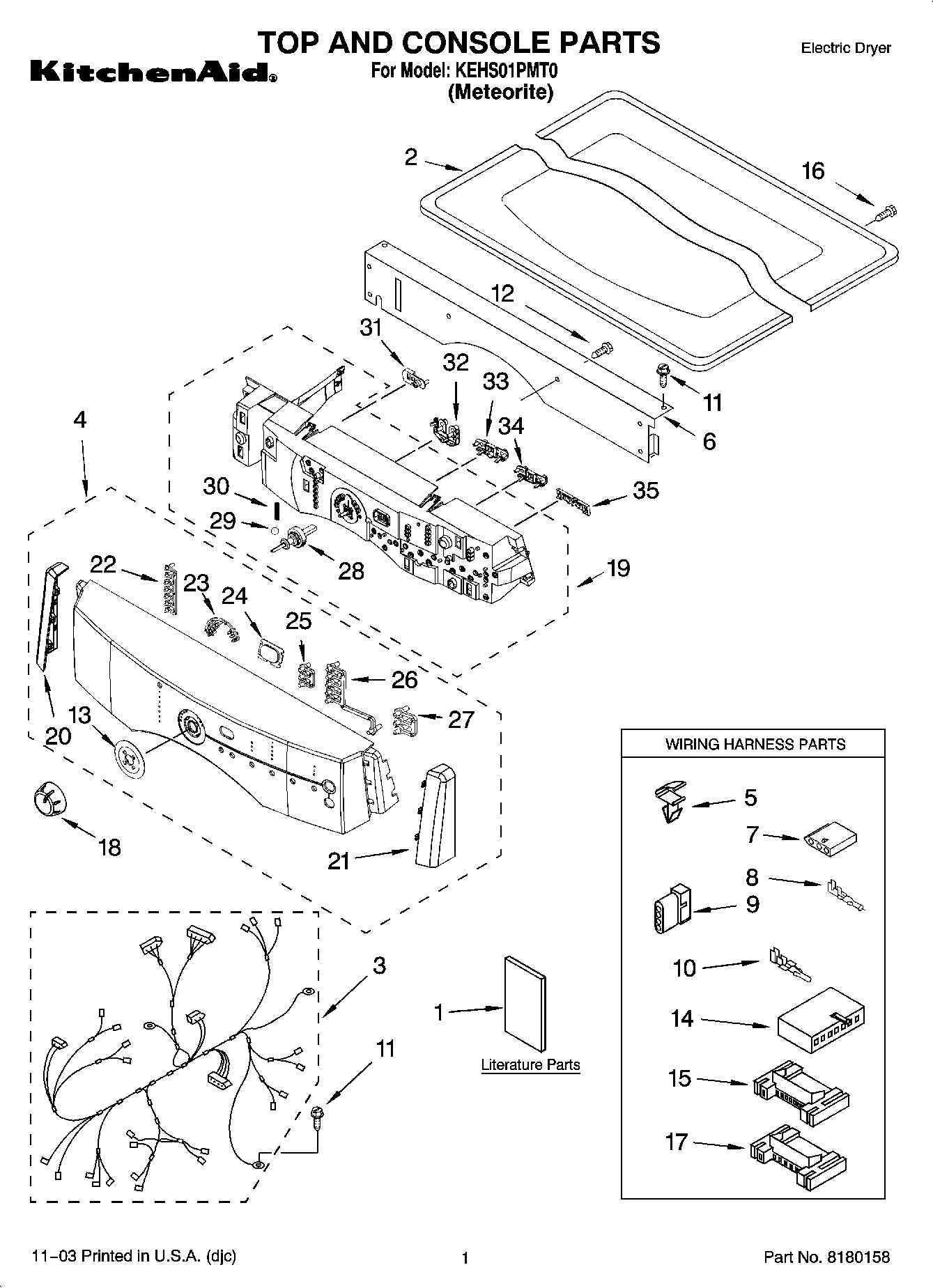

KEHS01PMT0 01 – TOP AND CONSOLE PARTS

KEHS01PMT0 01 – TOP AND CONSOLE PARTS

Written by

in

KEHS01PMT0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Use & Care Guide
1Tech Sheet
2Top (Meteorite)
3Harness, Main
4Panel, Console (Includes Bezel, Light Indicators & Endcaps) (Cashmere Metallic)
5WP3394427 Whirlpool Clip
6Bracket, Console
7353424 Whirlpool Connector
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10WP596797 Whirlpool Terminal
11WP488729 Whirlpool Refrigerator Door Screw
12WP488787 Whirlpool Refrigerator Screw
13Bezel, Cycle
143936150 Whirlpool Connector
153395683 Whirlpool Connector
16Screw, 8-18 x 1/2
172203186 Whirlpool Connector
18Knob, Assembly
19User Interface (Includes Illus. 28, 29 & 30)
20EndCap (LH) (Meteorite)
21EndCap (RH) (Meteorite)
22Light Indicator (Status)
23Light Indicator (Cycle)
24Lens, Display
25Light Indicator (Dryness Level)
26Light Indicator (Temperature)
27Light Indicator (XCare/EOC)
28Shaft, Cycle Selector
29Bearing, Knob
30Spring, Knob
31Pushbutton, (Control) (Cashmere Metallic)
32Pushbutton, (Drytime) (Cashmere Metallic)
33Pushbutton, (Dryness/Temp) (Cashmere Metallic)
34WPL 8542710
35WPL 8558454
