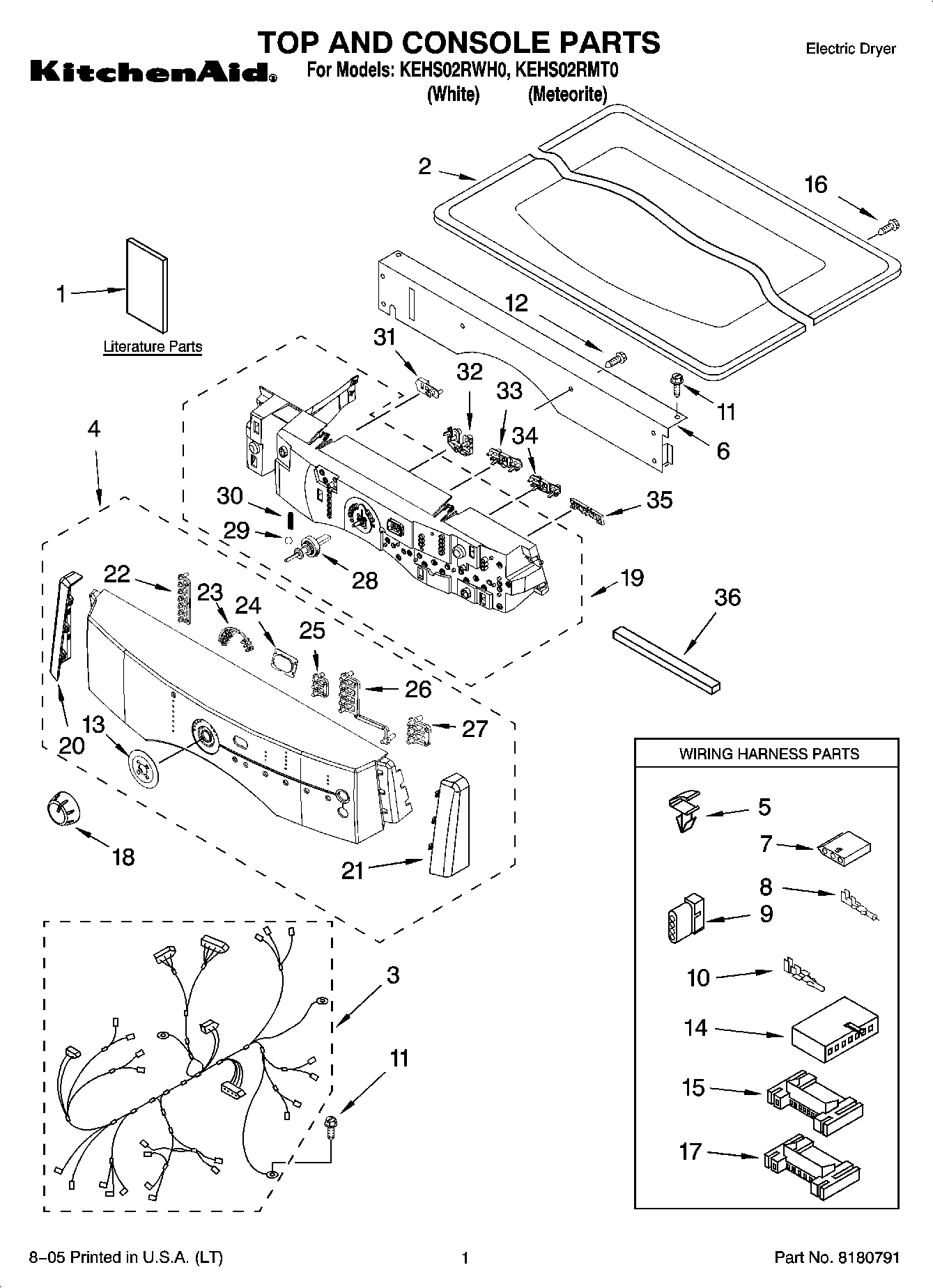

KEHS02RMT0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Tech Sheet
1	Use & Care Guide
1	GUIDE, QUICK START
2	Top (White)
2	Top (Meteorite)
3	Harness, Main
4	Panel, Console (Includes Bezel, Light Indicators & Endcaps) (Cashmere Metallic)
4	Panel, Console (Includes Bezel, Light Indicators & Endcaps) (White)
5	WP3394427 Whirlpool Clip
6	Bracket, Console
7	353424 Whirlpool Connector
8	WP94614 Whirlpool Terminal
9	3936144 Whirlpool Connector
10	WP596797 Whirlpool Terminal
11	WP488729 Whirlpool Refrigerator Door Screw
12	WP488787 Whirlpool Refrigerator Screw
13	Bezel, Cycle
14	3936150 Whirlpool Connector
15	3395683 Whirlpool Connector
16	Screw, 8-18 x 1/2
17	2203186 Whirlpool Connector
18	Knob, Assembly
19	User Interface (Includes Illus. 28, 29 & 30)
20	EndCap (LH) (White)
20	EndCap (LH) (Meteorite)
21	EndCap (RH) (White)
21	EndCap (RH) (Meteorite)
22	Light Indicator (Status)
23	Light Indicator (Cycle)
24	Lens, Display
25	Light Indicator (Dryness Level)
26	Light Indicator (Temperature)
27	Light Indicator (XCare/EOC)
28	Shaft, Cycle Selector
29	Bearing, Knob
30	Spring, Knob
31	Pushbutton, (Control) (Silver)
31	Pushbutton, (Control) (Cashmere Metallic)
32	Pushbutton, (Drytime) (Cashmere Metallic)
32	Pushbutton, (Drytime) (White)
33	Pushbutton, (Dryness/Temp) (Cashmere Metallic)
33	Pushbutton, (Dryness/Temp) (W
34	WPL 8542710
34	WPL 8562605
35	WPL 8558454
36	WPL 8066181
