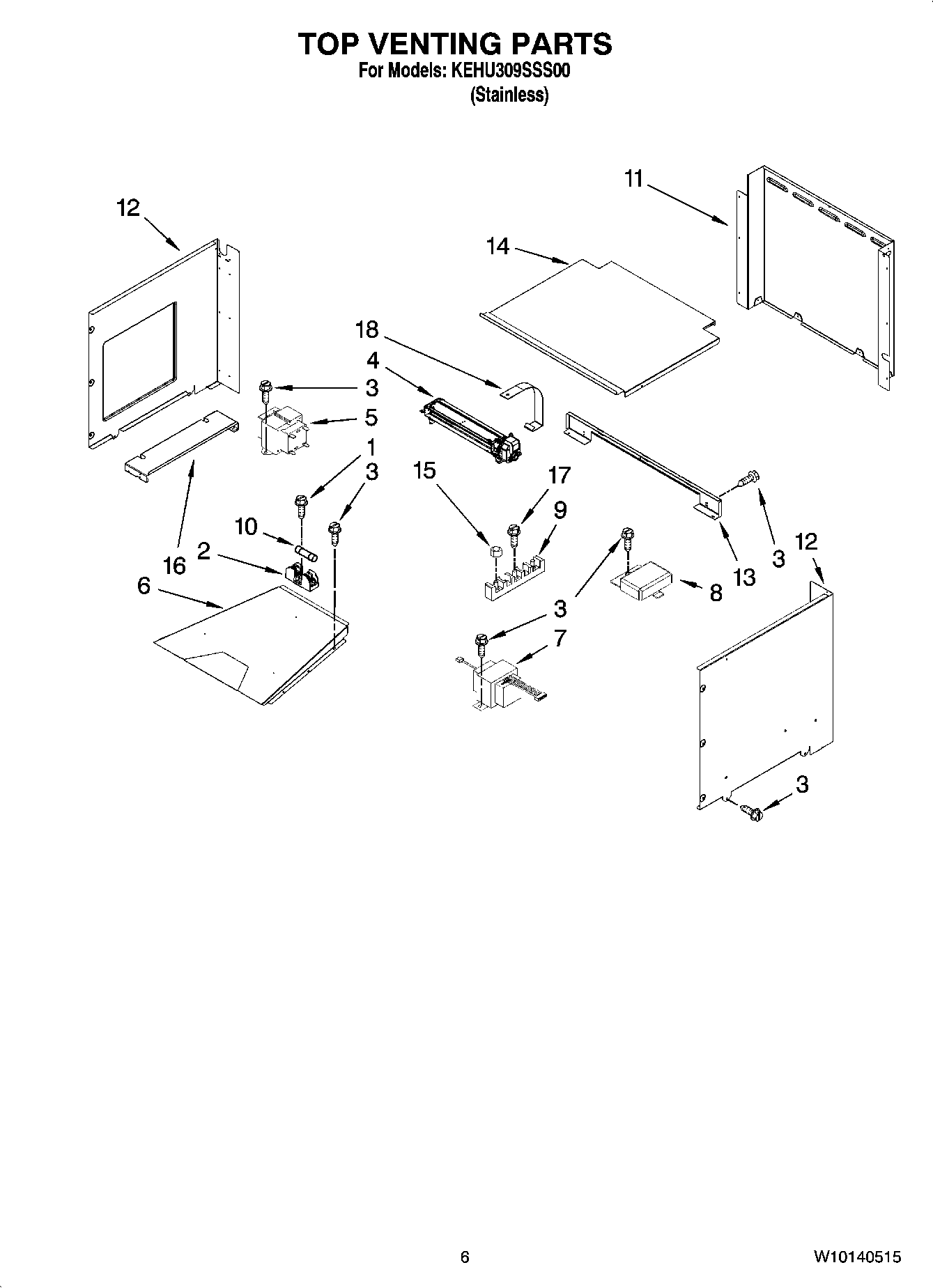

KEHU309SSS00 05 – TOP VENTING PARTS

KEHU309SSS00 05 – TOP VENTING PARTS

Written by

in

KEHU309SSS00 05 – TOP VENTING PARTS

Products

PositionProduct
1WP4449154 Whirlpool Screw
24454949 Whirlpool Oven Fuse Block
3WP4449809 Whirlpool Screw
4WP8303972 Whirlpool Blower
5WP9760588 Whirlpool Transformer
6Duct, Air Outlet
7Transformer, Control
88285593 Whirlpool Oven Wire Cover
9WP8203546 Whirlpool Terminal Block
10WPW10017410 Whirlpool Fuse
11Back Chassis Panel
12Side, Combo (Right)
12Side, Combo (Left)
13Back, Control
14Cover, Top Rear
15WP112432 Whirlpool Nut Assembly
16Support (2)
17Screw
18Strip, Blower (2)
