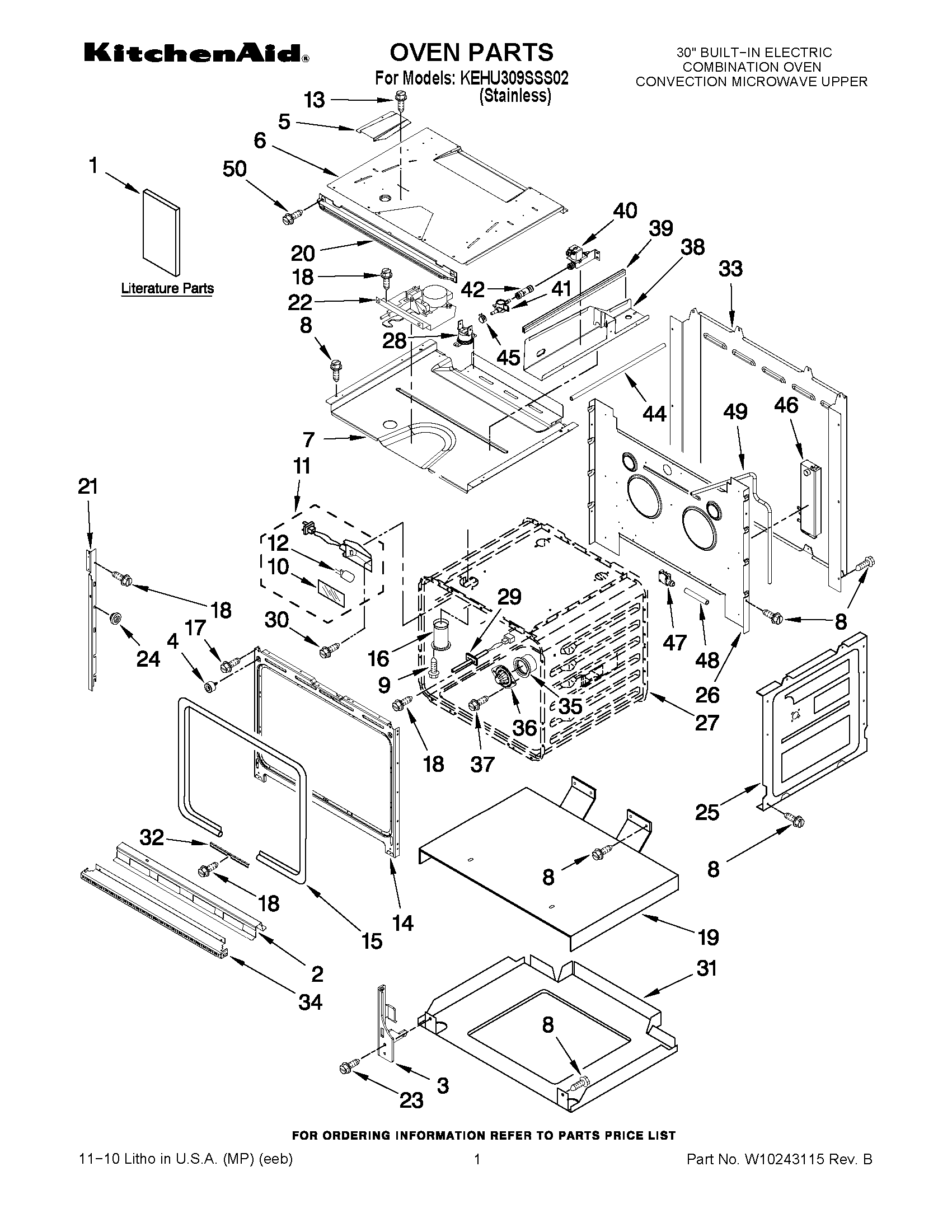

KEHU309SSS02 01 – OVEN PARTS

Products

Position	Product
NI	Insulation, Back
NI	Insulation, Wrap
1	Use & Care Guide (Oven)
1	Tech Sheet (French)
1	Installation Instructions
1	Tech Sheet (English)
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
1	Use & Care Guide (Microwave)
2	Bracket, Base
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	W10105790 Whirlpool Bumper
5	Exhaust,Vent Slope
6	Divider, Vent
7	Top Chassis
8	WP4449809 Whirlpool Screw
9	SCREW
10	Lens, Light
11	WP4448972 Whirlpool Oven Light
12	WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13	WP3400832 Whirlpool Screw
14	Frame, Front
15	WP8304493 Whirlpool Door Gasket
16	W10861715 Whirlpool Vent Tube
17	Screw
18	W10142289 Whirlpool Air Conditioner Screw
19	Support, Insulation
20	Center Vent
21	MOUNTING RAIL,SIDE (RIGHT)
21	MOUNTING RAIL,SIDE (LEFT)
22	W11029221 Whirlpool Door Latch
23	WP4449743 Whirlpool Screw
24	WP4448444 Whirlpool Grommet
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	CABINET (NOT A SERVICEABLE PART)
28	WP8304452 Whirlpool Range Thermal Fuse
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	4449748 Whirlpool Oven Screw
31	Base, Chassis
32	Retainer, Gasket
33	Cover, Back
34	Trim, Bottom Vent
35	Orifice, Boiler Slip Fit
36	Cover, Boiler Orifice
37	Screw
38	Enclosure
39	Gasket, Enclosure
40	Valve, Solenoid
41	WPW10076760 Whirlpool Sensor
42	BRACKET, THERMOSTAT
44	Tubing
45	WP489503 Whirlpool Refrigerator Clamp
46	8186352 Whirlpool Boiler
47	W10194453 Whirlpool Switch
48	Hose (includes clamp)
49	Tube-Copper, Steam
50	WP4450038 Whirlpool Screw
