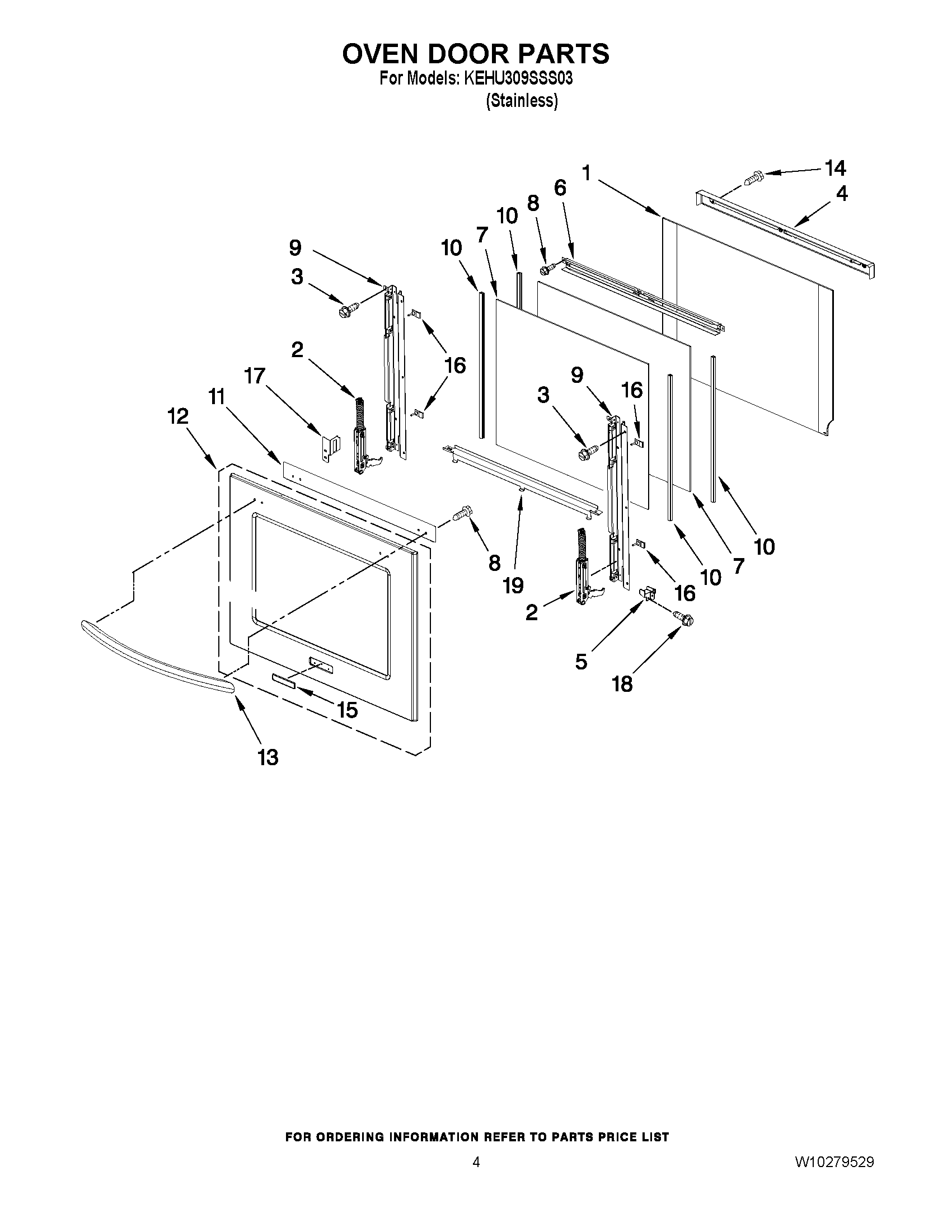

KEHU309SSS03 03 – OVEN DOOR PARTS

KEHU309SSS03 03 – OVEN DOOR PARTS

Written by

in

KEHU309SSS03 03 – OVEN DOOR PARTS

Products

PositionProduct
1W10755522 Whirlpool Door Glass
2Hinge, Door
3WP3196183 Whirlpool Screw
4Vent, Door Top
58304378 Whirlpool Oven Support Bracket
5Bracket, Door (Right)
68303746 Whirlpool Bracket Support
7Glass, Inner
8WP4449743 Whirlpool Screw
9Frame, Door Side
10W10754409 Whirlpool Seal
11Bracket, Handle
12Door Glass, Assembly
13DOOR HANDLE
15Badge (Stainless)
16Bumper, Glass
17COVER,HINGE (RIGHT)
17COVER,HINGE (LEFT)
18WPY706189 Whirlpool Stove Screw
19Bracket, Air Glass
