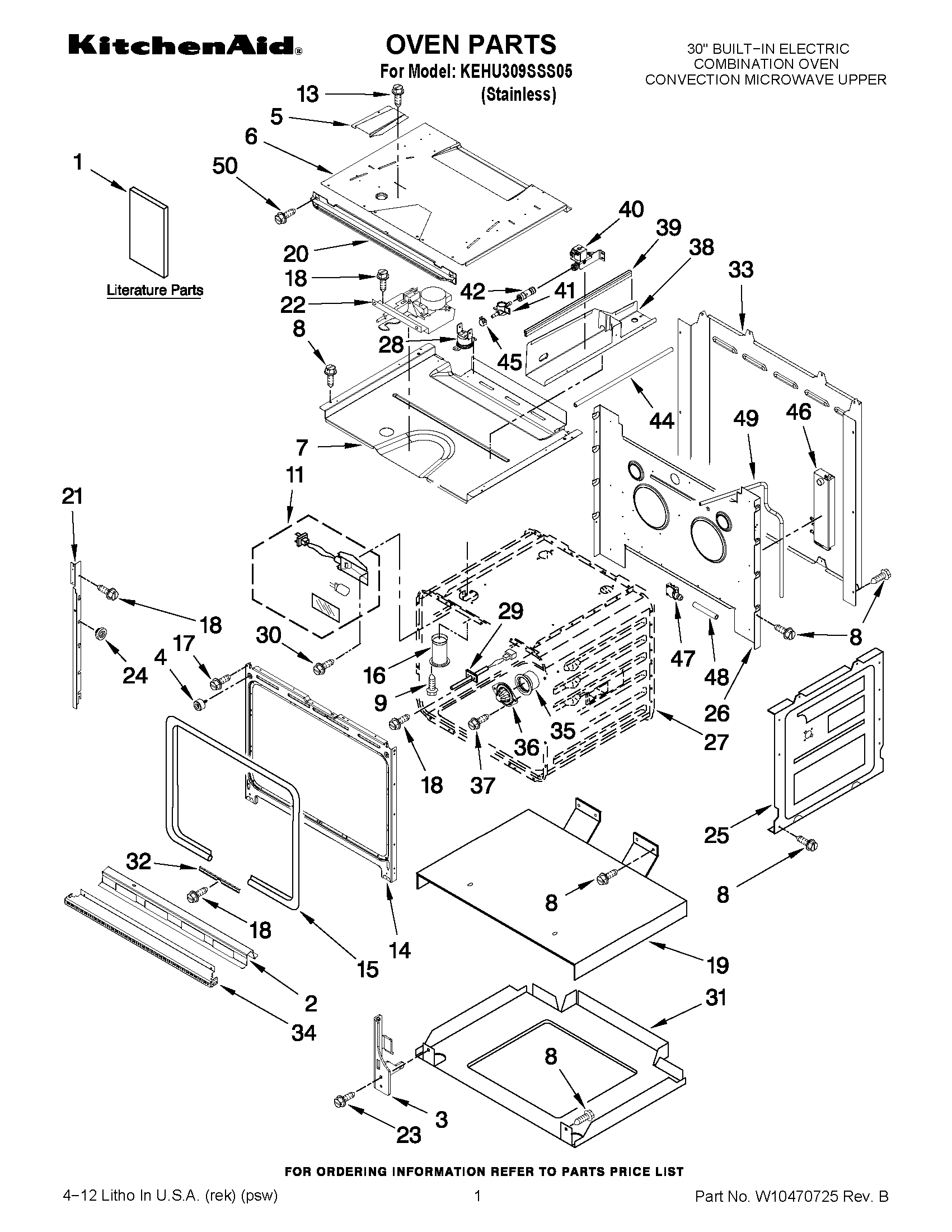

KEHU309SSS05 01 – OVEN PARTS

KEHU309SSS05 01 – OVEN PARTS

Written by

in

KEHU309SSS05 01 – OVEN PARTS

Products

PositionProduct
NIInsulation, Back
NIInsulation, Wrap
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1Use & Care Guide (Microwave)
1Tech Sheet (English)
1Use & Care Guide (Oven)
1Installation Instructions
1Tech Sheet (French)
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
2Bracket, Base
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
4W10105790 Whirlpool Bumper
5Exhaust,Vent Slope
6Divider, Vent
7Top Chassis
8SCREW
9SCREW
11WP4448972 Whirlpool Oven Light
13WP3400832 Whirlpool Screw
14Frame, Front
15WP8304493 Whirlpool Door Gasket
16W10861715 Whirlpool Vent Tube
17Screw
19Support, Insulation
20Center Vent
21MOUNTING RAIL,SIDE (LEFT)
21MOUNTING RAIL,SIDE (RIGHT)
22W11029221 Whirlpool Door Latch
23WP4449743 Whirlpool Screw
24WP4448444 Whirlpool Grommet
25W10782197 Whirlpool Side Panel
26Back, Chassis
27CABINET (NOT A SERVICEABLE PART)
28WP8304452 Whirlpool Range Thermal Fuse
29WPW10131825 Whirlpool Oven Temperature Sensor
304449748 Whirlpool Oven Screw
31Base, Chassis
32Retainer, Gasket
33Cover, Back
34TRIM, BOTTOM VENT
35Orifice, Boiler Slip Fit
36Cover, Boiler Orifice
37Screw
38Enclosure
39Gasket, Enclosure
40Valve, Solenoid
41WPW10076760 Whirlpool Sensor
42BRACKET, THERMOSTAT
44Tubing
45WP489503 Whirlpool Refrigerator Clamp
468186352 Whirlpool Boiler
47W10194453 Whirlpool Switch
48Hose (includes clamp)
49Tube-Copper, Steam
50WP4450038 Whirlpool Screw
