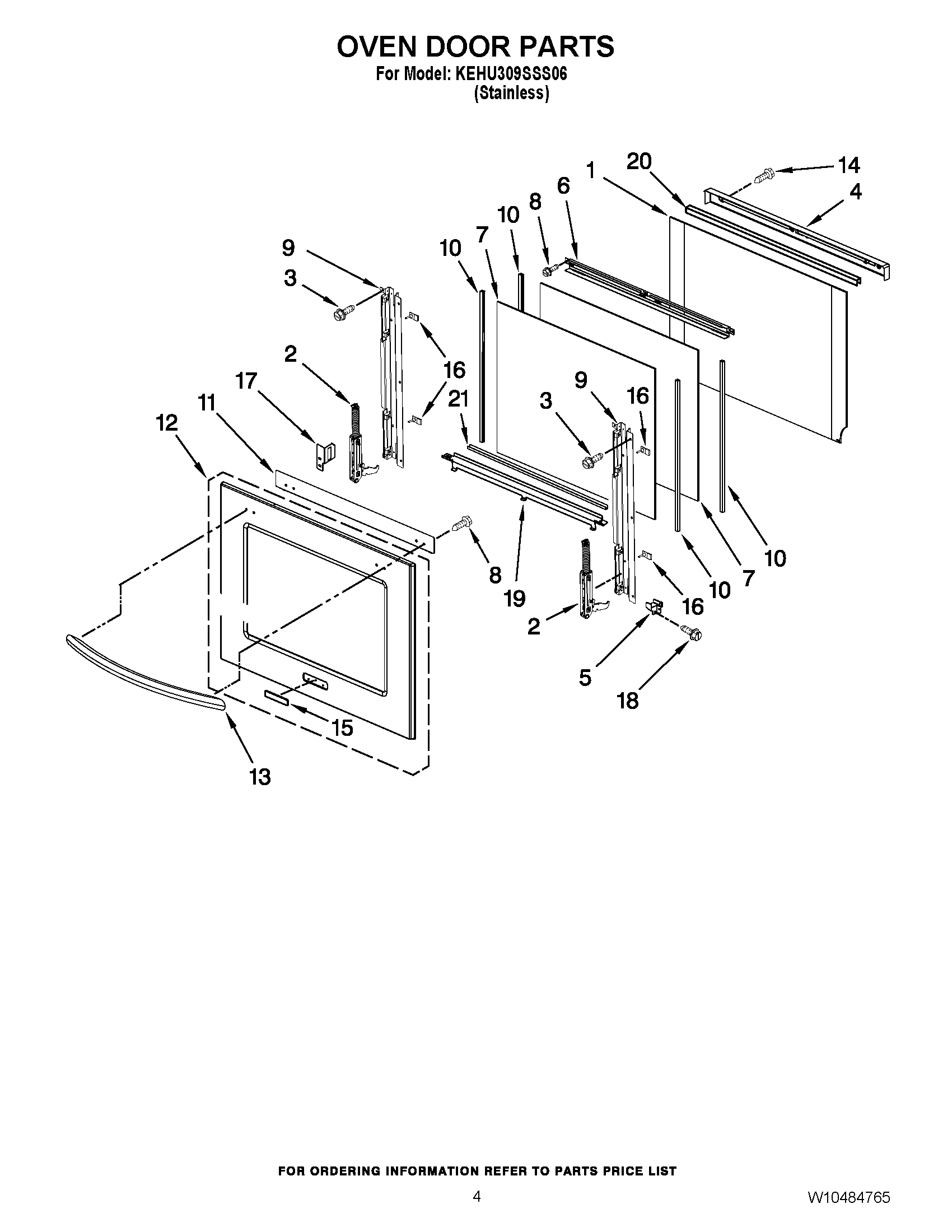

KEHU309SSS06 03 – OVEN DOOR PARTS

Products

PositionProduct
1W10755522 Whirlpool Door Glass
2Hinge, Door
3WP3196183 Whirlpool Screw
4Vent, Door Top
58304378 Whirlpool Oven Support Bracket
5Bracket, Door (Right)
68303746 Whirlpool Bracket Support
7Glass, Inner
8WP4449743 Whirlpool Screw
9Frame, Door Side
10W10754409 Whirlpool Seal
11Bracket, Handle
12Door Glass, Assembly
13DOOR HANDLE
15WPW10243391 Whirlpool Refrigerator Nameplate
16Bumper, Glass
17COVER,HINGE (RIGHT)
17COVER,HINGE (LEFT)
18WPY706189 Whirlpool Stove Screw
19Bracket, Air Glass
20W10754473 Whirlpool Seal
21GASKET, DOOR
